REQUIRED PARTS AND TOOLS
Page 11
3.5 PUSH-PULL CABLE
Use Type 33C push-pull cable to the transmission clutch selector lever.
When measuring cable length, measure cable from end of thread to
end of thread.
Many transmissions are delivered with factory push-pull cable mount-
ing kits. If mounting kit is not included, contact the transmission
dealer for a Factory Cable Connection Kit or refer to the Universal
Mounting Figure in the Push-Pull Cable Installation Section of this
manual.
3.6
WIRE HARNESS
NOTE: If 43C cable is required for this application, a 43C Cable Conversion Kit is required.
These Kits are available from ZF Mathers, LLC. Refer to Appendix A - 43C Cable Con-
version Kit Manual for more information.
Harnesses are Available from ZF Mathers, LLC.
Select from Appendix A – Parts List the correct Har-
ness for your System.
Throttle Wire Harness
(Processor to Engine Interface)
Serial Communication Wire Harness (Twin Screw) (Proces-
sor to Processor)
The above Cable Harnesses use one or both of the
plug connector types detailed in Figure 5:.
When connecting the plugs, ensure that the release
button or buttons are depressed and held
until plug is
fully connected or disconnected.
Connecting or disconnecting plugs without depressing
and holding the release button or buttons will damage
the plug.

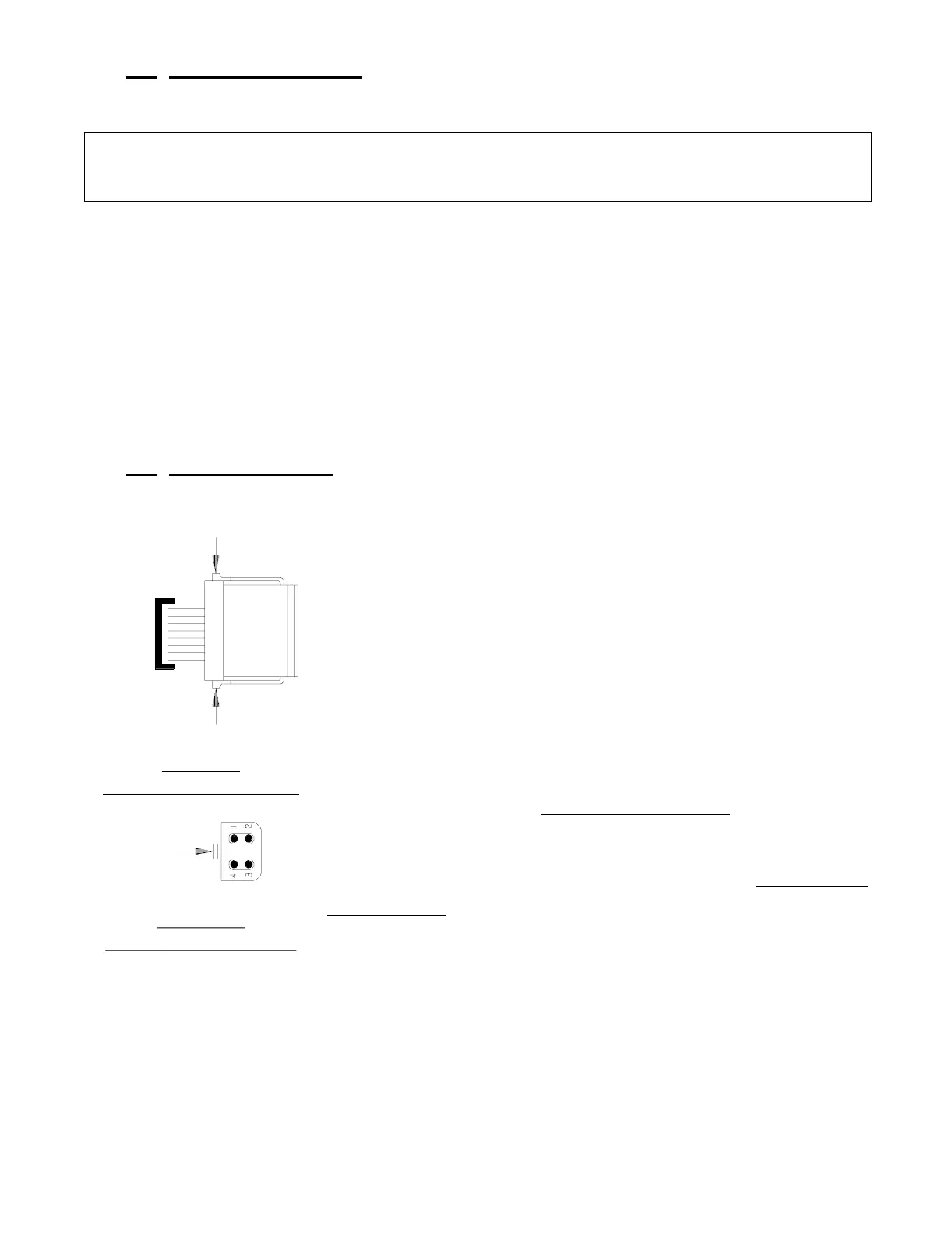

Figure 5: Wire Harness Connection Plug
Cable
Depress & Hold
Depress & Hold
11230-
Detail I
Large Plug Side View
Depress
&
Hold
11232
Detail II
Small Plug End View
To Next Page
