DIP SWITCH SET-UP PROCEDURES
Page 31
•Refer to Figure 14:, page 25, for the location of the Dip
Switch.
C) Store the value that has been set by following Section 6.1.6,
page 27.
6.6
THROTTLE PAUSE
Hydraulic actuated clutches require 1/2 second, or longer, following
clutch selector lever movement before there is clutch plate contact.
Some clutches may build clutch pressure more slowly. This could
mean high engine RPM before clutch engagement. The optional
Clutch Oil Pressure Switch will ensure sufficient clutch oil pressure,
before allowing speed to the governor.
Throttle Pause is preset at the Factory for 0.5 second.

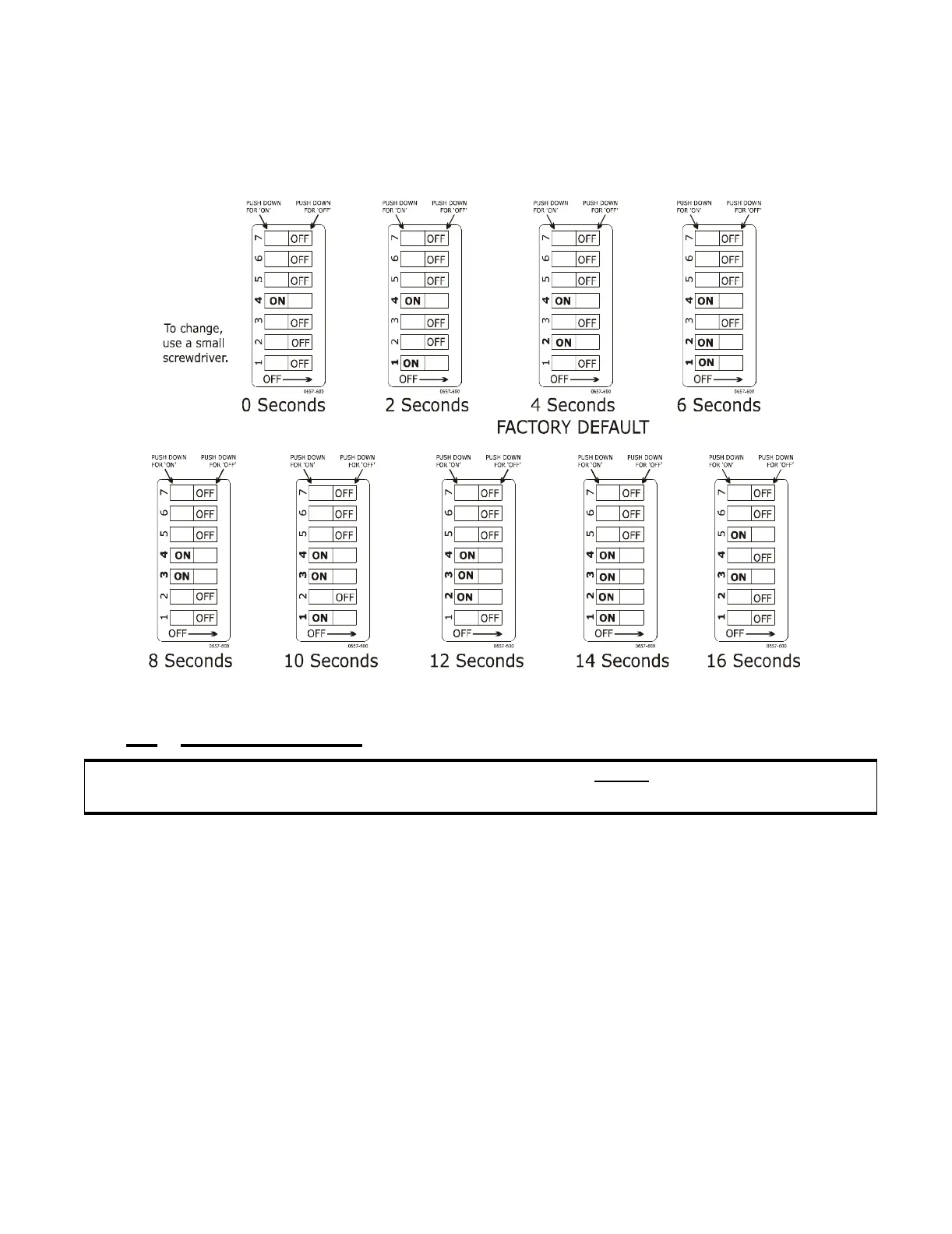

Figure 21: Dip Switch Setting 0 - 16 Seconds Clutch Delay
CAUTION: The setting on all Processors Main Circuit Boards MUST be set the same for Multi-
Screw applications.
