Page 7
ZF Mathers, LLC
1415 Pacific Drive
Burlington WA 98233-3103 U.S.A.
800-546-5455 / 360-757-6265
Fax: 360-757-2500
MMC-307 Rev.C 6-01
Standard Cable Connections
A) Remove the bottom cover from the Control Head.
B) Insert electrical cable through watertight cable grip(s) in Control Head bottom cover.
C) Strip back the PVC cover on the shielded cable approximately 2"
(50mm).
D) Strip and cut off the shielding and drain wire flush with the end of the PVC cover (the
drain wire at the Control Head is not connected to ground).

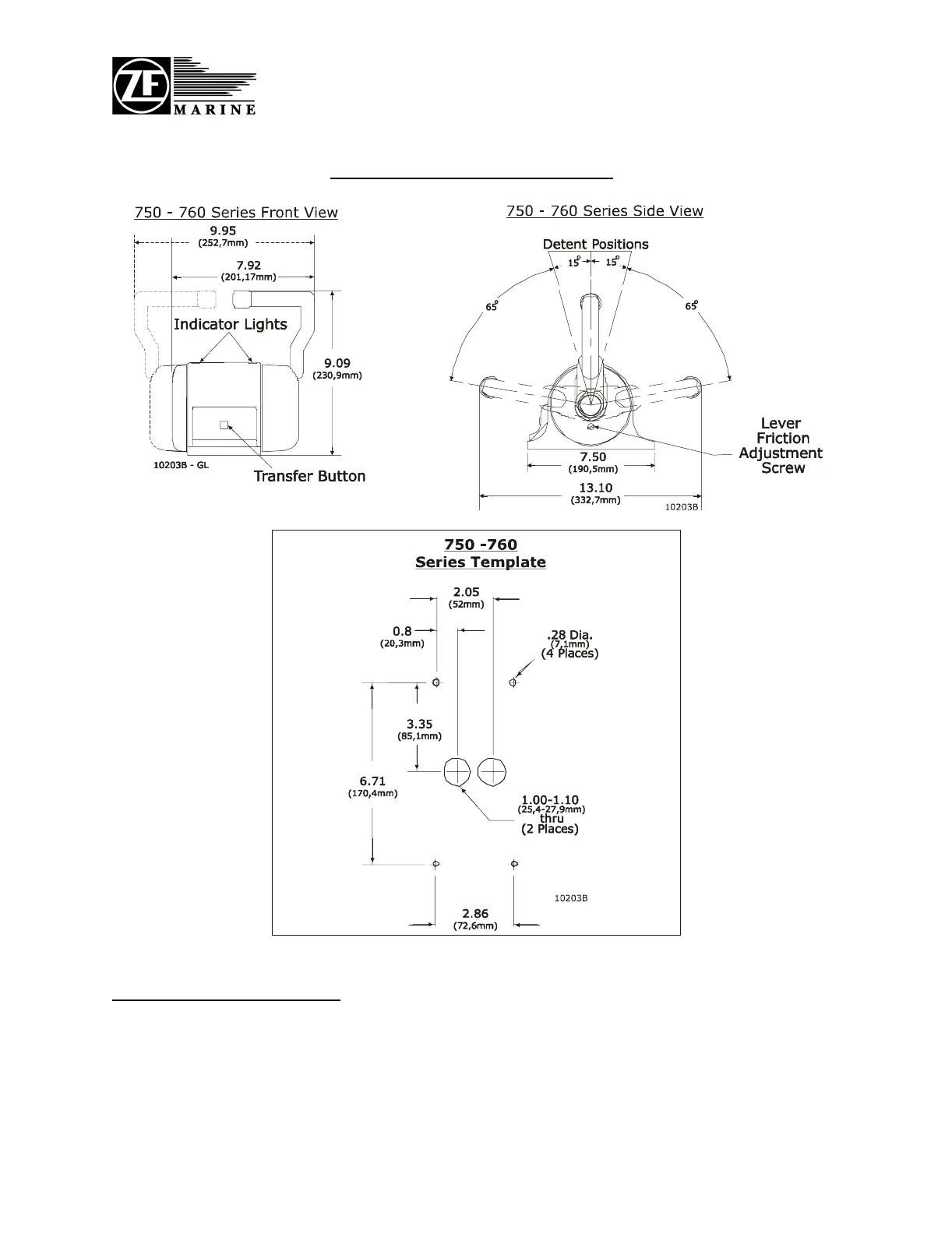

700 Series Control Head Sheet
To Next Page
