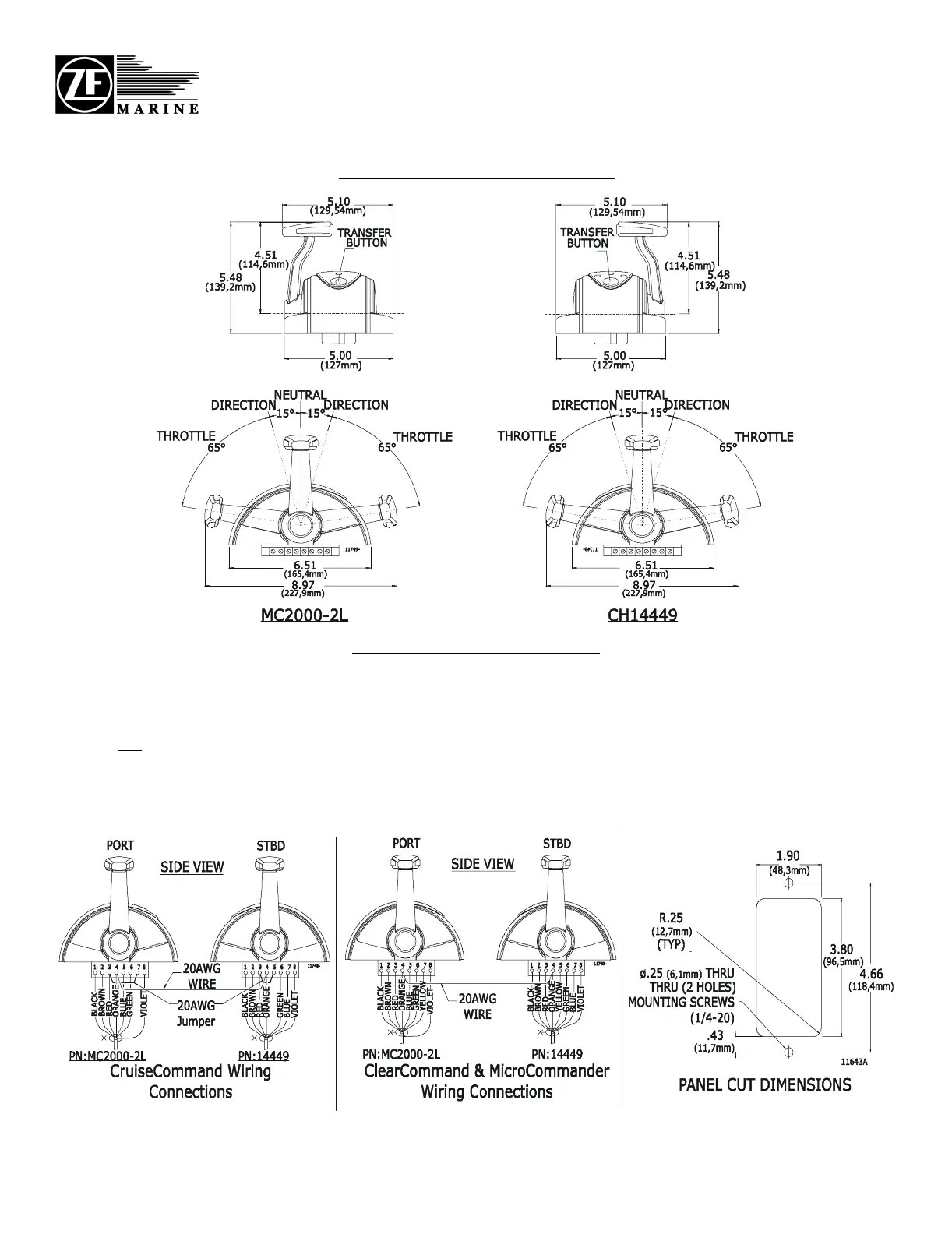

Standard Cable Connections
Select the desired mounting locations and drill holes per template. Run cables between Actuator/Processor and
Control Head. At the Control Head, strip back the PVC cover on the shielded cable approximately 2" (50mm).
Strip and cut off the shielding and drain wire flush with the end of the PVC cover (the drain wire at the Control
Head is not connected to ground). Strip 3/8" (9,5mm) insulation off each wire. Twist the individual strands of the
wires to minimize fraying. Crimp a locking fork terminal (included with each Control Head) to each of the con-
ductors. Make connections to the Control Heads for MicroCommander, ClearCommand, and CruiseCommand
as shown below.
