ZSK JAFA - Moving and Installation Location

127
Unloading, unpacking and handling

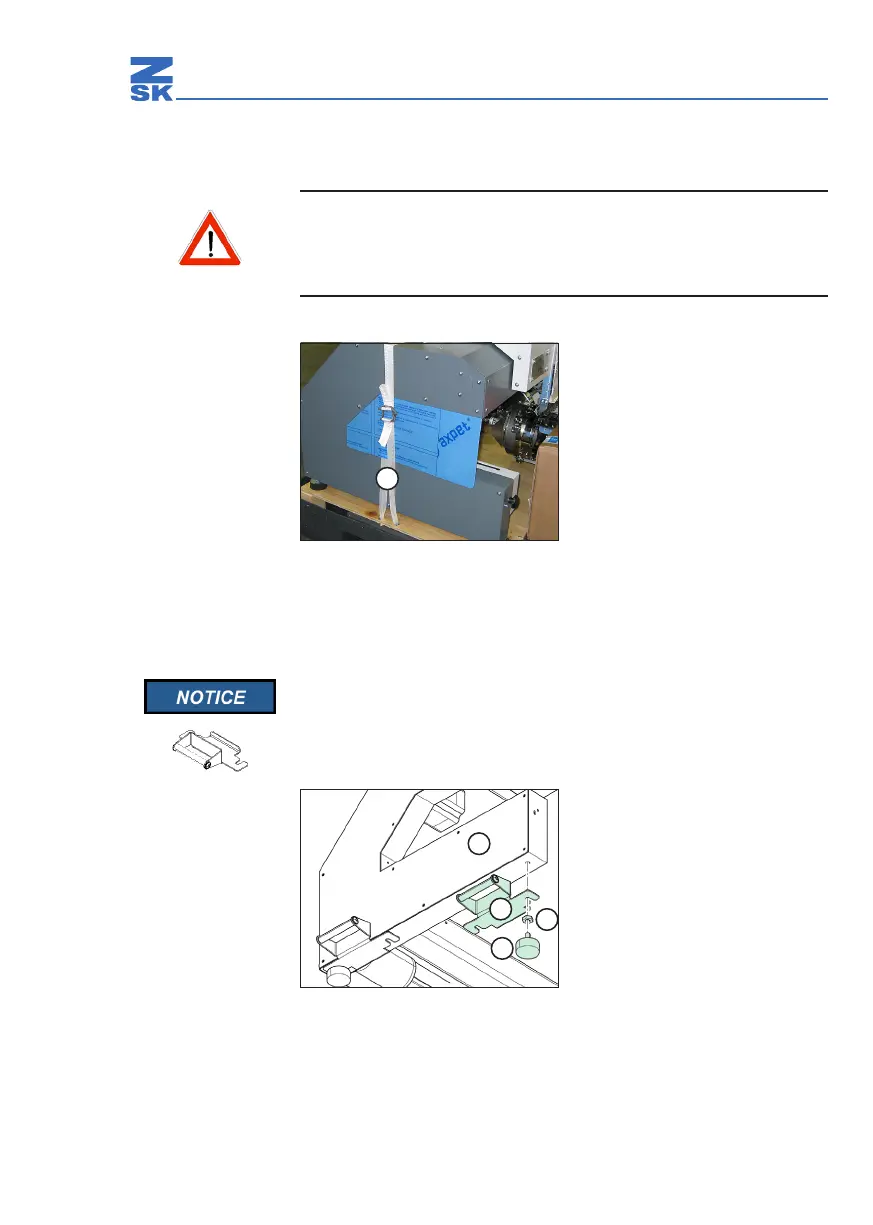

2.4 Moving to the installation location
For safety reasons, if the machine is delivered in a transpor
crate, move the machine to the installation location with a forklift
or stacker truck before detaching it from the oor of the crate if
possible.
Cut through and remove the lashing
straps (1), that secure the control
cabinet and machine to the pallet.
Abb. 7: Removing lashing straps
2.5 Attaching carrying handles (4x)
If the machine is being delivered in a transport crate, the machine
carrying handles are detached for space reasons. The handles form
part of the delivery scope.
Slacken o nut (3) on machine foot
(4) and create a gap between the nut
and the frame.
Insert carrying handle (2) between
frame (1) and nut (3) into contact with
the frame.
Make nut (3) tight against the carrying
handle.
Abb. 8: Installing carrying handles
(view from below)
Attach a carrying handle to each corner of the frame.
1
1
2
3
4
