Unloading, unpacking and handling
2.6 Casters (optional)
Slacken o and remove bolt (1)
Attach caster (2) and loosely fasten
screw (4).
Insert and tighten screw (3).

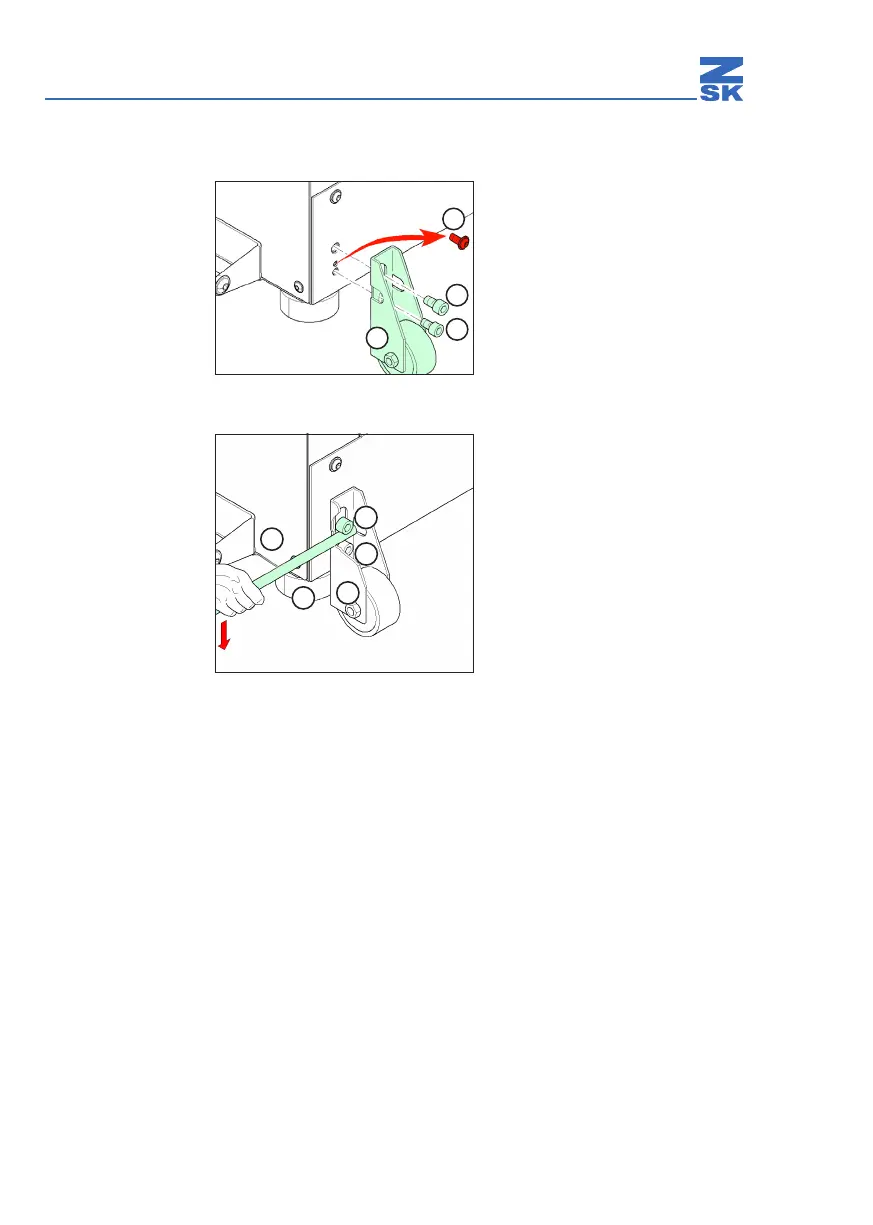

Abb. 9: Installing casters, illustration: back of machine, left
Push bar (1) through the opening in
the side of caster (2) so that it rests
underneath the head of top screw (3).
Apply downward pressure to bar (1)
until machine foot (5) is raised.
Tighten screw (4).
Repeat this procedure on the other
side.
Abb. 10: Aligning caster (section view)
After moving the machine
Slowly slacken o screws (4).
Ö The mahine feet are lowered to the oor.
Detach screws (4), (5) and casters (2).
Insert bolt, see (Abb. 9) item (1).
