134
Setting up and aligning

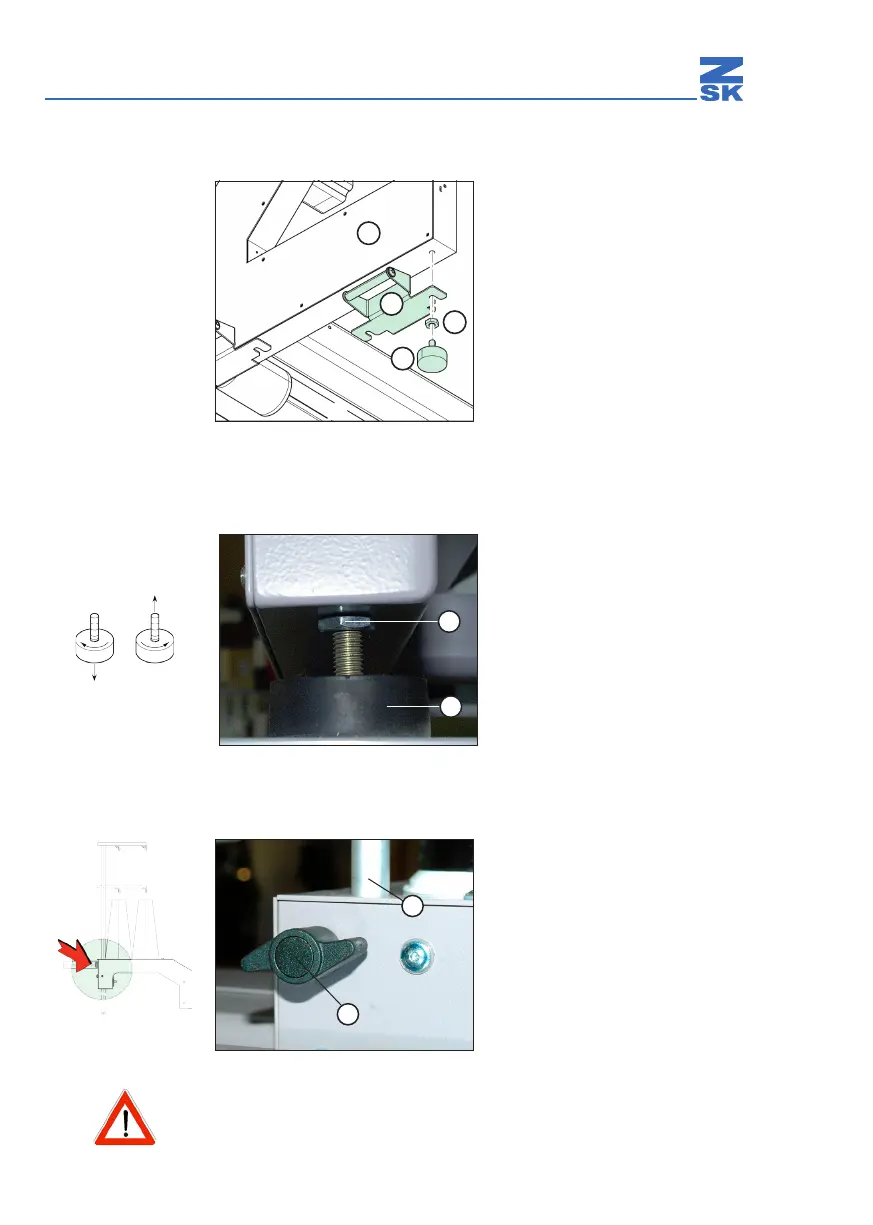

3.3 Detaching carrying handles
Slacken o nut (3) on machine foot
(4) and create a gap between the nut
and the frame.
Take out carrying handle (2)
Tighten nut (3) against frame (1) so
that it is hand tight.
Detach the carrying handle from each
corner of the frame.
Abb. 20: Detaching carrying handles (view from below)
3.4 Aligning machine feet
Slacken o nut (1)
Rotate machine foot (2) to the desired
position (see sketch)
Each time it is installed, distribute the
load between all the machine feet and
align the machine.
Tighten nut (1).
Abb. 21: Machine foot, adjusting
3.5 Adjusting yarn rack (e.g. FA head)
Slacken o screws (2).
Adjust yarn rack (1).
Tighten screws (2).
Abb. 22: Yarn rack, adjusting height
If the yarn rack is not moved to the top position, an obstruction can
occur during a color change and the machine can be damaged .
1
2
3
4
1
2
1
2
