6.1.2 Dismantling work table
Slacken o and remove screws (1)
(left/right).
Pull out work table (2) to the front and
set it down safely.
Insert and tighten screws (1).

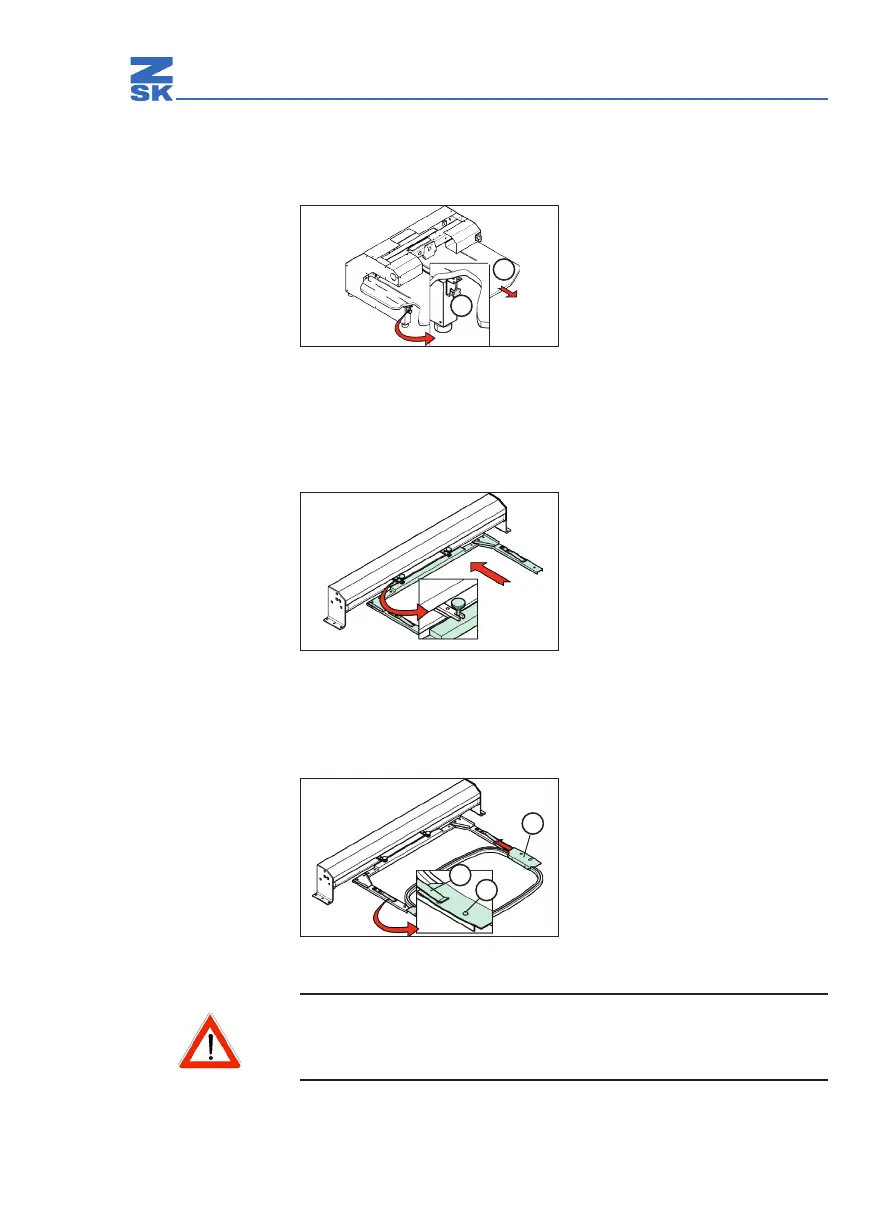

Abb. 37: Removing work table
6.1.3 Installing cylinder arm frame holder
Tighten screws (1) in cylinder arm
frame holder (2) about 2 turns.
Slide cylinder arm frame holder (2)
underneath carriage support (3).
Tighten screws (1).
Abb. 38: Installing cylinder arm frame holder
6.1.4 Inserting frame
Place frame holder (1) on stop pins (2).
Slide frame holder (1) underneath
springs (3) and engage stop pins (2).
Abb. 39: Inserting frame
Each time you convert the machine for a di󰀨erent mode, change
the pantograph conguration to suit the application (e.g. border
frame embroidery) by way of the control unit.
