136
Setting up and aligning
3.6.1 Connecting cables
Control unit
Connect cable (2) to rear of control
unit and fasten with screws (1).

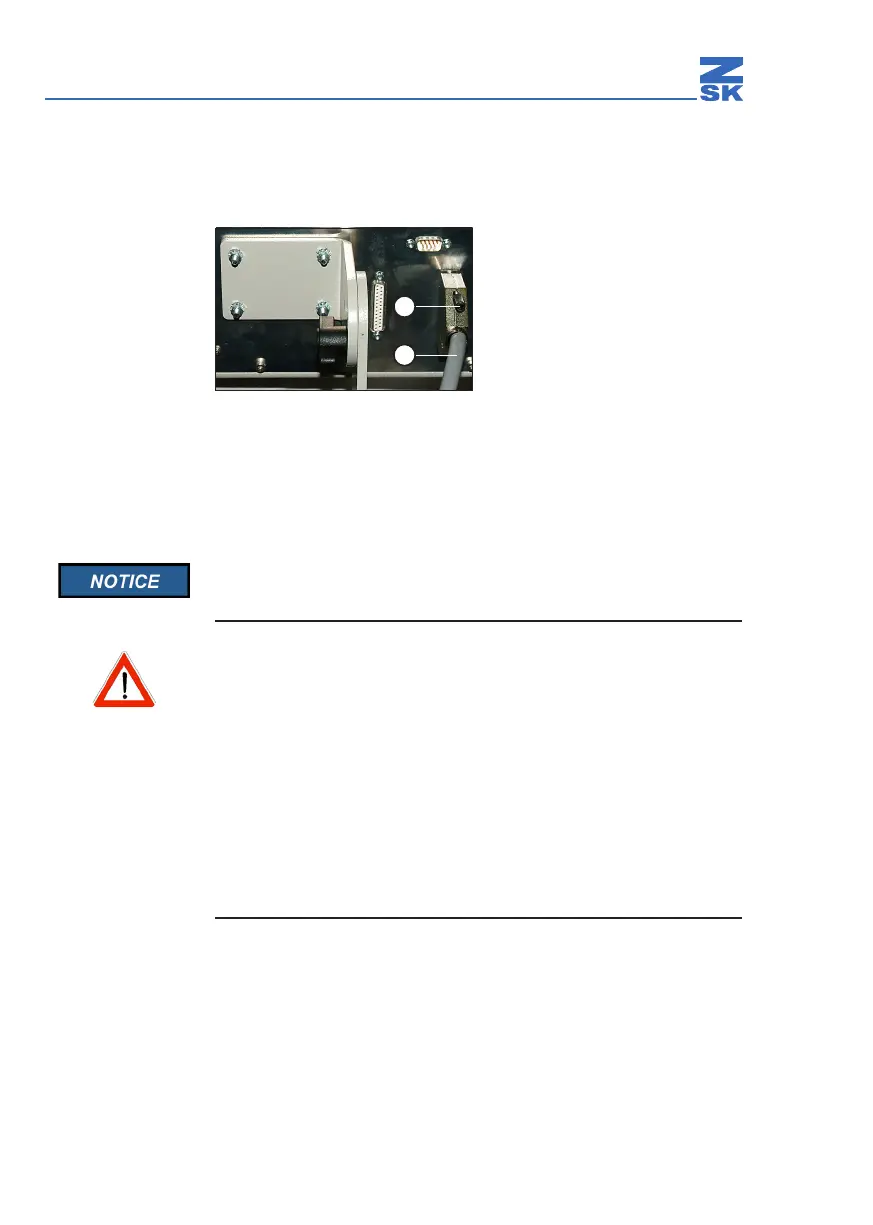

Abb. 26: Rear of control unit
3.6.2 Adjusting control unit holder
The control unit holder can be individually adjusted.
Do not align the control unit as described below until the
machine has been connected and started up.
Before the control unit is adjusted horizontally or vertically to a
new position, the traversing and fully equipped yarn rack has to
approach the nal needle (right) position by executing a color
change (change of needle position).
Die Ausrichtung der Bedieneinheit kann jetzt durchgeführt Once
this position has been adopted, the control unit can be adjusted.
Make certain that adequate clearance is maintained between the
control unit and yarn rack in order to avoid damage and malfunc-
tions when a color change takes place. The machine can be
damaged!
1
2
