ZSK JAFA - Adjusting Work Table Support Hydraulically

194
Changing modes
Slacken o xing screw (2).
Remove work table extensions (1).

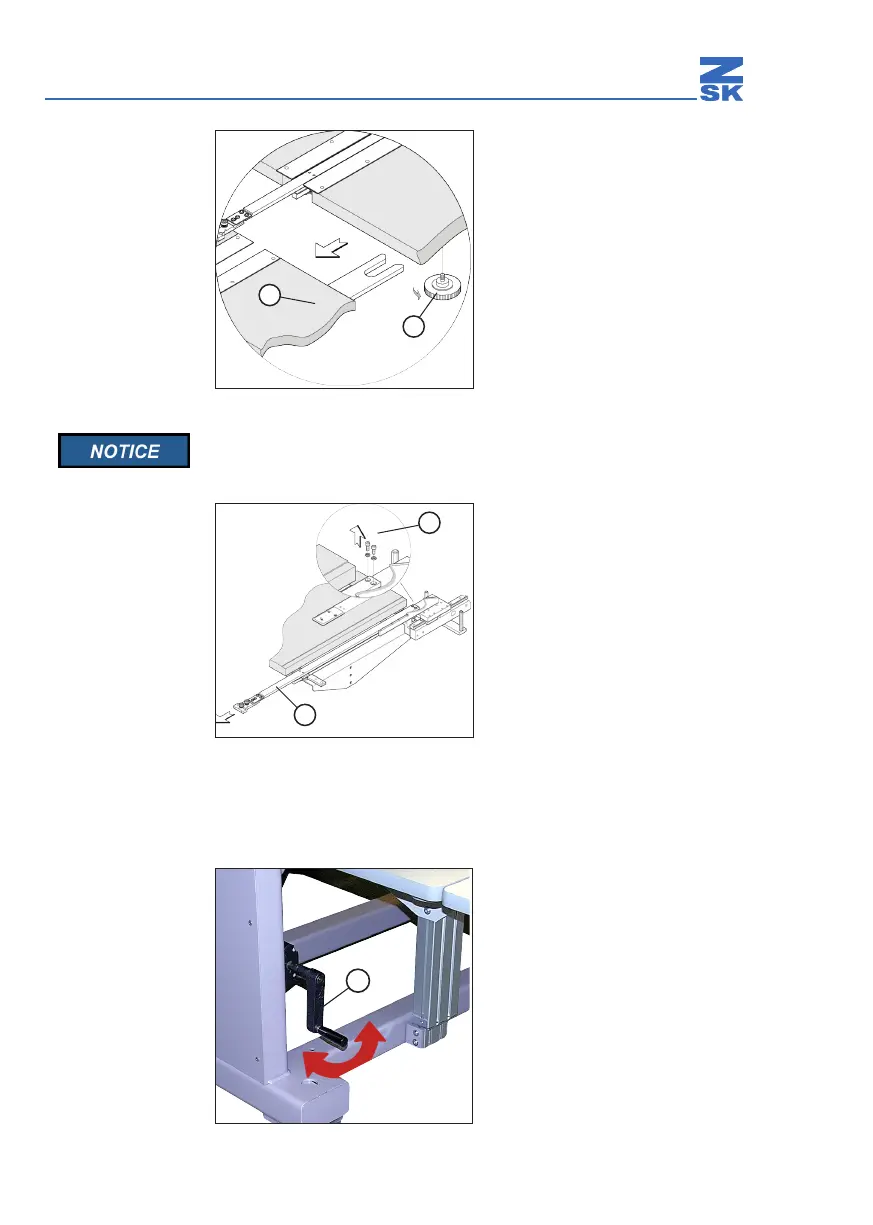

Abb. 77: Dismantling work, table extension
Move the “front-to-back” pantograph guide as far forward as
possible (front edge of work table).
Remove screws (3).
Remove middle pantograph guide rail (4).
Abb. 78: Dismantling middle pantograph guide rail
Adjusting work table support hydraulically
Turn crank (1) counterclockwise.
Ö Work tables are lowered to the
bottom position.
Turn crank (1) clockwise.
Ö Work tables are raised to the top
position.
Abb. 79: Hydraulic drive for adjusting work table support
