ZSK JAFA - Removing Pantograph Frame; Installing Cylinder Arm Frame Holder

190
Changing modes
13.2 Removing pantograph frame
Slacken o screws (2) that fasten
pantograph frame (1) to carriage (3) of
the pantograph drive.
Remove pantograph frame (1).

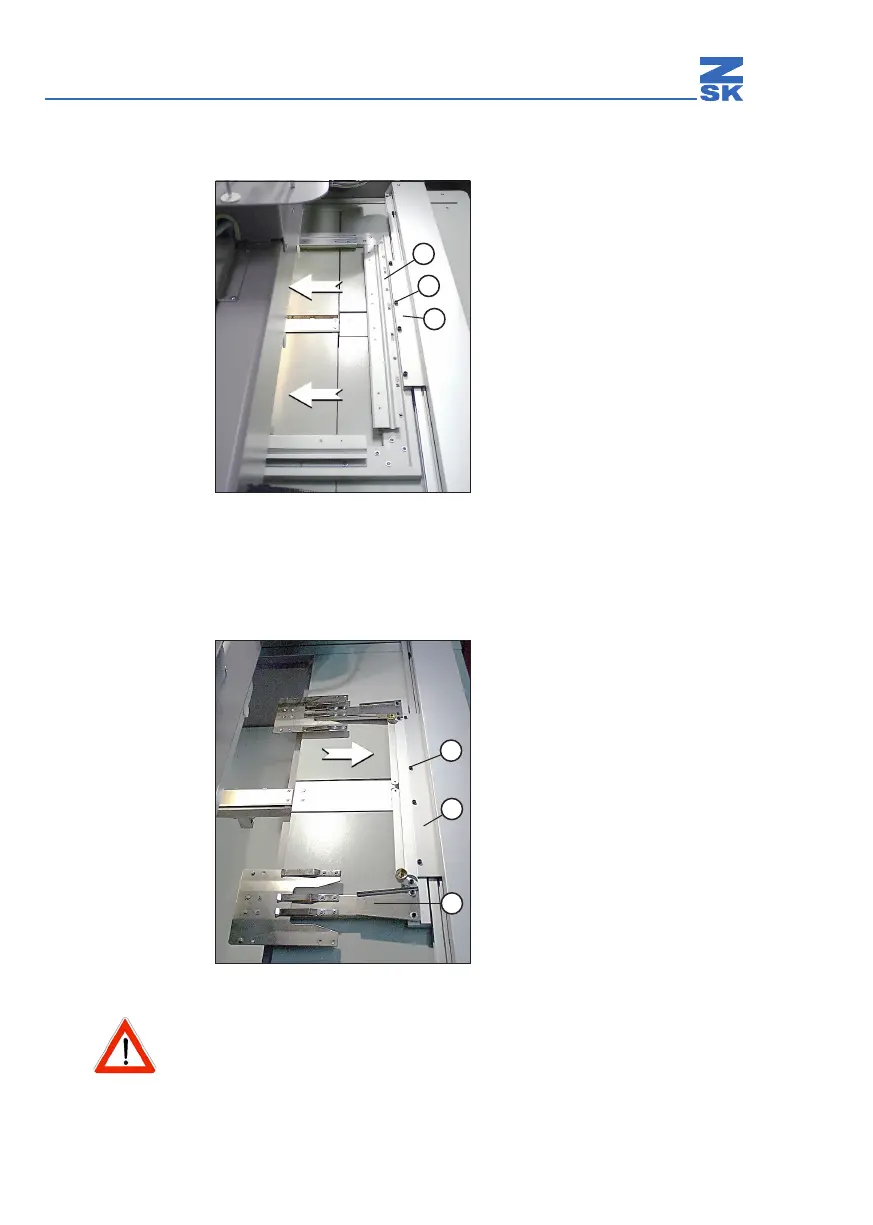

Abb. 69: Dismantling pantograph frame, illustrated: 1 head machine
13.3 Installing cylinder arm frame holder
Insert cylinder arm frame holder (3).
Fasten cylinder arm frame holder (3)
with screws (1) to carriage (2) of the
pantograph drive.
Abb. 70: Installing cylinder arm frame holder, illustrated on a 1 head machine
Each time you convert the machine for a di󰀨erent mode, change the
pantograph conguration to suit the application (e.g. border frame
embroidery) by way of the control unit.
