Operating elements
12.4 Control unit
In line with more recent ZSK control units, this control unit has a
start/stop control panel and a control panel for manual pantograph
positioning.

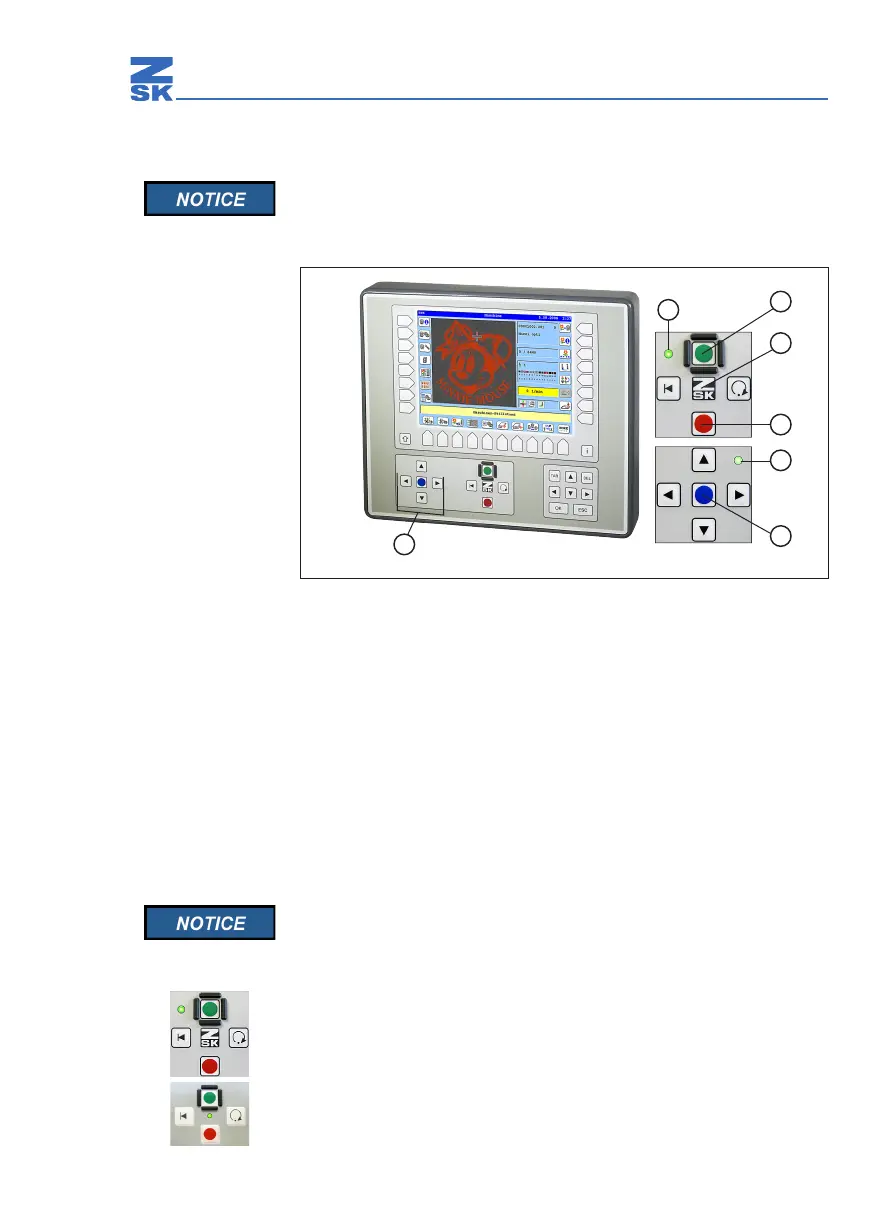

Abb. 63: T8 control unit
(1) Start key
(2) ZSK-key
(3) Stop key
(4) Light-emitting diode (LED)
(5) Appliqué key
(6) Start/Stop keys
(7) Pantograph positioning keys
12.4.1 Start/Stop keys
You can use the Start/Stop key cluster when the LED (light-emitting
diode) in the cluster is illuminated. The pantograph positioning keys
must be switched o.
The Start/Stop key cluster is situated on the control unit and, in some cases,
between the heads (without the ZSK key). It consists of the keys for starting and
stopping the machine, selecting and deselecting the pantograph positioning keys
(ZSK key), reverse embroidery and executing single stitches.
