Section 3 Device Import Wizard I/O Settings
9ARD000014-600 A 79
EtherNet/IP Device
Figure 29 shows the I/O Settings window for EtherNet/IP non-modular system.
Example of EtherNet/IP modular I/O system is shown in Figure 30.

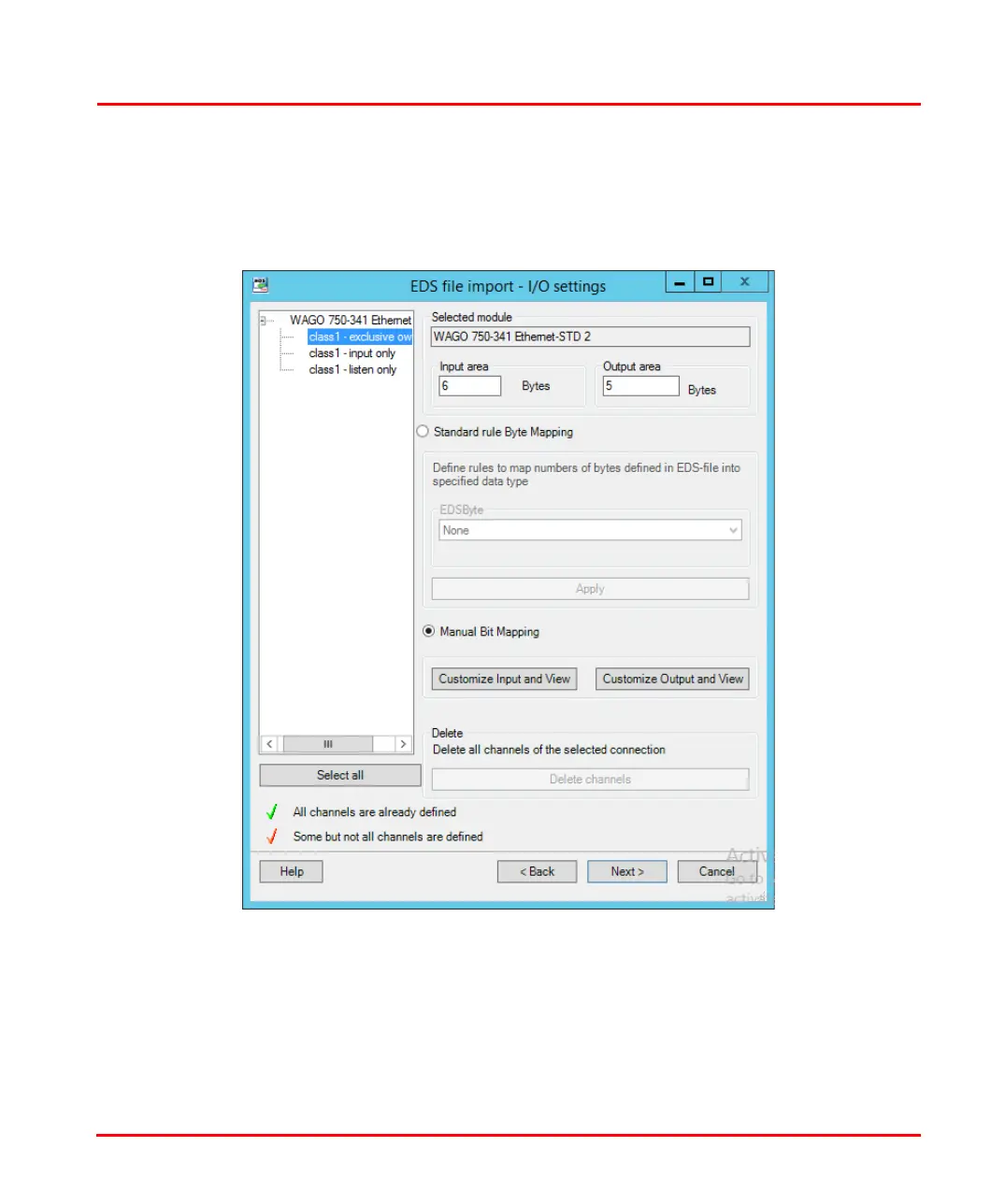

Figure 29. EtherNet/IP Non-modular system
