ABB AC 800M

I/O Settings Section 3 Device Import Wizard
92 9ARD000014-600 A
• Byte, bit - Displays the starting byte and bit of the I/O channel.
• Length
- Displays the number of bits for each I/O channel.
• Name
- Displays the name of each I/O channel.
• Data type
conversion - Displays the channel’s data type and the corresponding
copy routine function which is generated in the hardware definition file for
each I/O channel.
• Featur
es - Displays the specific features or properties of the I/O channel.
The byte swapping feature is available for specific copy functions only.

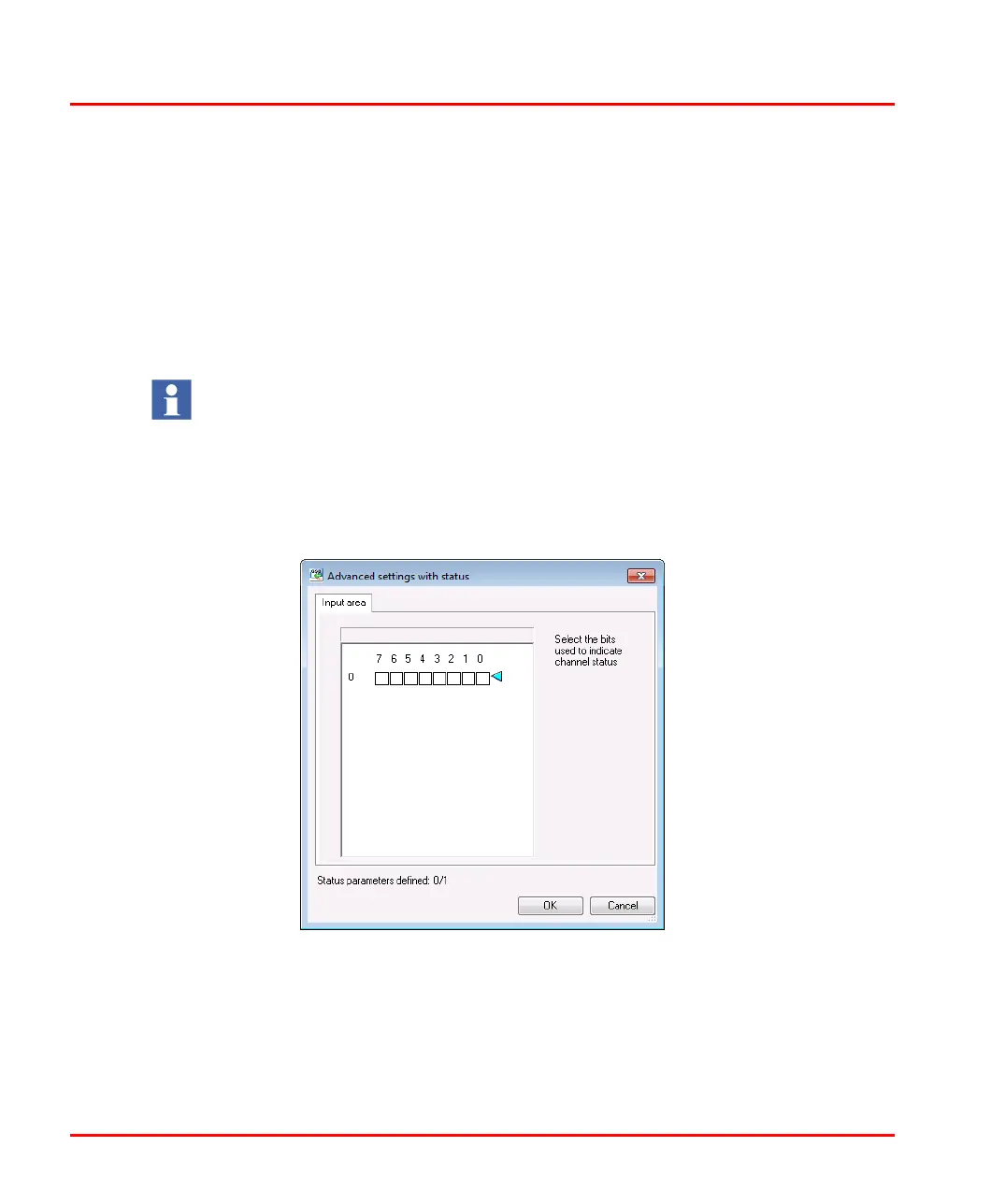

Figure 39. Advanced Settings with Status for a digital input channel
From the Input Area Configuration, in digital channels, double-click the Features
or Data type conversion column to bring up the Advanced Settings window, 
as shown in Figure 39.
From the Advanced
Settings dialog box, specify the Status parameters in the Input
Area tab. Click to select the number of bits to indicate channel status. For details on
