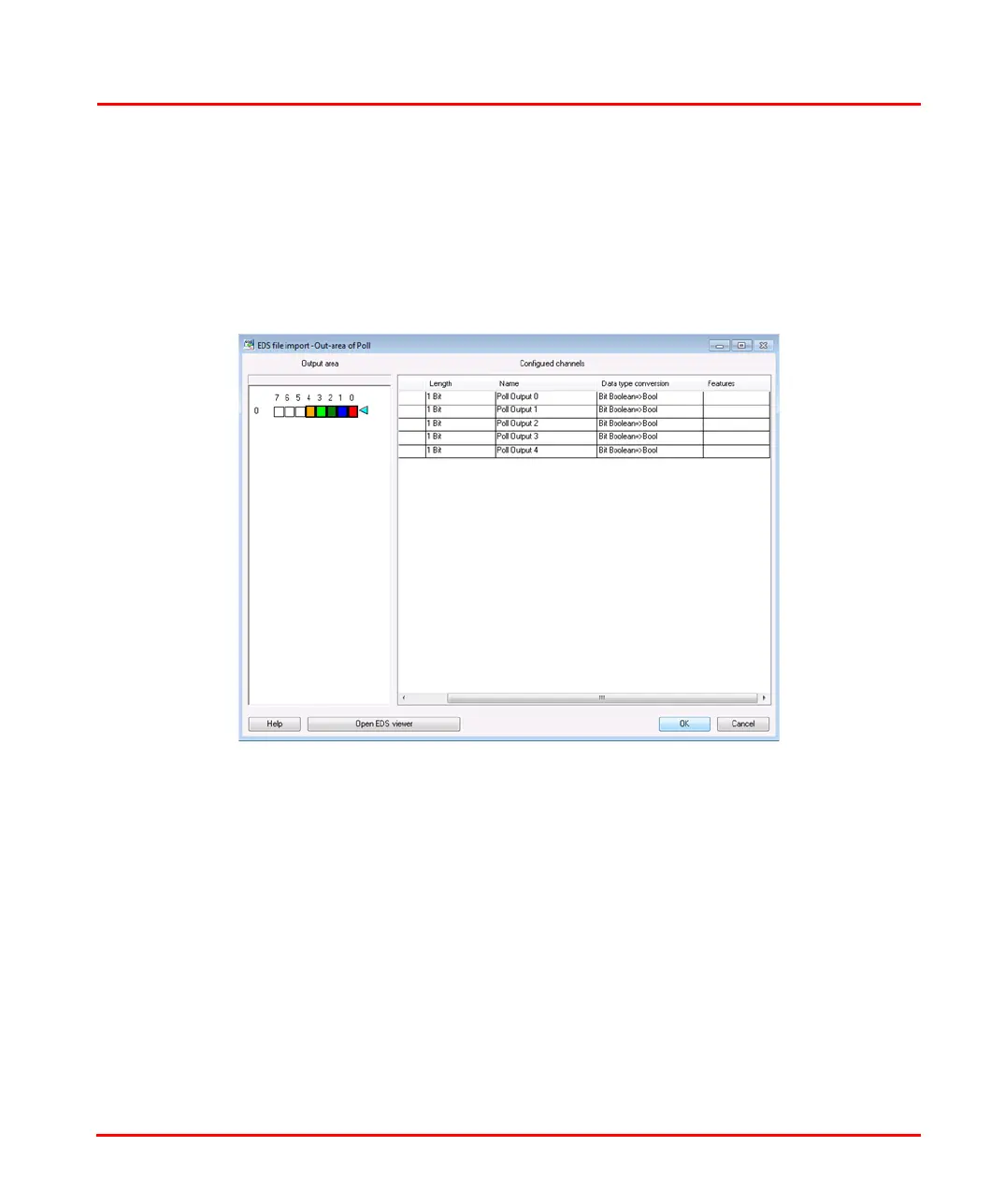

Figure 40. Output Area Configuration for Poll trigger type
(Digital Output Channels - Non Modular Import)
Section 3 Device Import Wizard I/O Settings
9ARD000014-600 A 93
specifying the Status Parameters for a channel, refer Specifying Status and Signal
Range Parameters for Channels on page 98.
For customizing the output area, click Customize Output and View from the I/O
Settings screen. This brings up the Output Area Configuration screen, as shown in
Figure 40,where the output area can be assigned to output channels.
Operate the Output Area Configuration screen in the same manner as the Input Area
Configuration screen. The advanced feature option for boolean/digital output
channels is not available.
