ABB AC 800M

I/O Settings Section 3 Device Import Wizard
94 9ARD000014-600 A
Customizing Input and Output for Analog Channels

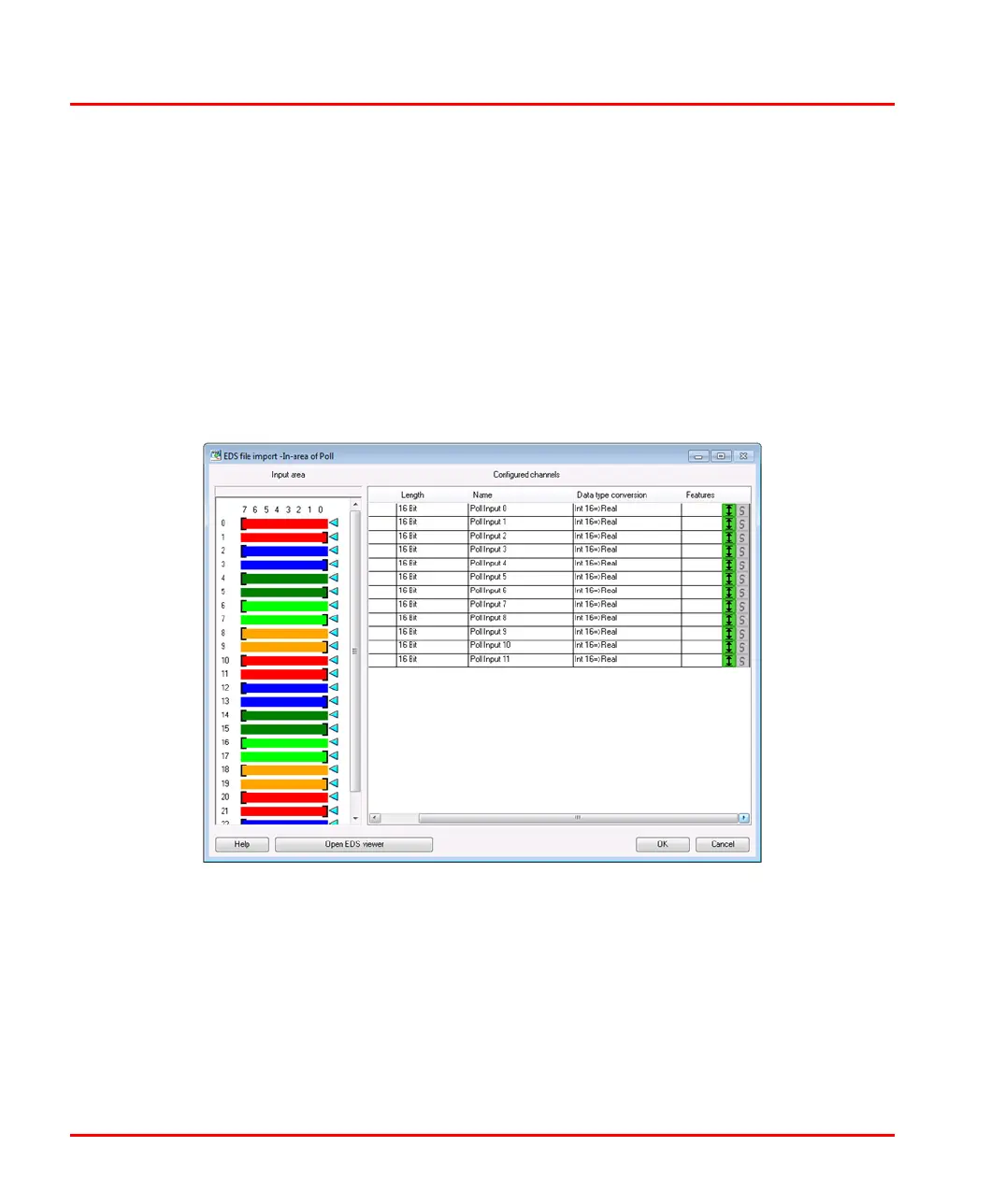

Figure 41. Input Area Configuration for Poll trigger type 
(Analog Input Channel - Modular I/O Import)
During manual creation of channels, the drop-down rules for analog channels are
similar to those for digital channels. Choose the rule as Real Datatype during
manual creation for analog channels.
Click Customize Input and View from the I/O Settings screen. This brings up the
Input Area Configuration screen, where the input area can be assigned to input
channels. The Input Area Configuration screen for analog channels has the same
features as the one for digital channels. Figure 41 shows the Input Area
Configuration screen.
From the Input Area Configurati
on screen, double-click the Features or Data type
conversion column to bring up the Advanced Settings window, as shown in
Figure 42.
