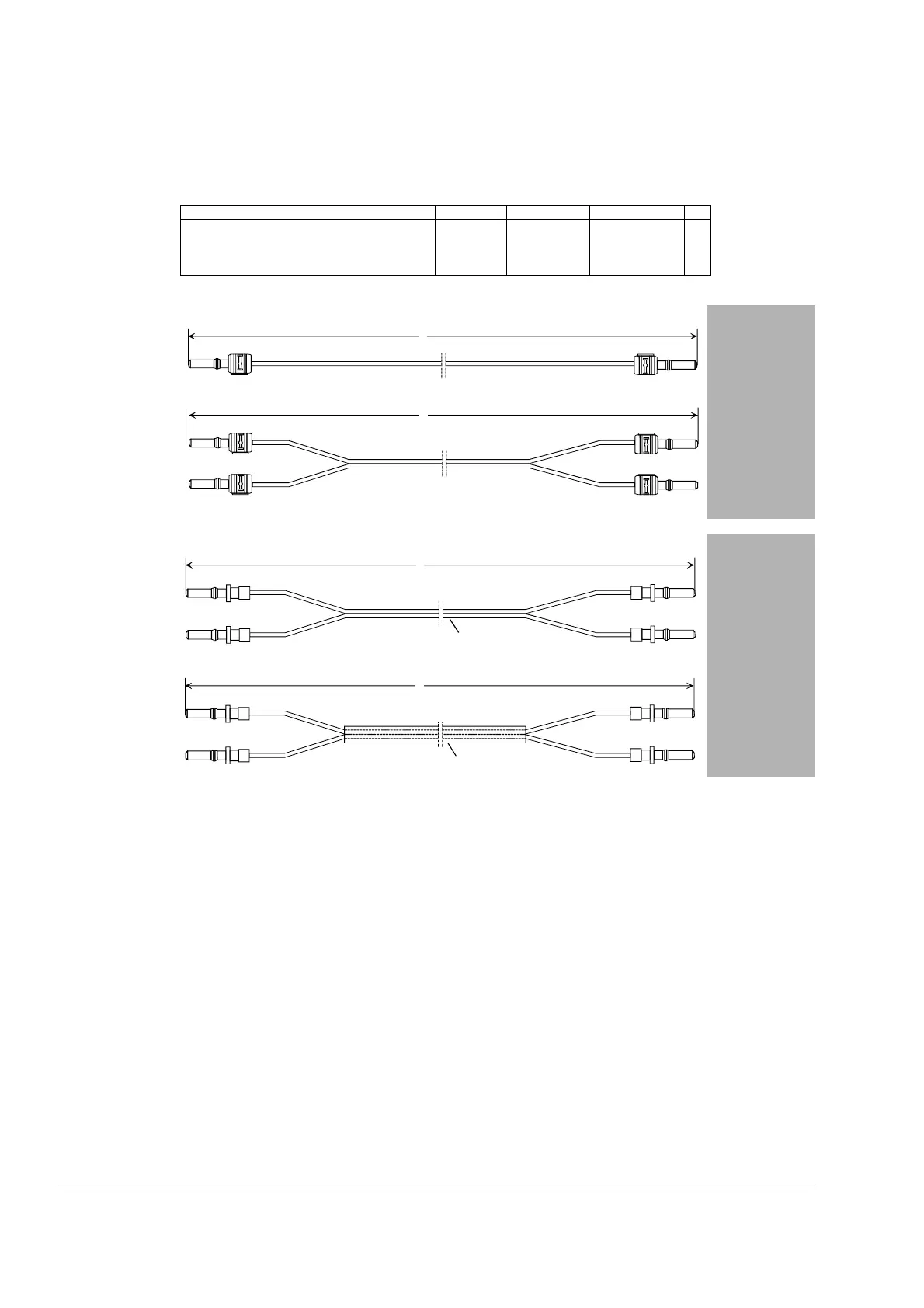

Optical cables
For the bus communication of the DCS converters there are different optical cables available.
Kind of cable Connector cable length Ident. no. Fig.
plastic fibre optic single cable plug 0.5...20 m 3ADT 693324 1
plastic fibre optic double cable plug 0.5...20 m 3ADT 693318 2
HCS silica (double) without plastic jacket plug 30...50 m 3ADT 693355 3
HCS silica (double) with plastic jacket plug 50...200 m 3ADT 693356 4
Figure 1
for DCS 400 DCS 500 DCS 600 DCS800
Figure 2
Figure 3
for DCS 600, DCS800 selected channels. see manual NDBU 3ADW 000 100 R0201
Figure 4
blue black
L
blue
black
black
blue
L
L
orange
black
orange
black
∅
5 mm
L
blue
red
blue
red
∅
8 mm

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
