Electrical installation
58
3ADW000194R0611 DCS800 Hardware Manual f us

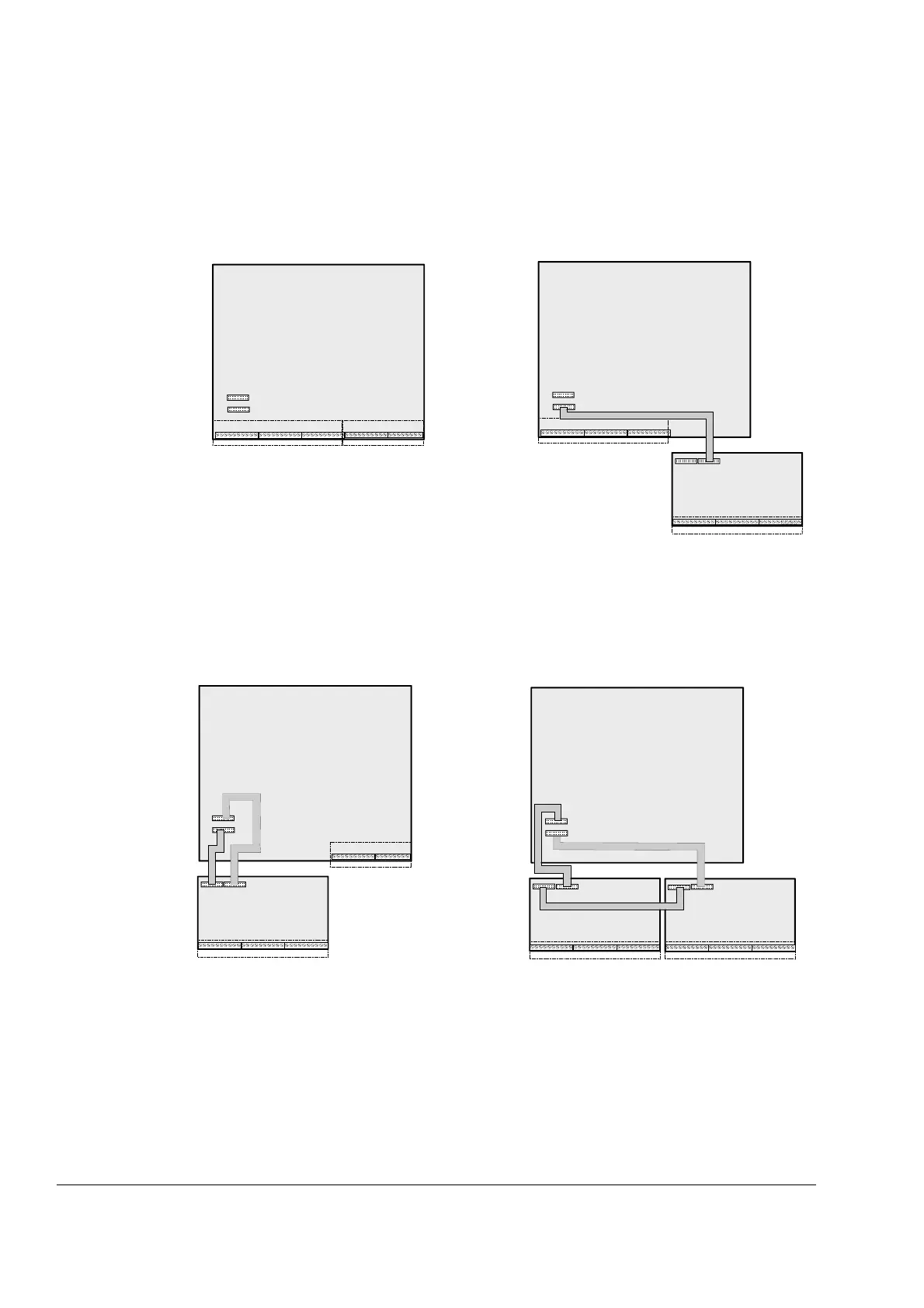

I/O Board Configuration
In-/output signals
The converter can be connected in four different ways to a control unit via analogue/
digital signals. Only one of the four choices can be used at the same time.
I/O´s via SDCS-CON-4
Analogue I/O´s: standard
Digital I/O´s: not isolated
Encoder input: not isolated
I/O´s via SDCS-CON-4 and SDCS-IOB-2
Analogue I/O´s: standard
digital I/O´s: all isolated by means
of optocoupler/relay,
the signal status is
indicated by LED
I/O´s via SDCS-IOB-2 and SDCS-IOB-3
Analogue I/O´s: Standard + one
channel for residual
current measurement
digital I/O´s: all isolated by means of
optocoupler/relay, the
signal status is
indicated by LED
current source for: PT100/PTC element
I/O´s via SDCS-CON-4 and SDCS-IOB-3
Analogue I/O´s: Standard + one
channel for residual
current measurement
digital I/O´s: not isolated
encoder input: isolated
current source for: PT100/PTC element
X3: X4: X5:
X2:
X1:
SDCS-CON-4
X6: X7:
X3: X4: X5:
SDCS-CON-4
X3: X1:
SDCS-IOB-2
X2:
X1:
X1: X2:
SDCS-IOB-3
X6: X7:
SDCS-CON-4
X2:
X1:
X2:
SDCS-IOB-3
SDCS-CON-4
X1:
SDCS-IOB-2
X1:
X3:
X2:
X1:
IO_poss_b.dsf
