Mechanical installation
23
3ADW000194R0611 DCS800 Hardware Manual f us
Terminal options converter size D1...D4
There are different options for protection and connection the terminals for converter
sizes D1...D4

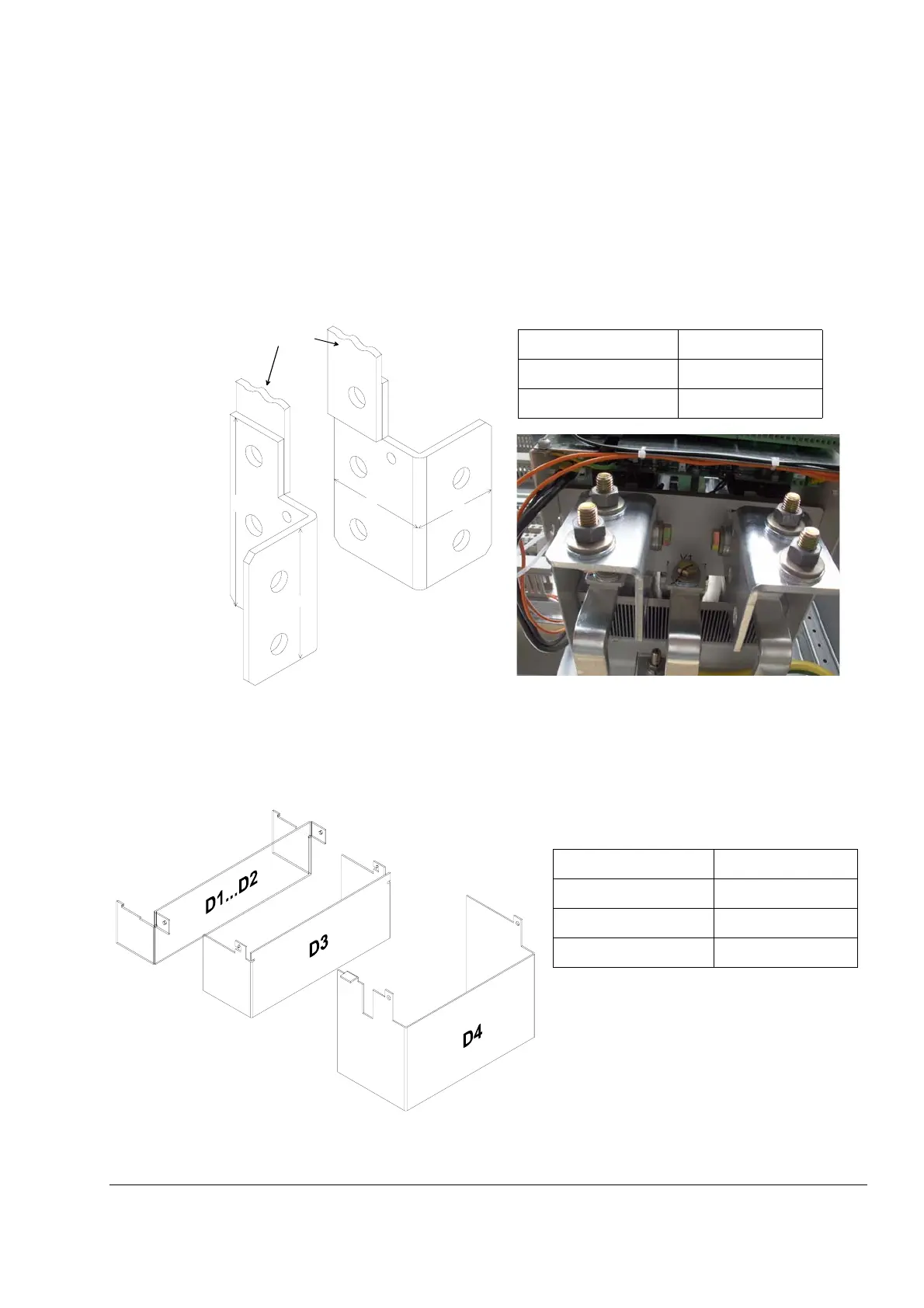

Connection of DC terminals of D4 converter module
In special cases it is beneficial to use the lug bar for easier connection of the DC
cables.
Terminal cover according to VBG 4 regulations
For converter modules D1...D4 we provide shrouds for protection against contact
DC terminals of
D4 module
135
95
71
60
∅
14
∅ 7.35
Id No. Remark
3ADT631137P0001 D1...D2
3ADV400208P0001 D3
3ADV400207P0001 D4
Bottom view of lug bar mounted on a D4 module
Id No. Remark
3ADV280706P0001 right
3ADV280706P0002 left
