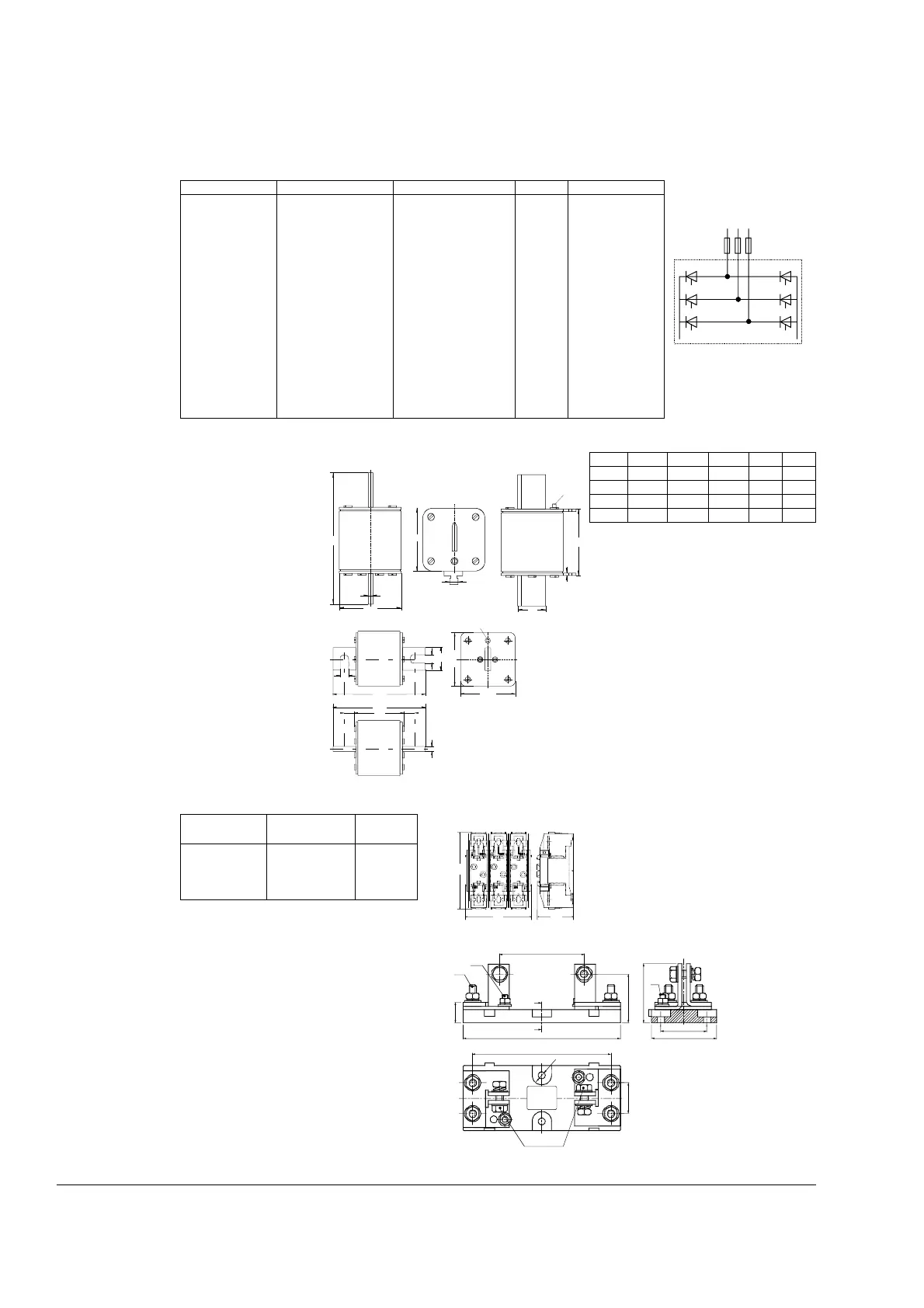

Fuses and fuse holders IEC
Dimensions [mm] Size 0...4
Main dimensions of fuse holders
Type Resistance [mΩ] Fuse F1 Size Fuse holder
170M 1558 30 10A 660V UR 0 OFAX 00 S3L
170M 1559 21 20A 660V UR 0 OFAX 00 S3L
170M 1561 15 25A 660V UR 0 OFAX 00 S3L
170M 1564 6 50A 660V UR 0 OFAX 00 S3L
170M 1565 4 63A 660V UR 0 OFAX 00 S3L
170M 1566 3 80A 660V UR 0 OFAX 00 S3L
170M 1568 1.8 125A 660V UR 0 OFAX 00 S3L
170M 3815 0.87 200A 660V UR 1 OFAX 1 S3
170M 3816 0.59 250A 600V UR 1 OFAX 1 S3
170M 3817 0.47 315A 660V UR 1 OFAX 1 S3
170M 3819 0.37 400A 660V UR 1 OFAX 1 S3
170M 5810 0.30 500A 660V UR 2 OFAX 2 S3
170M 6811 0.22 700A 660V UR 3 OFAX 3 S3
170M 6813 0.15 900A 660V UR 3 OFAX 3 S3
170M 6163 0.15 900A 660V UR 4 170H 3006
170M 6166 0.09 1250A 660V UR 4 170H 3006
Size a b c d e
0 78,550352115
1 135 69 45 45 20
2 150 69 55 55 26
3 150 68 76 76 33
Fuse holder HxWxD [mm] Protec-
tion
OFAX ...
OFAX 00 S3L 148x112x111 IP20
OFAX 1 S3 250x174x123 IP20
OFAX 2 S3 250x214x133 IP20
OFAX 3 S3 265x246x160 IP20
170H 3006 (IP00)
L1 L2 L3
F1
a
d
e
2
10
c
6
b
Fuse1_a.dsf
Indicator
Size 4
Size 0...3
76
76
108
30
11
11
14
17
139
6
29
50
29
fuse2_a.dsf
Indicator
OFAX 2 S3
H
W D
M10
110
A
A
M8
27
205
180
64
77
M8
A-A
60
85
Ø
9
M10
40
170H3006_a .dsf

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
