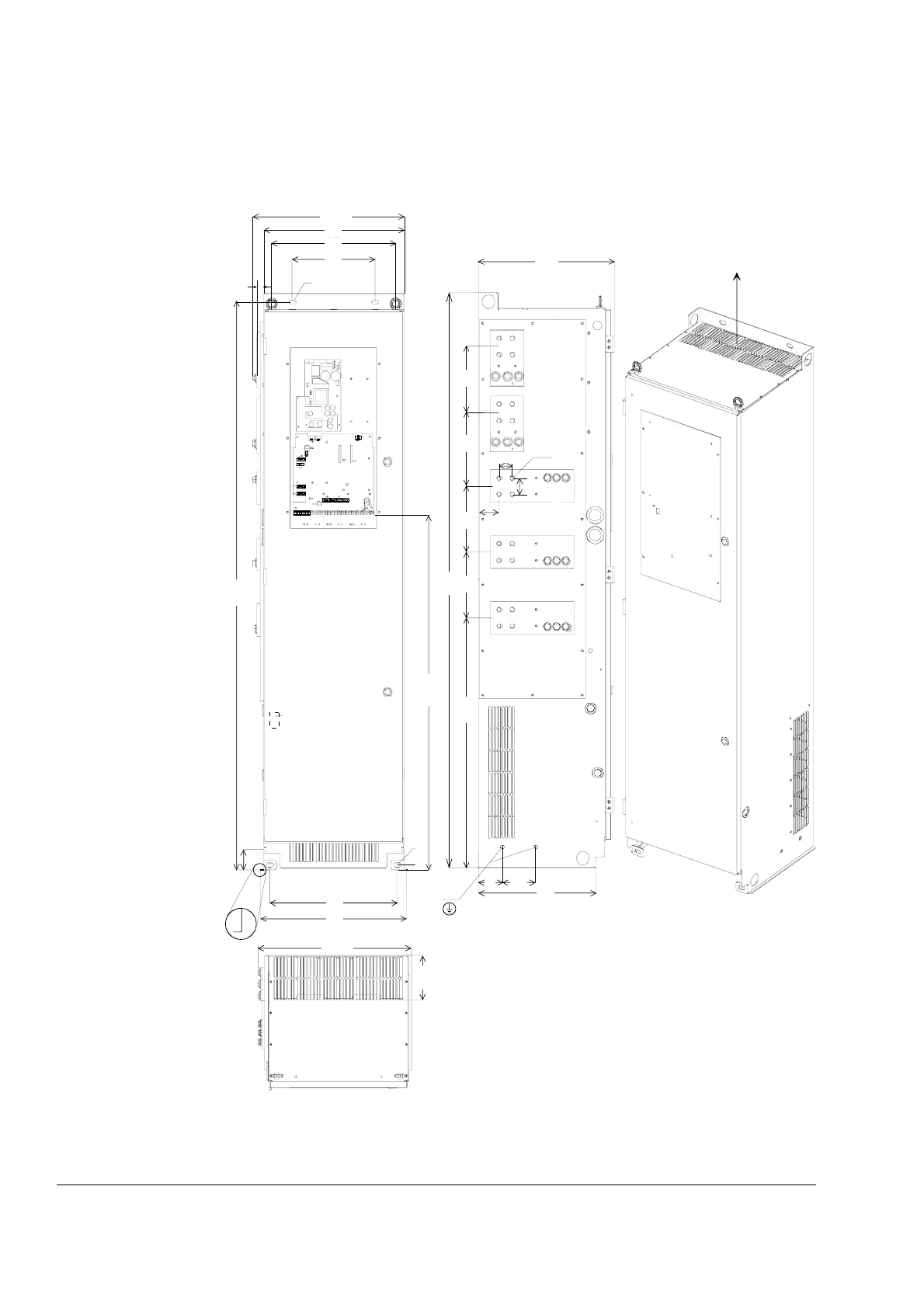

Dimensional drawings
108
3ADW000194R0611 DCS800 Hardware Manual f us
Module D6
DCS800-S0x-1900
DCS800-S0x-2050
DCS800-S0x-2500
DCS800-S0x-3000
Weight appr. 180 kg
Pressure switch
63
458.2
10x20
20
1725
C
D
U
V
W
385
445
10x20
1079.5
15
425
375
250
C
D
U
V
W
A6_dim.dsf
M12
409
225 200
1750
200 200
62
M10
72
100
759.5
40
50
355
Air entry
Air outlet
468.2
136
from the front, right, left and
back
*
