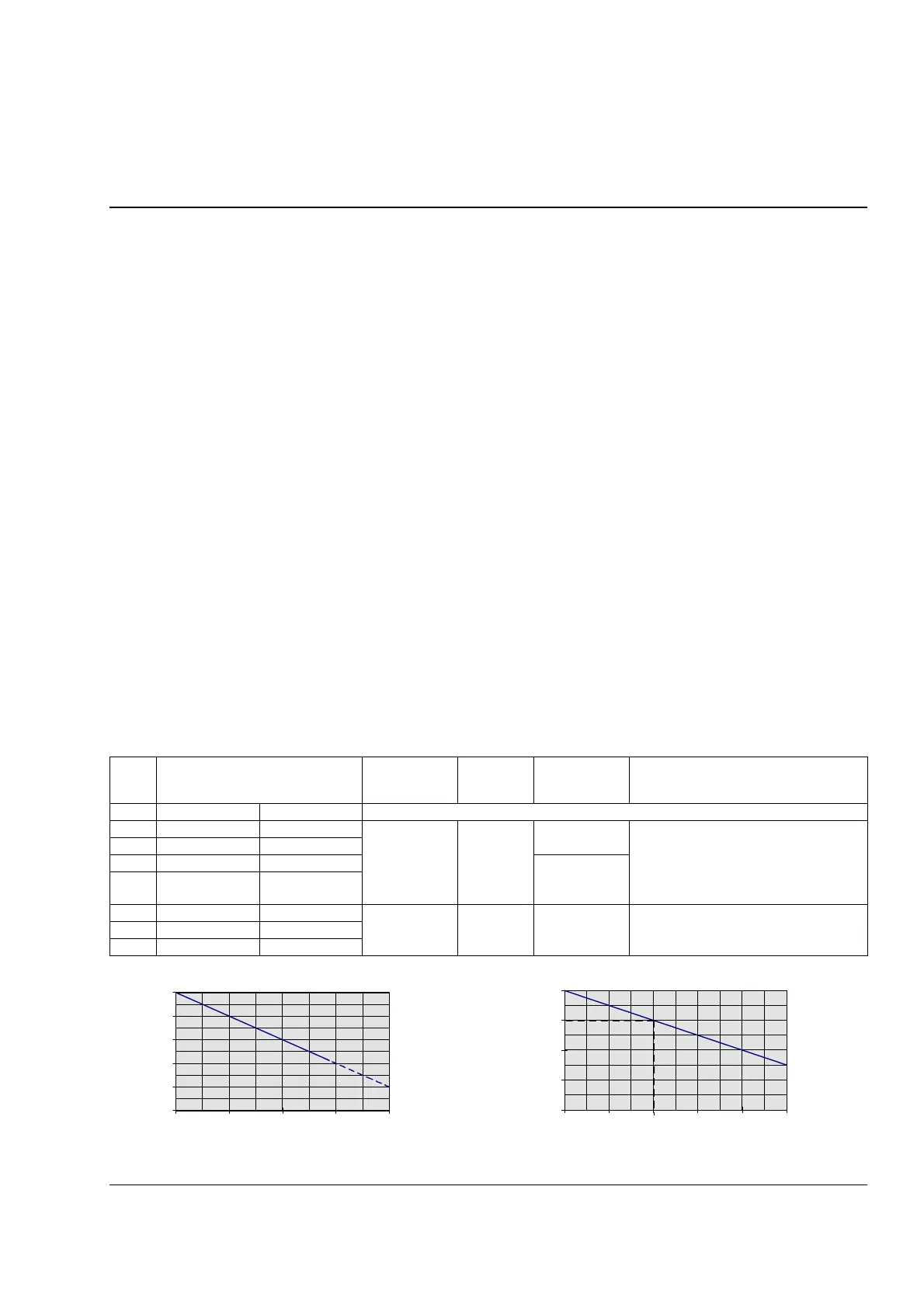

Technical data
69
3ADW000194R0611 DCS800 Hardware Manual f us
Technical data
What this chapter contains
This chapter contains the technical specifications of the drive, e.g. the ratings, sizes
and technical requirements, provisions for fulfilling the requirements for CE and
other markings and warranty policy.
Reference: Hardware extension RAIO Analog I/O Extension publ.no.:3AFE64484567
Hardware extension RDIO Digital I/O Extension publ.no.:3AFE64485733
DCS800 1131 Programming target publ.no.:3ADW000199
Branching units NDBU-95 publ.no.:3ADW000100
Environmental Conditions
System connection Environmental limit values
Voltage, 3-phase: 230 to 1000 V acc. to IEC 60038 Permissible cooling air temp.
Voltage deviation: ±10% continuous; ±15% short-time * - at converter module air inlet: 0 to +55°C
Rated frequency: 50 Hz or 60 Hz with rated DC current: 0 to +40°C
Static frequency deviation: 50 Hz ±2 %; 60 Hz ±2 % w. different DC curr. acc. Fig.
below:
+30 to +55°C
Dynamic: frequency range: 50 Hz: ±5 Hz; 60 Hz: ± 5 Hz - Options: 0 to +40°C
df/dt: 17 % / s Relative humidity (at 5...+40°C): 5 to 95%, no condensation
* = 0.5 to 30 cycles. Relative humidity (at 0...+5°C): 5 to 50%, no condensation
Please note: Special consideration must be taken for voltage devi-
ation in regenerative mode.
Change of the ambient temp.: < 0.5°C / minute
Degree of protection Storage temperature: -40 to +55°C
Converter Module and
options (line chokes, fuse
holder,
Transport temperature:
Pollution degree (IEC 60664-1,
IEC 60439-1):
-40 to +70°C
2
field supply unit, etc.): IP 00 / NEMA TYPE OPEN Vibration class 3M3 - D1...D4
Enclosed converters: IP 20/21/31/41 (IEC-60721-3-3) 3M1 - D5...D7
Paint finish Site elevation
Converter module: light grey RAL 9002 <1000 m above M.S.L.: 100%, without current reduction
Enclosed converter: light grey RAL 7035 >1000 m above M.S.L.: with curr. reduct., see Fig. below
Size Sound pressure level L
P
(1 m dis-
tance)
Vibration Shock Transport in
original Package
Short circuit withstand rating
The DCS800 is suitable for use in a circuit capa-
ble of delivering not more than:
as module enclosed conv. as module
D1 55 dBA 54 dBA
1.5 mm, 2...9 Hz
0.5 g, 9...200 Hz
7 g / 22 ms
1.2 m 65 kA rms symmetrical amps at maximum
600 VAC
D2 55 dBA 55 dBA
D3 60 dBA 73 dBA 1.0 m
D4 66...70 dBA,
depending on fan
77 dBA
D5 73 dBA 78 dBA
0.3 mm, 2...9 Hz
0.1 g, 9...200 Hz
4 g / 22 ms
0.25 m
Shock monitor
100 kA rms symmetrical amps at maxi-
mum 600 VAC
D6 75 dBA 73 dBA
D7 82 dBA 80 dBA
Effect of the site elevation above sea level on the converter’s load capacity
Current reduction to (%)
Effect of the ambient temperature on the converter module load capacity
Current reduction to (%) for converter modules
50
60
70
80
90
100
1000 2000 3000 4000 5000
m
70
80
90
100
110
30 35 40 45 50 55
°C
