Fuses and fuse holders - North America
The table shows the recommended fuses and fuse holders for each converter type for the incoming
three-phase AC line. If DC fuses are also required, use the same type and size.
*Use 3 for the AC side. DC fuses may be required by local safety regulations. If so, use 2 for the DC side.
Note 1: No fuse holder is available. Attach fuses directly to busbar.

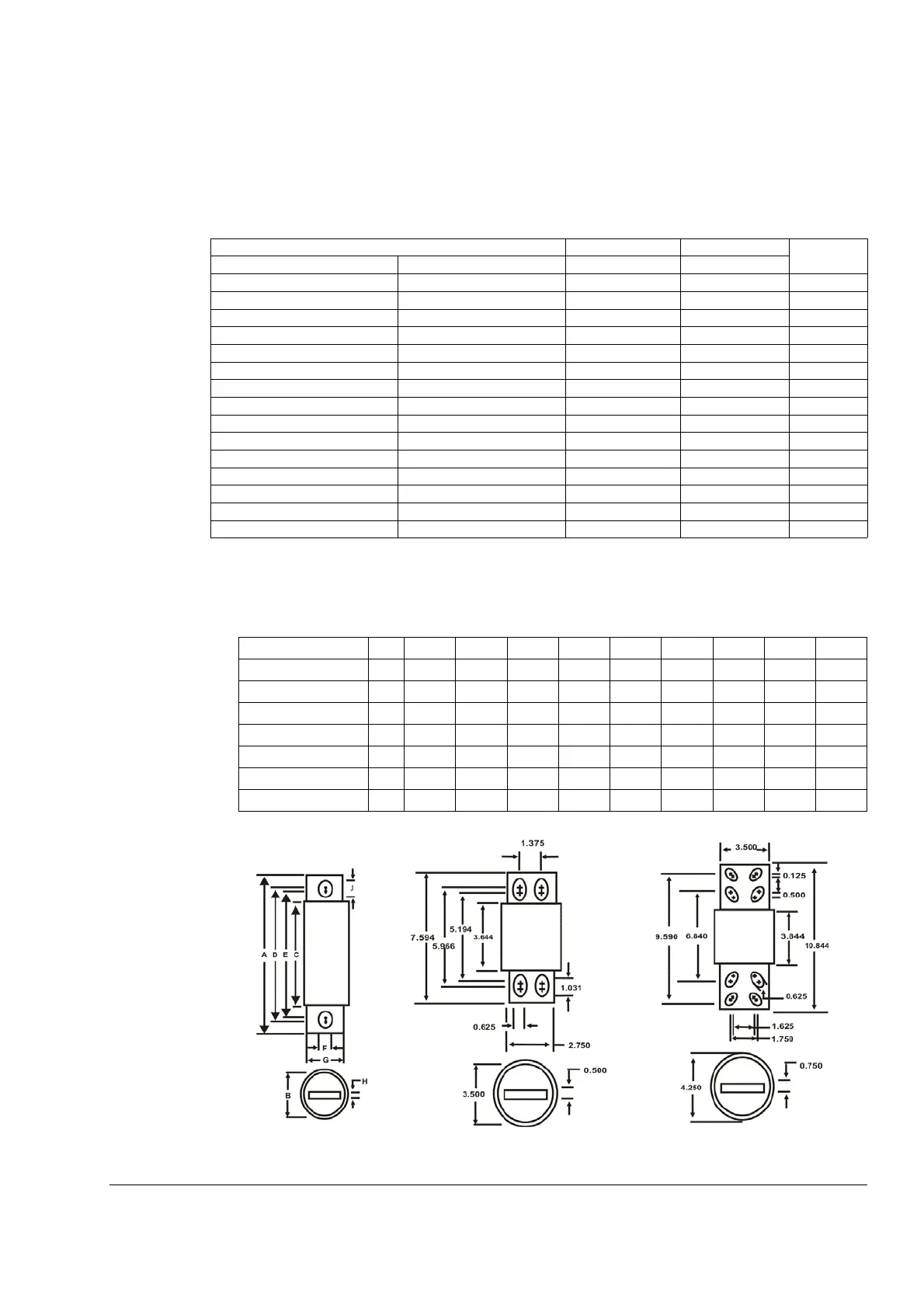

Dimensions
Dimensions in inches.
Fig. 1: 5-800 Amp Range Fig. 2: 900-1000 Amp Range Fig. 3: 1200 Amp Range
Type of Converter Fuse* Fuse Holder* Design
2-Q Converter 4-Q Converter North America single-pole Figure
DCS800-SO1-0020-05 DCS800-SO2-0025-05 FWP-50B 1BS101 1
DCS800-SO1-0045-05 DCS800-SO2-0050-05 FWP-80B 1BS101 1
DCS800-SO1-0065-05 DCS800-SO2-0075-05 FWP-125A 1BS103 1
DCS800-SO1-0090-05 DCS800-SO2-0100-05 FWP-125A 1BS103 1
DCS800-SO1-0125-05 DCS800-SO2-0140-05 FWP-200A 1BS103 1
DCS800-SO1-0180-05 DCS800-SO2-0200-05 FWP-250A 1BS103 1
DCS800-SO1-0230-05 DCS800-SO2-0260-05 FWP-300A 1BS103 1
DCS800-SO1-0290-06 DCS800-SO2-0320-06 FWP-500A See Note 1 1
DCS800-SO1-0315-05 DCS800-SO2-0350-05 FWP-500A 1BS103 1
DCS800-SO1-0405-05 DCS800-SO2-0450-05 FWP-700A See Note 1 1
DCS800-SO1-0470-05 DCS800-SO2-0520-05 FWP-700A See Note 1 1
DCS800-SO1-0590-06 DCS800-SO2-0650-06 FWP-900A See Note 1 2
DCS800-SO1-0610-05 DCS800-SO2-0680-05 FWP-900A See Note 1 2
DCS800-SO1-0740-05 DCS800-SO2-0820-05 FWP-900A See Note 1 2
DCS800-SO1-0900-05 DCS800-SO2-1000-05 FWP-1200A See Note 1 3
Order # Fig. A B C D E F G H J
FWP-5B-30B 1 2.87 0.563 1.855 2.477 2.477 0.25 0.405 0.063 0.25
FWP-35B-60B 1 4.375 0.813 2.75 3.708 3.312 0.344 0.725 0.125 0.542
FWP-70B-100B 1 4.406 0.947 2.594 3.625 3.563 0.344 0.75 0.125 0.375
FWP-125A-200A 1 5.09 1.5 2.84 4.19 3.5 0.41 1 0.25 0.75
FWP-225A-400A 1 5.09 2 2.84 4.28 3.53 0.41 1.5 0.25 0.78
FWP-450A-600A 1 7.09 2.5 2.84 5.72 4.19 0.53 2 0.38 1.3
FWP-700A-800A 1 6.63 2 2.844 5.562 5.062 0.625 1.5 0.25 0.875
