ABB DCS800 Hardware Manual

Dimensional drawings
111
3ADW000194R0611 DCS800 Hardware Manual f us

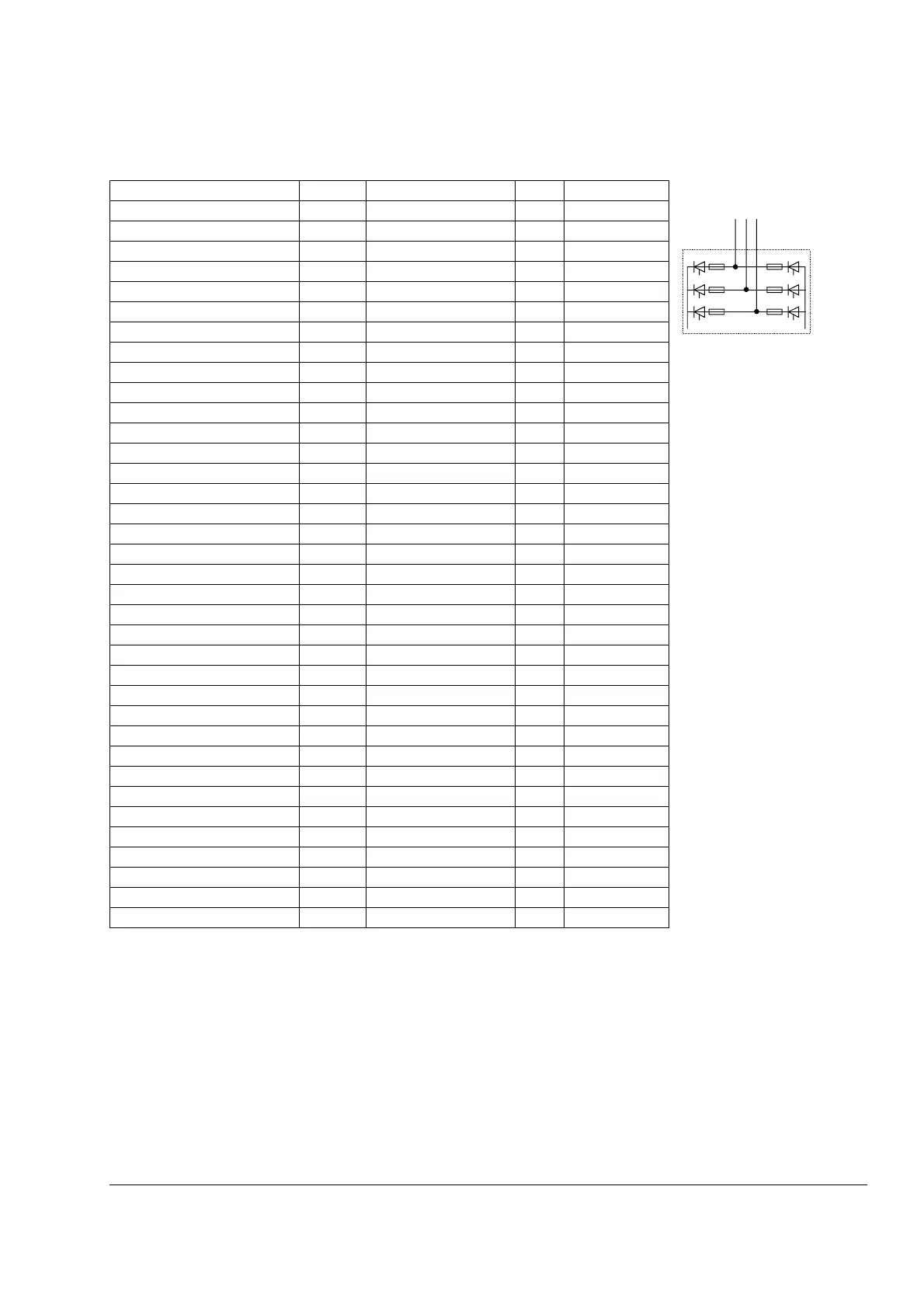

Fuses installed inside the converter
➀ 12 fuses per bridge (2x per F1x)
Converter type Model Fuse F1 Size Type
400 V / 500 V
DCS800-S0x-1200-04/05 D5 800A 660V UR 5 170M 6162
DCS800-S0x-1500-04/05 D5 1250A 660V UR 5 170M 6166
DCS800-S0x-2000-04/05 D5 1600A 660V UR 5 170M 6169
DCS800-S0x-2050-51 D6 1500A 660V UR 5 170M 6168
DCS800-S0x-2500-04/05 D6 900A 660V UR
➀ 5 170M 6163
DCS800-S01-3000-04/05 D6 1250A 660V UR
➀ 5 170M 6166
DCS800-S02-3000-04/05 D6 1250A 660V UR
➀ 5 170M 6166
DCS800-S0x-3300-04/05 D7 2500A 660V UR 7 170M 7026
DCS800-S0x-4000-04/05 D7 3000A 660V UR 7 170M 7028
DCS800-S0x-5200-04/05 D7 3500A 660V UR 7 170M 7057
600 V / 690 V
DCS800-S0x-0900-06/07 D5 630A 1250V UR 6 170M 6144
DCS800-S0x-1500-06/07 D5 1100A 1250V UR 6 170M 6149
DCS800-S01-2000-06/07 D5 1400A 1100V UR 6 170M 6151
DCS800-S0x-2050-06/07 D6 700A 1250V UR
➀ 6 170M 6145
DCS800-S0x-2500-06/07 D6 1000A 1250V UR
➀ 6 170M 6148
DCS800-S01-3000-06/07 D6 1100A 1250V UR
➀ 6 170M 6149
DCS800-S02-3000-06/07 D6 1100A 1250V UR
➀ 6 170M 6149
DCS800-S0x-3300-06/07 D7 2500A 1000V UR 8 170M 7036
DCS800-S0x-4000-06/07 D7 3000A 1000V UR 8 170M 7156
DCS800-S0x-4800-06/07 D7 3000A 1000V UR 8 170M 7156
790 V
DCS800-S0x-1900-08 D6 700A 1250V UR
➀ 6 170M 6145
DCS800-S0x-2050-08 D6 700A 1250V UR
➀ 6 170M 6145
DCS800-S0x-2500-08 D6 1000A 1250V UR
➀ 6 170M 6148
DCS800-S01-3000-08 D6 1100A 1250V UR
➀ 6 170M 6149
DCS800-S02-3000-08 D6 1100A 1250V UR
➀ 6 170M 6149
DCS800-S0x-3300-08 D7 2500A 1000V UR 8 170M 7036
DCS800-S0x-4000-08 D7 3000A 1000V UR 8 170M 7156
DCS800-S0x-4800-08 D7 3000A 1000V UR 8 170M 7156
1000 V
DCS800-S0x-2050-10 D7 1800A 1250V UR 9 170M 7976
DCS800-S0x-2600-10 D7 1800A 1250V UR 9 170M 7976
DCS800-S0x-3300-10 D7 2500A 1250V UR 9 170M 7978
DCS800-S0x-4000-10 D7 2500A 1250V UR 9 170M 7978
L1 L2 L3
F1x
F1x
F1x
F1x
F1x
F1x

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
