Planning the electrical installation
30
3ADW000194R0611 DCS800 Hardware Manual f us

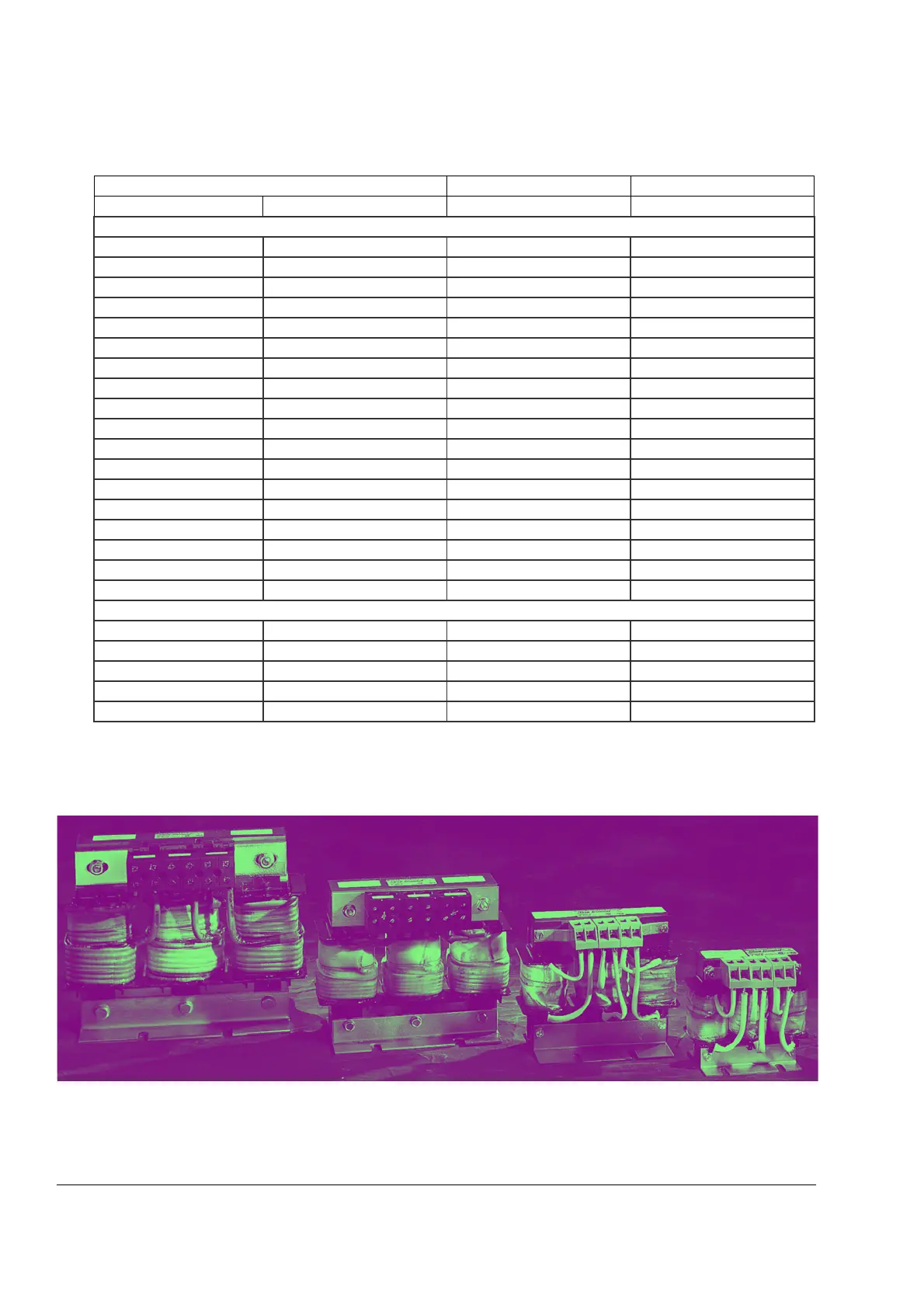

Line reactors L
L1
for North America
Recommended AC Line Reactors are available directly from TCI.
For information, see their web page www.transcoil.com
Unit Type Line Choke for Config. A Line Choke for Config. B
2Q Converters 4Q Converters 1.5% imp. 5% imp.
500 Vdc
DCS800-S01-0020-05 DCS800-S02-0025-05 KLR21BTB KLR21CTB
DCS800-S01-0045-05 DCS800-S02-0050-05 KLR45BTB KLR45CTB
DCS800-S01-0065-05 DCS800-S02-0075-05 KLR80BTB KLR80CTB
DCS800-S01-0090-05 DCS800-S02-0100-05 KLR110BCB KLR110CCB
DCS800-S01-0125-05 DCS800-S02-0140-05 KLR130BCB KLR130CCB
DCS800-S01-0180-05 DCS800-S02-0200-05 KLR200BCB KLR200CCB
DCS800-S01-0230-05 — KLR200BCB KLR200CCB
— DCS800-S02-0260-05 KLR250BCB KLR250CCB
DCS800-S01-0315-05 DCS800-S02-0350-05 KLR300BCB KLR300CCB
DCS800-S01-0405-05 — KLR360BCB KLR360CCB
DCS800-S01-0470-05 DCS800-S02-0450-05 KLR420BCB KLR420CCB
— DCS800-S02-0520-05 KLR480BCB KLR480CCB
DCS800-S01-0610-05 DCS800-S02-0680-05 KLR600BCB KLR600CCB
DCS800-S01-0740-05 DCS800-S02-0820-05 KLR750BCB KLR750CCB
DCS800-S01-0900-05 — KLR750BCB KLR750CCB
— DCS800-S02-1000-05 KLR850BCB KLR850CCB
DCS800-S01-1200-05 DCS800-S02-1200-05 KLR1100BCB KLR1100CCB
DCS800-S01-1500-05 DCS800-S02-1500-05 KLR1250BCB KLR1250CCB
600 Vdc
DCS800-S01-0290-06 — KLR250BCB KLR250ECB
— DCS800-S02-0320-06 KLR300BCB KLR300ECB
DCS800-S01-0590-06 DCS800-S02-0650-06 KLR600BCB KLR600ECB
DCS800-S01-0900-06 DCS800-S02-0900-06 KLR750BCB KLR750ECB
DCS800-S01-1500-06 DCS800-S02-1500-06 KLR1250BCB KLR1250ECB

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
