The DCS800
15
3ADW000194R0611 DCS800 Hardware Manual f us
The DCS800
What this chapter contains
This chapter describes briefly the operating principle and construction of the
converter modules in short.
The DCS800

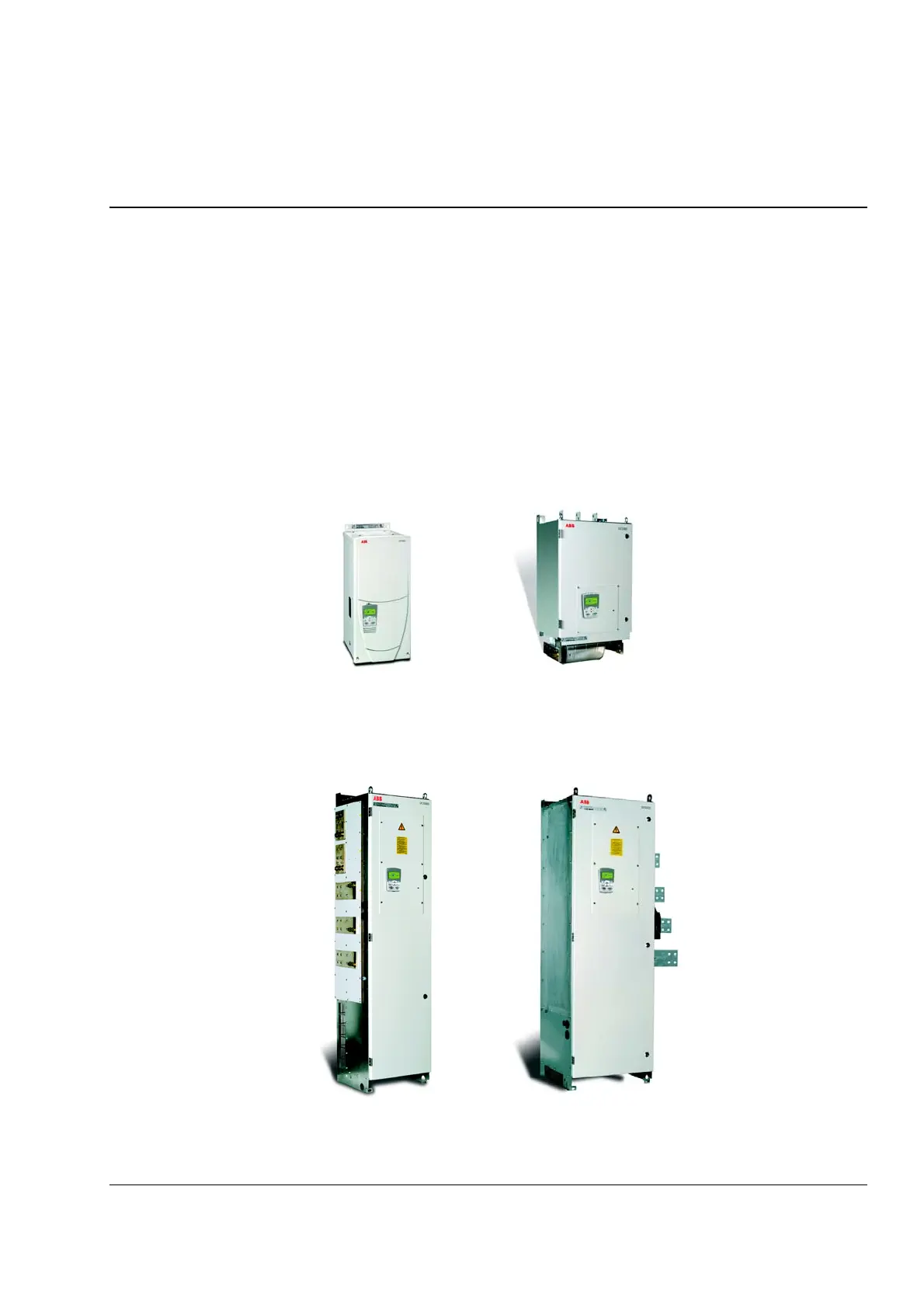

The DCS800-S size D1...D7 are intended for controlling DC motors.
Size D1...D4
20...1000 A
Size D5
900...2000 A
Size D6
1900...3000 A
Size D7
2050...5200
