ABB DCS800 Hardware Manual

Mechanical installation
22
3ADW000194R0611 DCS800 Hardware Manual f us
Before installation
The drive must be installed in an upright position with the cooling section facing a
wall. Check the installation site according to the requirements below. Refer to
Dimensional drawings for frame details.
Requirements for the installation site
See Technical data for the allowed operation conditions of the drive.
Wall
The wall should be as close to vertical as possible, of non-flammable material and
strong enough to carry the weight of the unit. Check that there is nothing on the wall
to inhibit the installation.
Floor
The floor/material below the installation should be non-flammable.
Free space around the unit
Required free space around the drive to enable cooling air flow, service and
maintenance see chapter Dimensional drawings.
Cabinet installation
The required distance between parallel units is five millimetres (0.2 in.) in
installations without the front cover. The cooling air entering the unit must not
exceed +40 °C
(+104 °F).

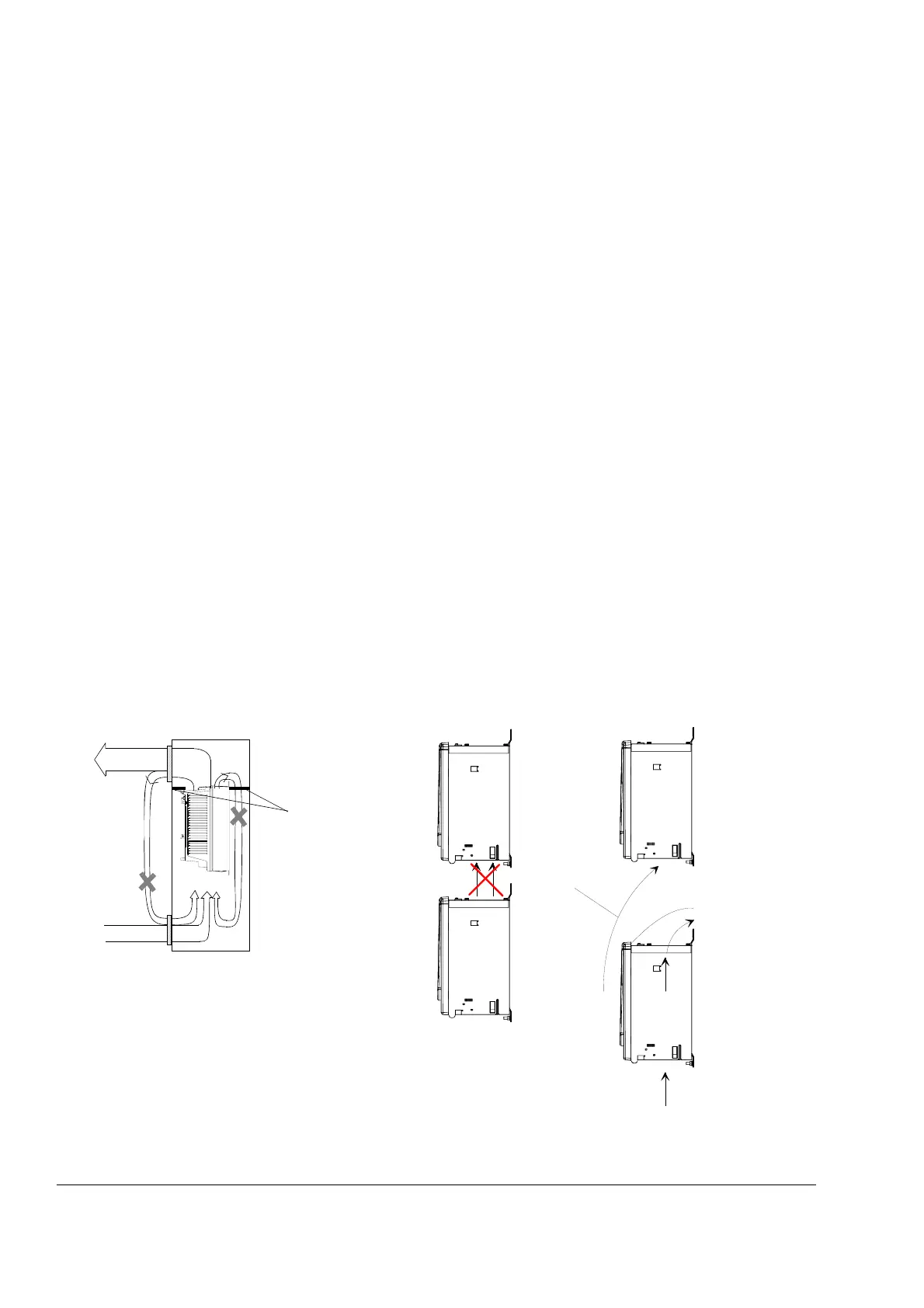

Preventing cooling air recirculation
Prevent air recirculation inside and outside the cabinet.
Unit above another
Lead the exhaust cooling air away from the unit above.
Distances see chapter Dimensional drawings
HOT
Main air flow out
Main air flow in
Air baffle plates
COOL AREA
max.+40 °C (+104 °F)
Air baffle plate
Airflow
Cooling w baffle.dsf

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
