Mechanical installation
21
3ADW000194R0611 DCS800 Hardware Manual f us
Mechanical installation

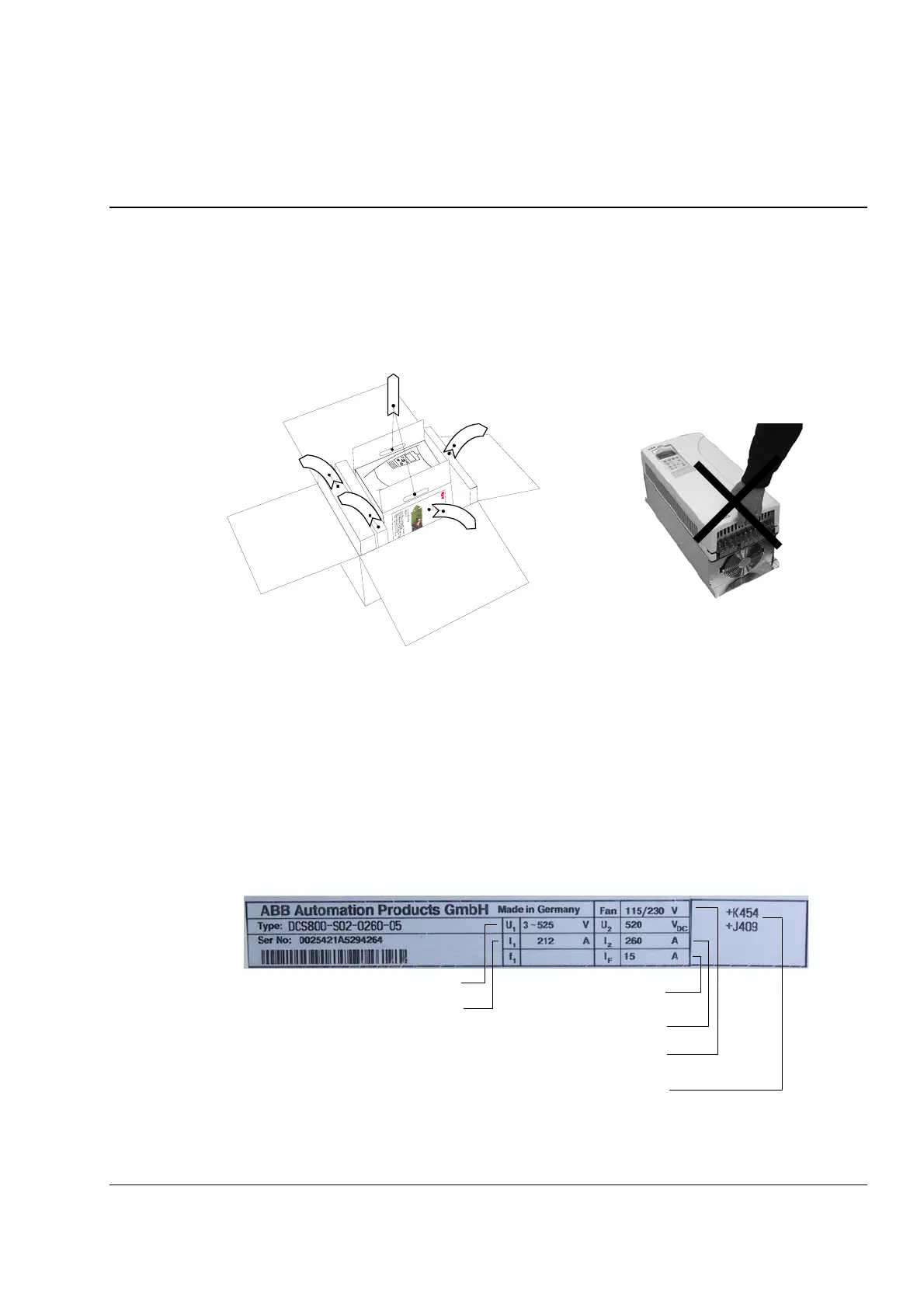

Unpacking the unit
• open box
• take out shock dampers
• separate manual and accessories
• do not lift the drive by cover.
Delivery check
Check that there are no signs of damage. Before attempting installation and
operation, check the information on the type designation label of the drive to verify
that the unit is of the correct type. The label includes an IEC rating,
C
UL
US
and CE
markings, a type code and a serial number, which allow individual identification of
each unit. The remaining digits complete the serial number so that there are no two
units with the same serial number.
Example labels are shown below.
4
5
3
2
1
Type designation label
Rated input voltage
Rated input current
Rated output current
Rated internal
field exciter current
Rated fan voltage
Plus code
