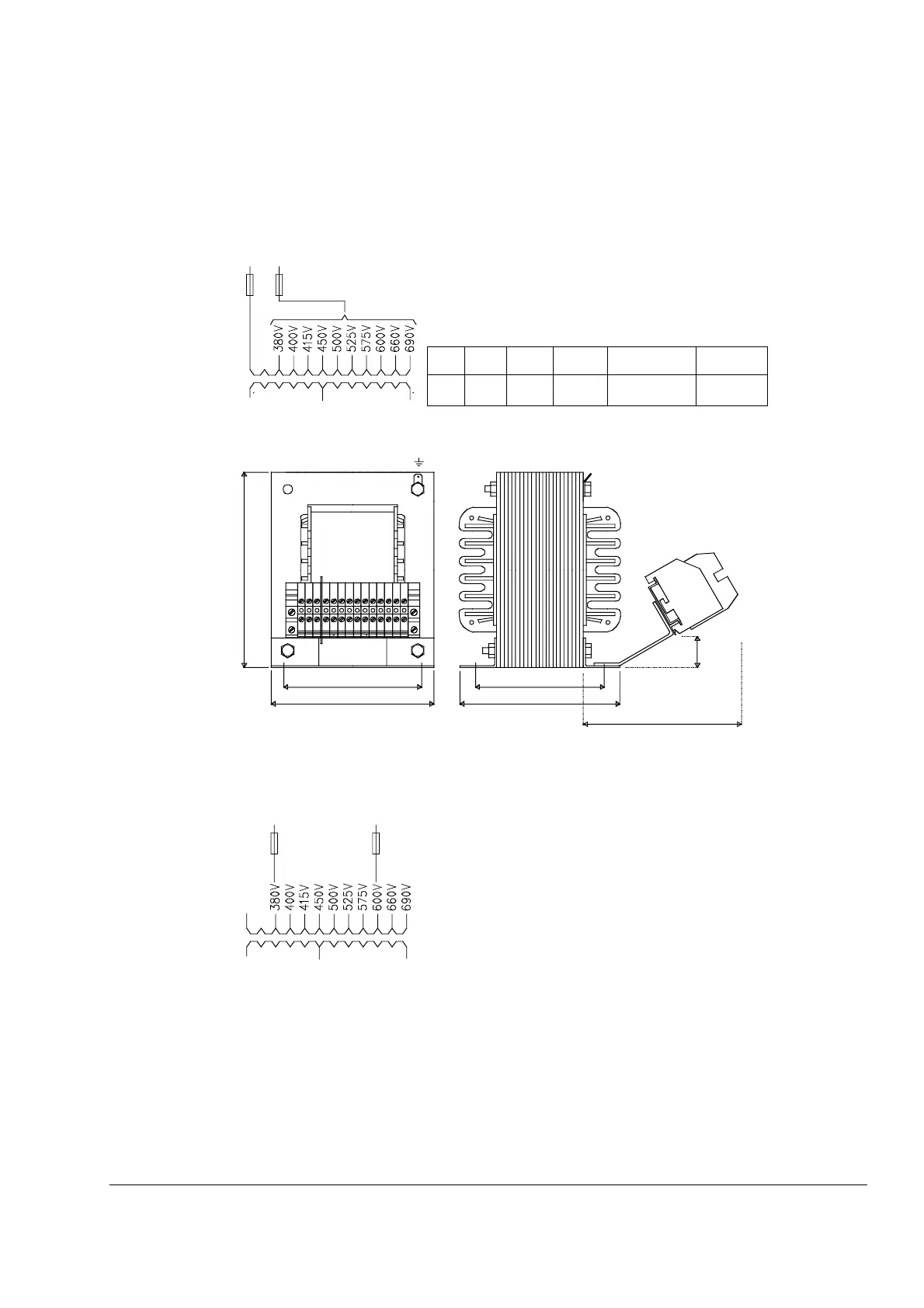

Supply transformer T2 for electronics and fan
The supply transformer T2 has been re-designed. The new power and current rating allows to supply
then 2-phase fans and the electronics by one transformer only in case D5 converters are used in a
12-pulse configuration.
Application hint:
F2
T2
0 V115 V230 V
T2_a.dsf
Input voltage: 230/380...690 V/1~; ±10%
Frequency: 50...60 Hz
Output voltage: 115/230 V/1~
Type Power Weight Fuse F2 I
sec
Power loss
[VA] [kg] [A] [A] [W]
T2 1400 15 16 6 (0...230 V)
12 (0...115 V)
100
150
106
125
128
148
100 +-5
35
0
115
230
0
380 400 415 450 500 525 575 600 660 690
6.3 mm Faston
T2_dim.dsf
F2
T2
0 V115 V230 V
T2_a.dsf
230 V
The transformer is designed to work as a 230 V / 230 V transformer to open/
avoid ground loops. This is done via the 380 V and 600 V taping according to
the left picture.
