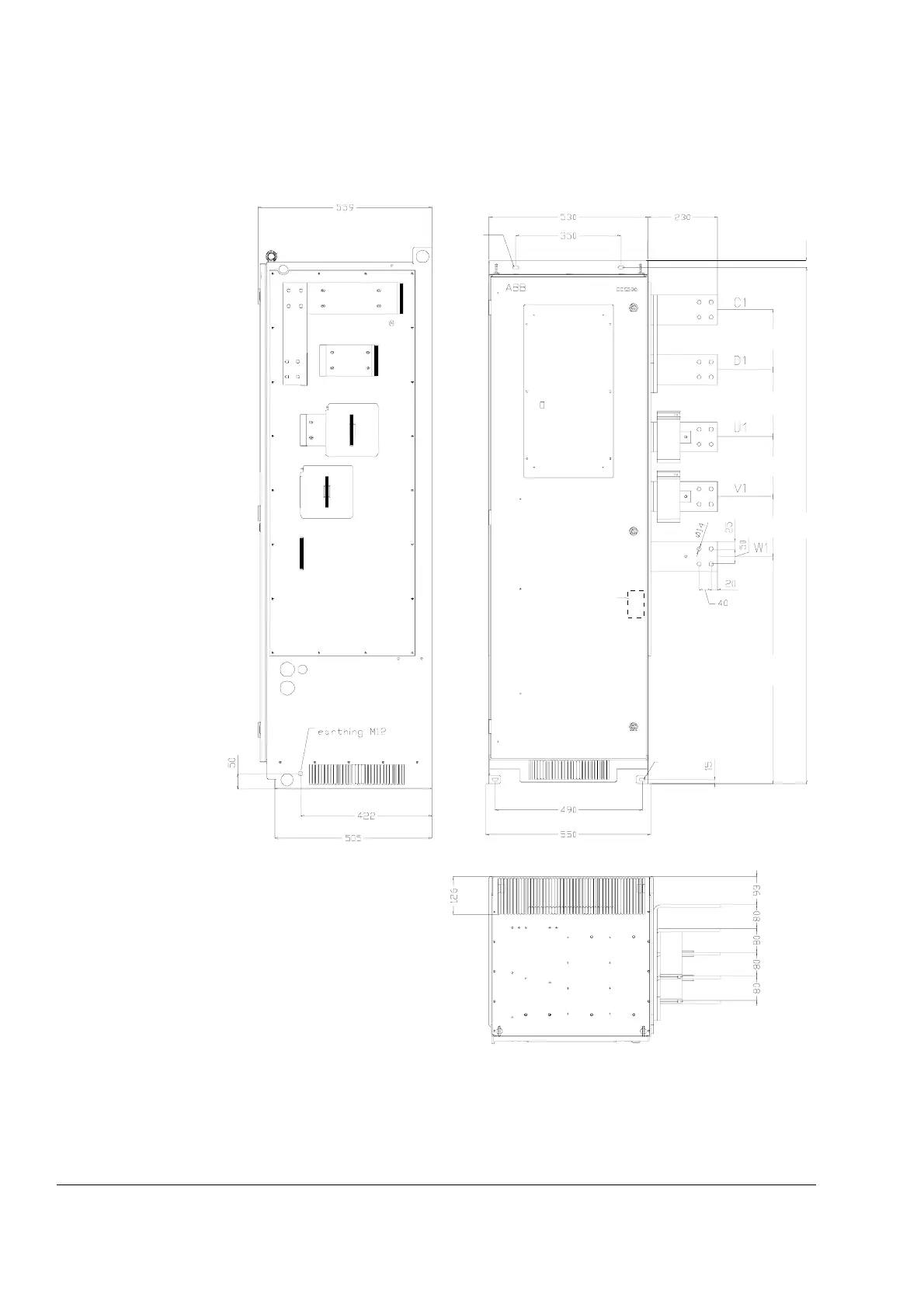

Dimensional drawings
110
3ADW000194R0611 DCS800 Hardware Manual f us
Module D7
right-hand
DCS800-S0x-2050-xxR
DCS800-S0x-2600-xxR
DCS800-S0x-3300-xxR
DCS800-S0x-4000-xxR
DCS800-S0x-4800-xxR
DCS800-S0x-5200-xxR
Weight appr. 315 kg
A7_dim_a.dsf
200225200200
1725
759.5
25
for M10
for M10
Pressure switch
*
Busbars in mm:
AC and DC 100 x 10
