ABB DCS800 - Dimensional Drawings; Module D1; Module D2; Module D3

Dimensional drawings
105
3ADW000194R0611 DCS800 Hardware Manual f us
Dimensional drawings

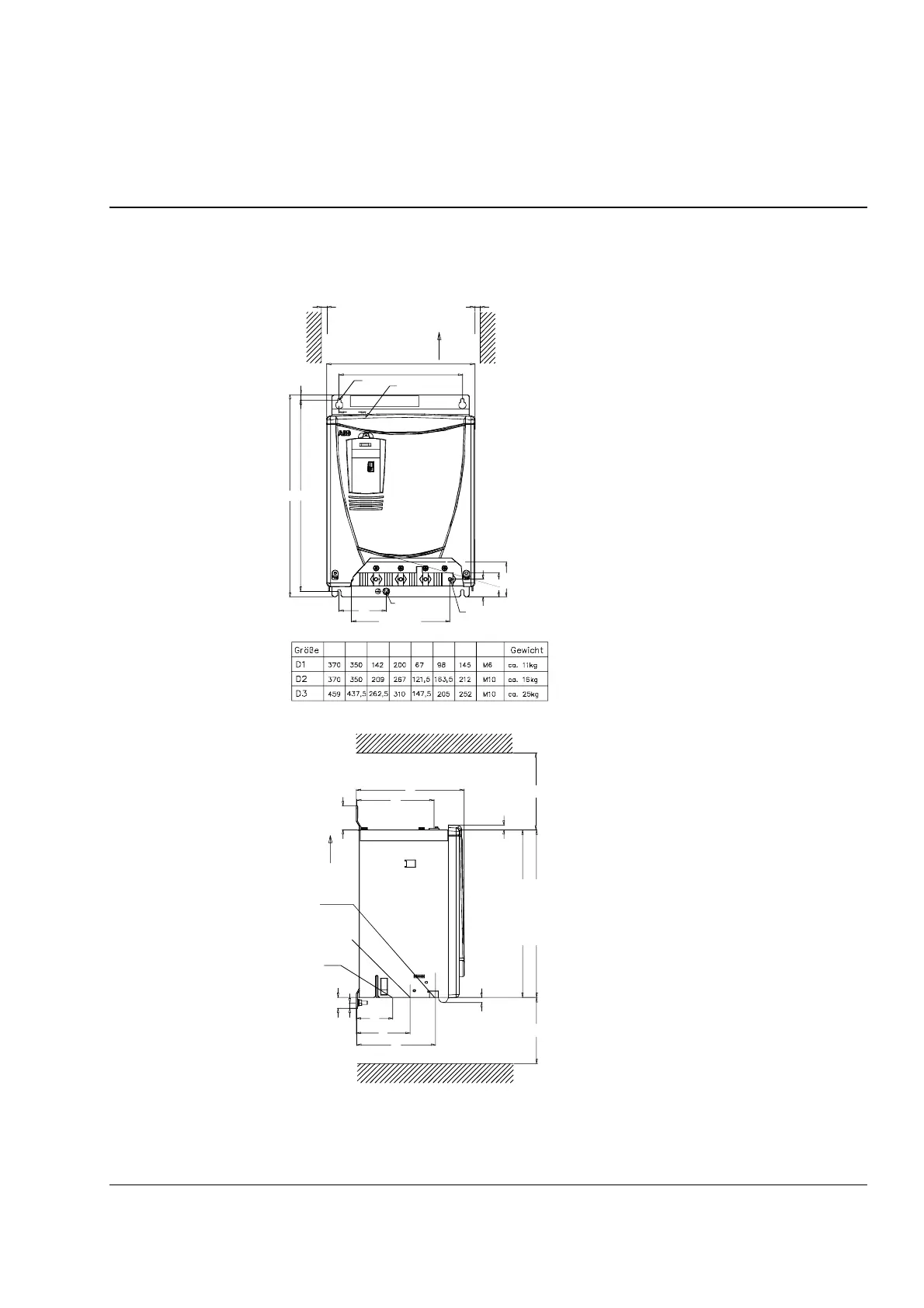

Dimensional drawings of the DCS800 are shown below. The dimensions are given in
milllimeters.
Module D1
DCS800-S01-0020
DCS800-S01-0045
DCS800-S01-0065
DCS800-S01-0090
DCS800-S01-0125
DCS800-S02-0025
DCS800-S02-0050
DCS800-S02-0075
DCS800-S02-0100
DCS800-S02-0140
Module D2
DCS800-S01-0180
DCS800-S01-0230
DCS800-S02-0200
DCS800-S02-0260
Module D3
DCS800-S01-0315
DCS800-S01-0405
DCS800-S01-0470
DCS800-S02-0350
DCS800-S02-0450
DCS800-S02-0520
600 V types
DCS800-S01-0290
DCS800-S02-0320
S = 5 mm
S = 10 mm
S
S
H
A B
AB CDEF GH
4x45=180
86
32.5
45
64.5
C1 U1 V1 W1 D1
10
270
225
48.5
D1toD3_dim_b.dsf
E
F
G
10.5
T2
T1
C
D
43.5
8.7
9
20
Power connection
Field and power
supply terminals
Signal terminals
Mounting direction
310 for size D1/D2
400 for size D3
Minimum Bottom clearance
T2 = 100mm for size D1 T2 = 150mm for size D2/D3
Minimum Top clearance
T1 = 150mm for size D1 T1 = 250mm for size D2/D3
