Electrical installation
57
3ADW000194R0611 DCS800 Hardware Manual f us

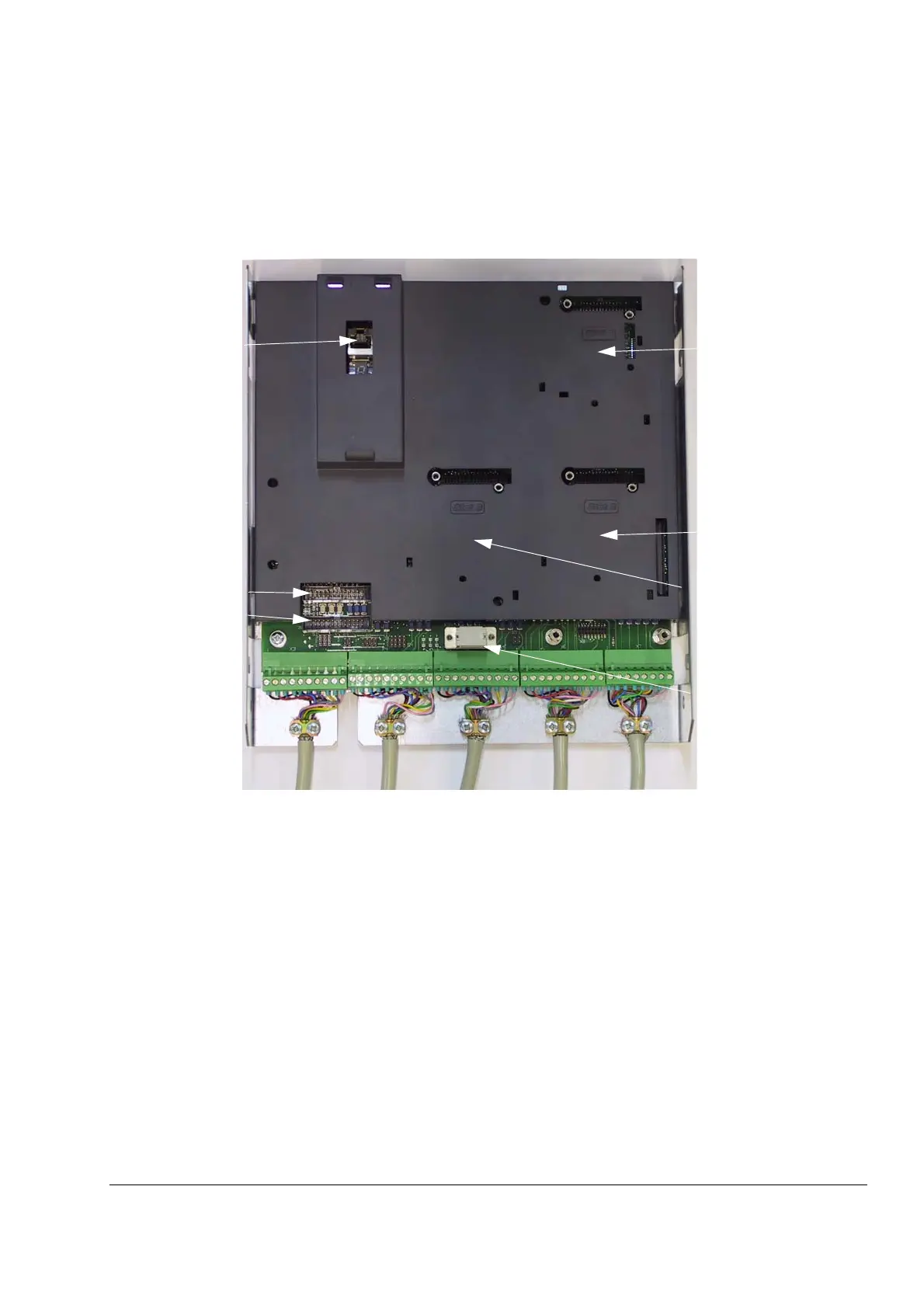

Location R-Extension and Interface Modules
Connect the signal cables as described below. Tighten the screws to secure the
extension modules.
Interface connector
X2: SDCS-IOB-3
X1: SDCS-IOB-2
DCS800
Panel connector
X33:
SLOT 1
R IO Extension module
or
R-Fieldbus module
SLOT 2
R IO Extension module
SLOT 3
R IO Extension module
or
R DDCS interface
board
X34:
PCTool
DriveWindow Light
AP Tool
Commissioning assi-
stant
