ABB DCS800 Hardware Manual

Planning the electrical installation
29
3ADW000194R0611 DCS800 Hardware Manual f us

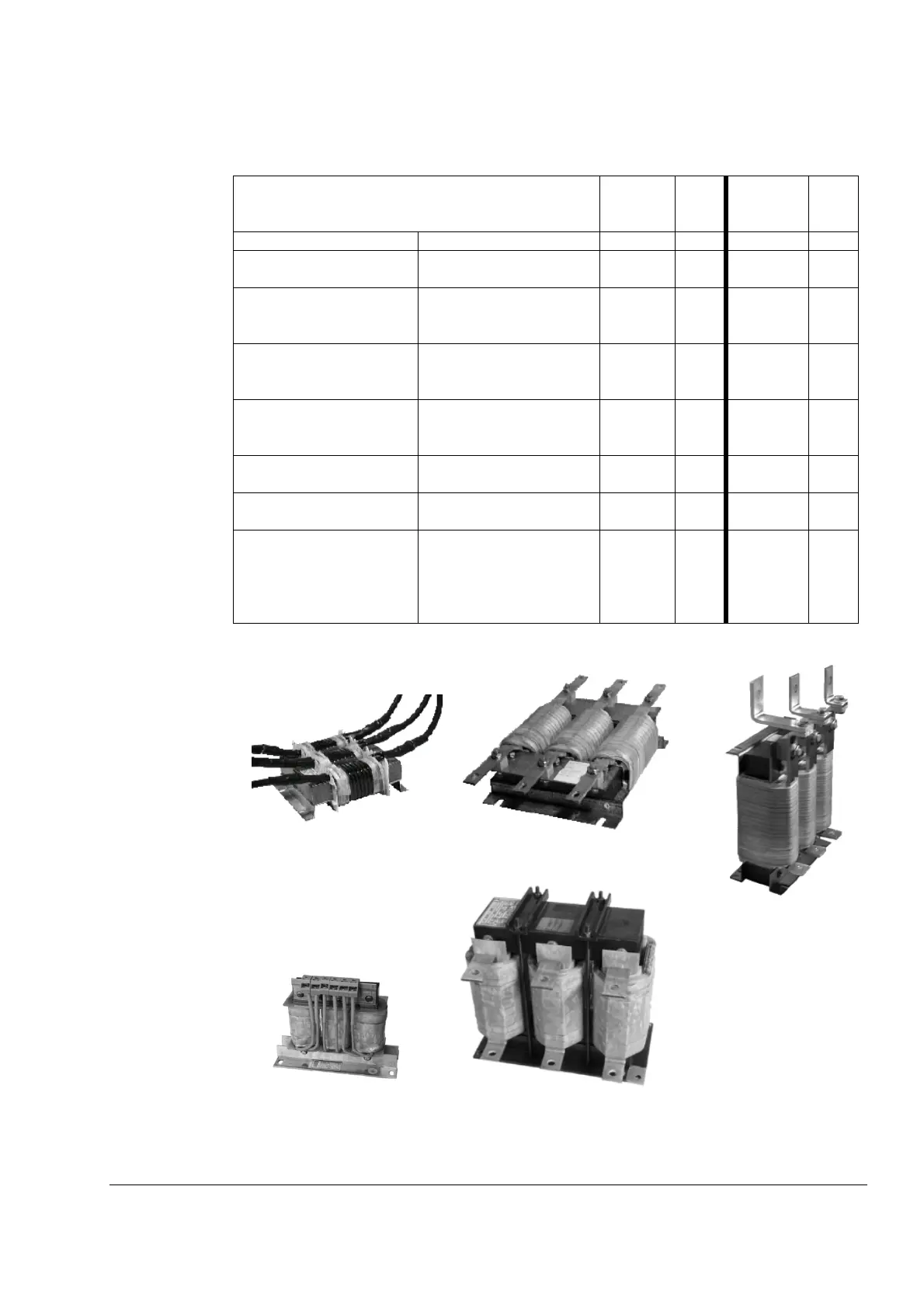

Line reactors L
L1
* with forced cooling (1m/s)
DCS Type
400V-690V
50/60 Hz
Line choke Design Line choke Design
type for Fig. type for Fig.
configur. A configur. B
2-Q Converter 4-Q Converter
DCS800-S01-0020-04/05 DCS800-S02-0025-04/05 ND01 1 ND401 4
DCS800-S01-0045-04/05 DCS800-S02-0050-04/05 ND02 1 ND402 4
DCS800-S01-0065-04/05 DCS800-S02-0075-04/05 ND04 1 ND403 5
DCS800-S01-0090-04/05 DCS800-S02-0100-04/05 ND06 1 ND404 5
DCS800-S01-0125-04/05 DCS800-S02-0140-04/05 ND06 1 ND405 5
DCS800-S01-0180-04/05 DCS800-S02-0200-04/05 ND07 2 ND406 5
DCS800-S01-0230-04/05 DCS800-S02-0260-04/05 ND07 2 ND407 5
DCS800-S01-0290-06 DCS800-S02-0320-06 ND08 2 on request -
DCS800-S01-0315-04/05 DCS800-S02-0350-04/05 ND09 2 ND408 5
DCS800-S01-0405-04/05 DCS800-S02-0450-04/05 ND10 2 ND409 5
DCS800-S01-0590-06 DCS800-S02-0650-06 ND13 3 on request -
DCS800-S01-0470-04/05 DCS800-S02-0520-04/05 ND10 2 ND410 5
DCS800-S01-0610-04/05 DCS800-S02-0680-04/05 ND12 2 ND411 5
DCS800-S01-0740-04/05 DCS800-S02-0820-04/05 ND13 3 ND412 5
DCS800-S01-0900-04/05 DCS800-S02-1000-04/05 ND13 3 ND413 5
DCS800-S01-0900-06/07 DCS800-S02-0900-06/07 ND13 3 on request -
DCS800-S01-1200-04/05 DCS800-S02-1200-04/05 ND14 3 on request -
DCS800-S01-1500-04/05/06/07 DCS800-S02-1500-04/05/06/07 ND15 3 on request -
DCS800-S01-2000-04/05 DCS800-S02-2000-04/05 ND16 3 on request -
DCS800-S01-2000-06/07 ND16 * 3 on request -
Fig. 1 Fig. 2
Fig. 3
Fig. 4 Fig. 5

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
