ABB DCS800 Hardware Manual

Mechanical installation
24
3ADW000194R0611 DCS800 Hardware Manual f us

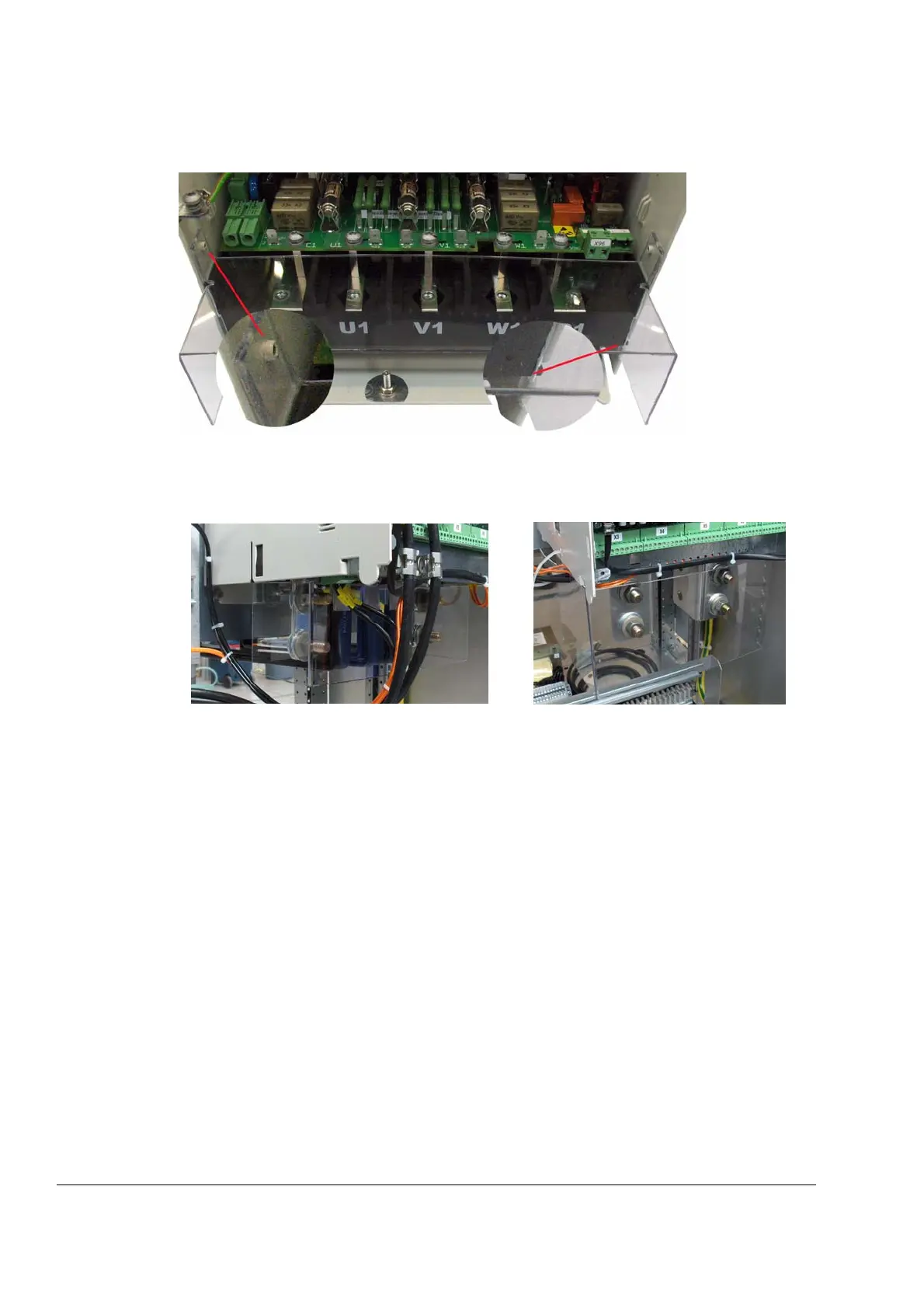

Mounting the D1/D2 cover by using the excisting lateral pins and than swing downward to snap-in at the
terminal row. D3 and D4 mounting is accordingly, without the snap-in mechanism.
Examples for covering the DC main terminals on D3 (left) and D4 (right) converter modules.

ABB DCS800 Specifications

General

Control Type	Digital
Supply Voltage	380 ... 690 V AC
Input Voltage Range	380 V to 690 V AC
Control Mode	Torque, Speed
Cooling Method	Air-cooled
Communication Protocols	Modbus, Profibus, CANopen
Communication Options	Ethernet
Protection Class	IP21, IP54
Enclosure Rating	IP00, IP21, IP54
Protection	Overcurrent, Overvoltage, Overtemperature
Ambient Temperature	0 to 40°C
Field Supply	Integrated or External
