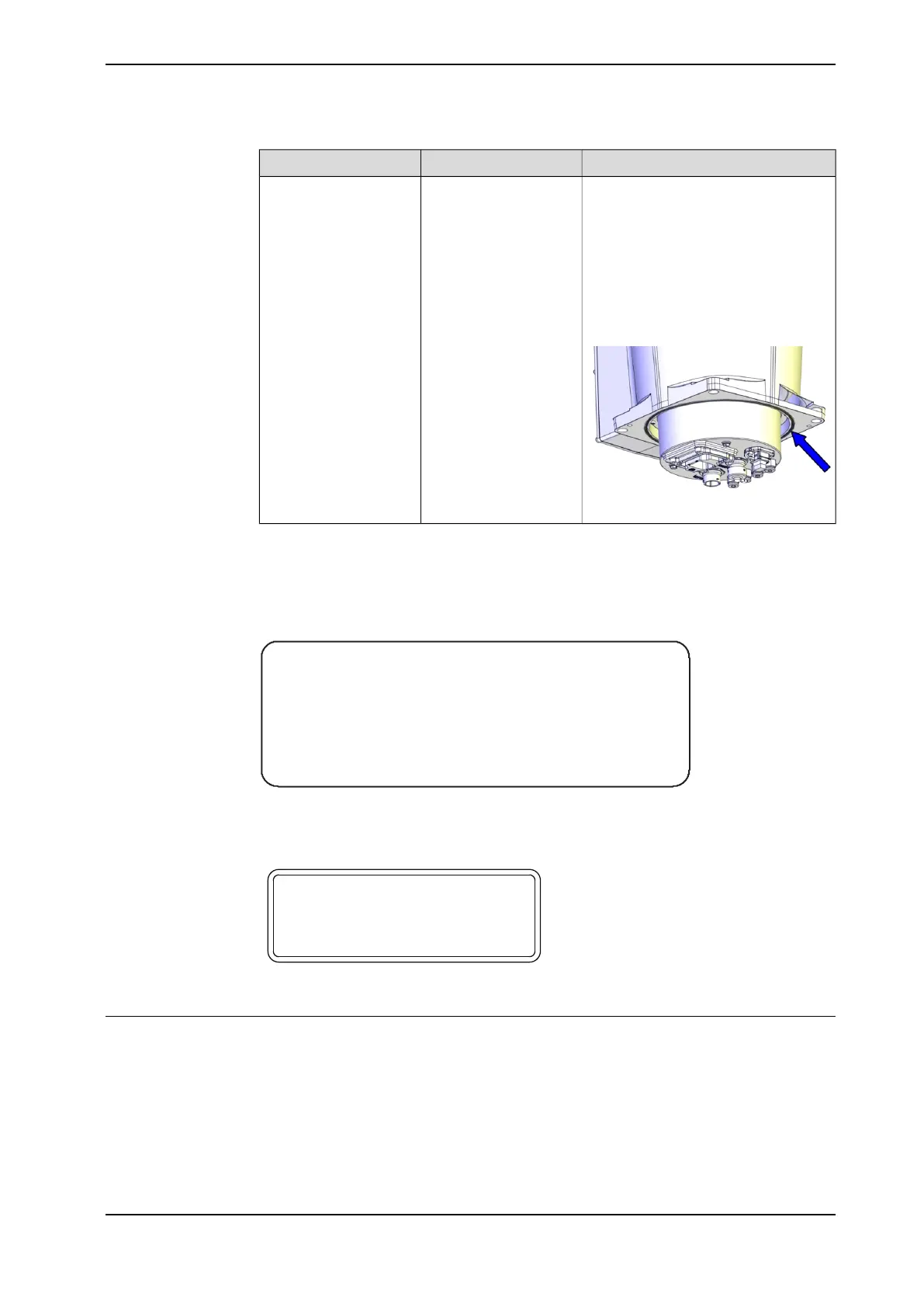

ABB IRB 1200 - Page 43

NoteArt. no.Equipment
For robots with protection class IP673HAB3772-141O-ring
For robots with protection type Foundry
Plus
For robots with protection type Clean
Room
For robots with food grade lubrication
For robots with protection type Hygienic
Used with manipulator cables routed
from below
xx1500000241
A label, as shown in the following, is fitted on the connector to remind the fitting
of extra O-ring 3HAB3772-19. The label must be removed before the O-ring and
main cable is fitted.
Label for IP67, Foundry Plus, Clean Room and food grade lubrication robots
3HAC063211-001
E
xtra O-ring 3HAB3772-19 (delivered in
Accessories) for protection class IP67,
protection type Foundry Plus and Clean
Room must be fitted .
ᆇփ
仌㢢ⲭᓅ唁ᆇ
ᶀᯉ
㛼䶒㠚㋈
xx1700001298
Label for Hygienic robots
3HAC079172-001
Extra O-ring 3HAB3772-19 (delivered in
Accessories) must be fitted .
xx2100001272
Further information
For installation information, see Orienting and securing the robot on page 74 and
Electrical connections on page 106.
Product manual - IRB 1200 43
3HAC046983-001 Revision: S
© Copyright 2014 - 2021 ABB. All rights reserved.
2 Installation and commissioning
2.2.1 Extra O-rings
Continued
