2.3.7 Fitting of equipment on the robot
2.3.7.1 Introduction to fitting of equipment
General

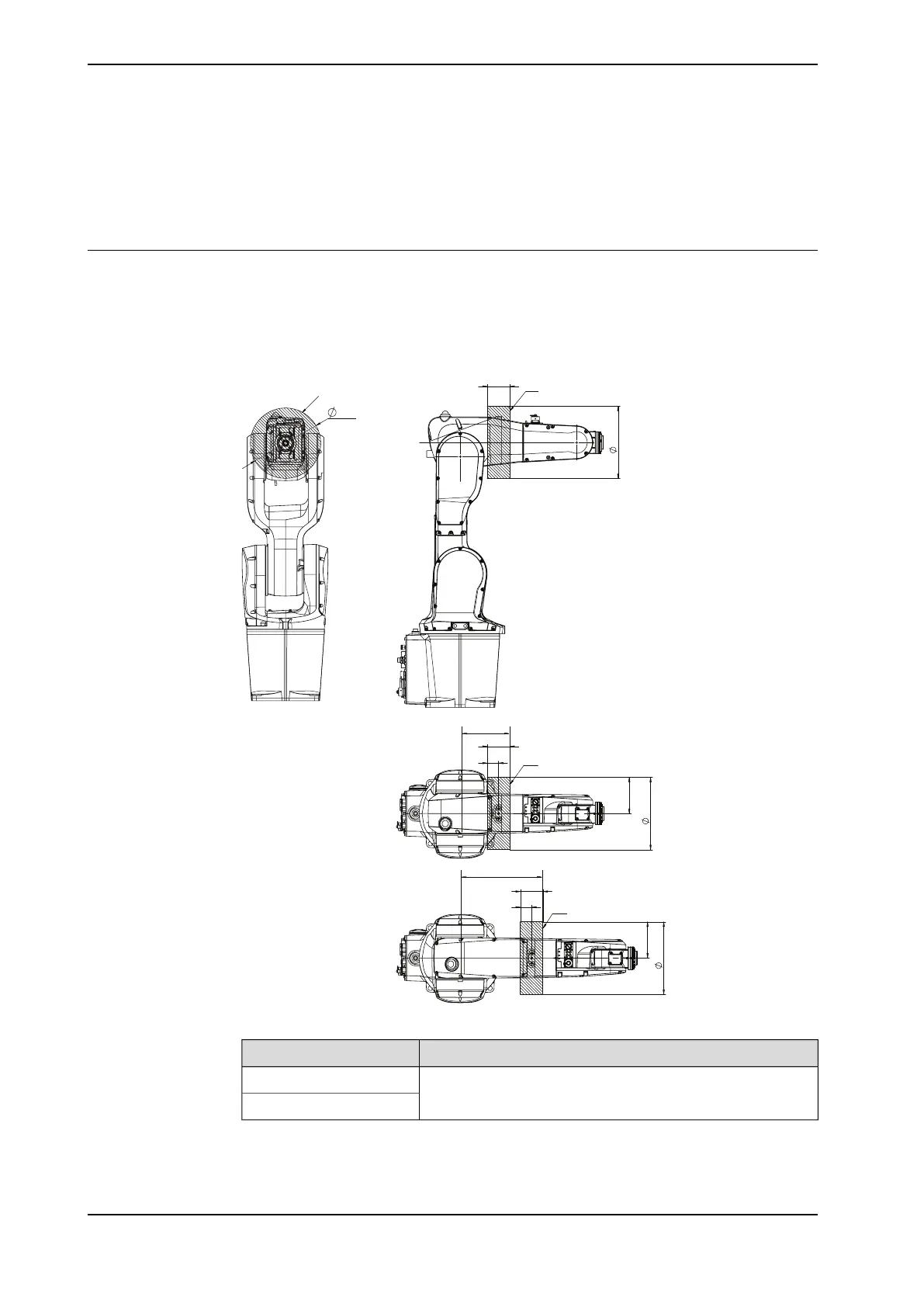

Extra loads can be mounted on to the upper arm. Definitions of load area and
permitted load are shown in figure below. The center of gravity of the extra load
shall be within the marked load areas. The robot is supplied with holes for fitting
of extra equipment. (See Holes for fitting extra equipment on page 85).
216
68
68
216
34
108
34
68
216
108
(A)
216
(A)
(A)
(A)
IRB 1200-7/0.7
IRB 1200-5/0.9
150
250
xx1300000384
Max loadLoad area (A)
0.3 kgIRB 1200-5/0.9
IRB 1200-7/0.7
