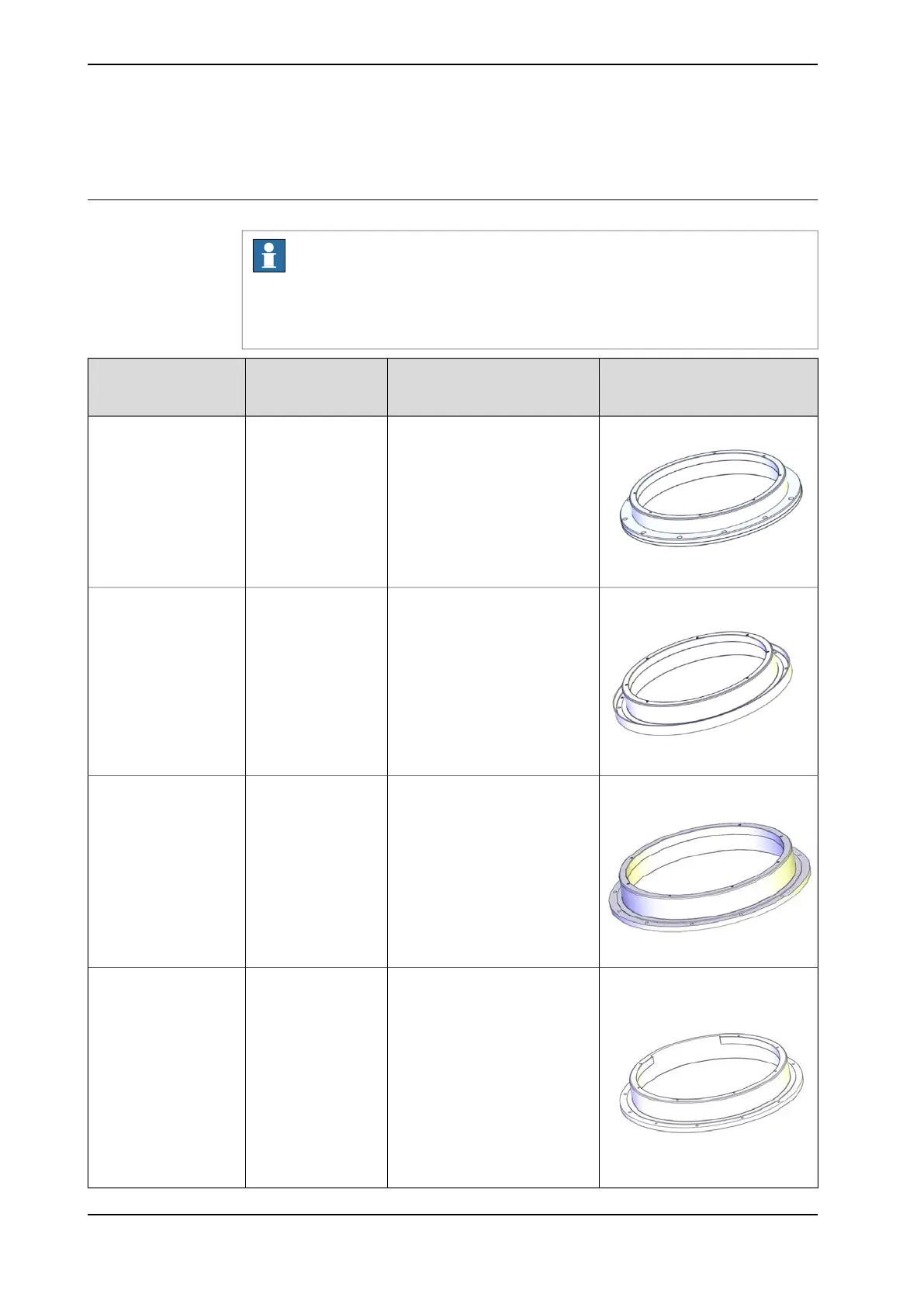

7.4.3 Spare part versions for the axis-1 sealing ring on IP40/IP67 robots
Spare part versions for the axis-1 sealing ring on IP40/IP67 robots
Note
IRB 1200 has different axis-1 sealing ring versions that are not compatible with
each other. Always use the following list as a reference to check the sealing ring
installed on robot and order the correct spare parts.
How to see which version is in-
stalled on robot
What to orderArticle number in
WebConfig
Sealing ring installed
on robot (spare part
number)
The sealing ring is flat.
xx1600000125
Order:
• sealing ring 3HAC044676-
001
3HAC044676-0013HAC044676-001
The sealing ring has one folded
wall on both sides.
xx1600000126
Order:
• IP40: sealing ring
3HAC068107-001
• IP67: sealing ring + gasket
+ V-ring 3HAC059791-001
3HAC056658-0013HAC056658-001
The sealing ring is flat and the
edge is thinner.
xx1600001039
Order:
• sealing ring 3HAC068107-
001
3HAC058568-0013HAC058568-001
The sealing ring has a gap in the
inner side.
xx1900001603
Order:
• sealing ring 3HAC068107-
001
3HAC068107-0013HAC068107-001
Continues on next page
878 Product manual - IRB 1200
3HAC046983-001 Revision: S
