4.3.2 Replacing the axis-4 FPC unit, housing extender unit and housing extender
sealings
Location of the FPC unit

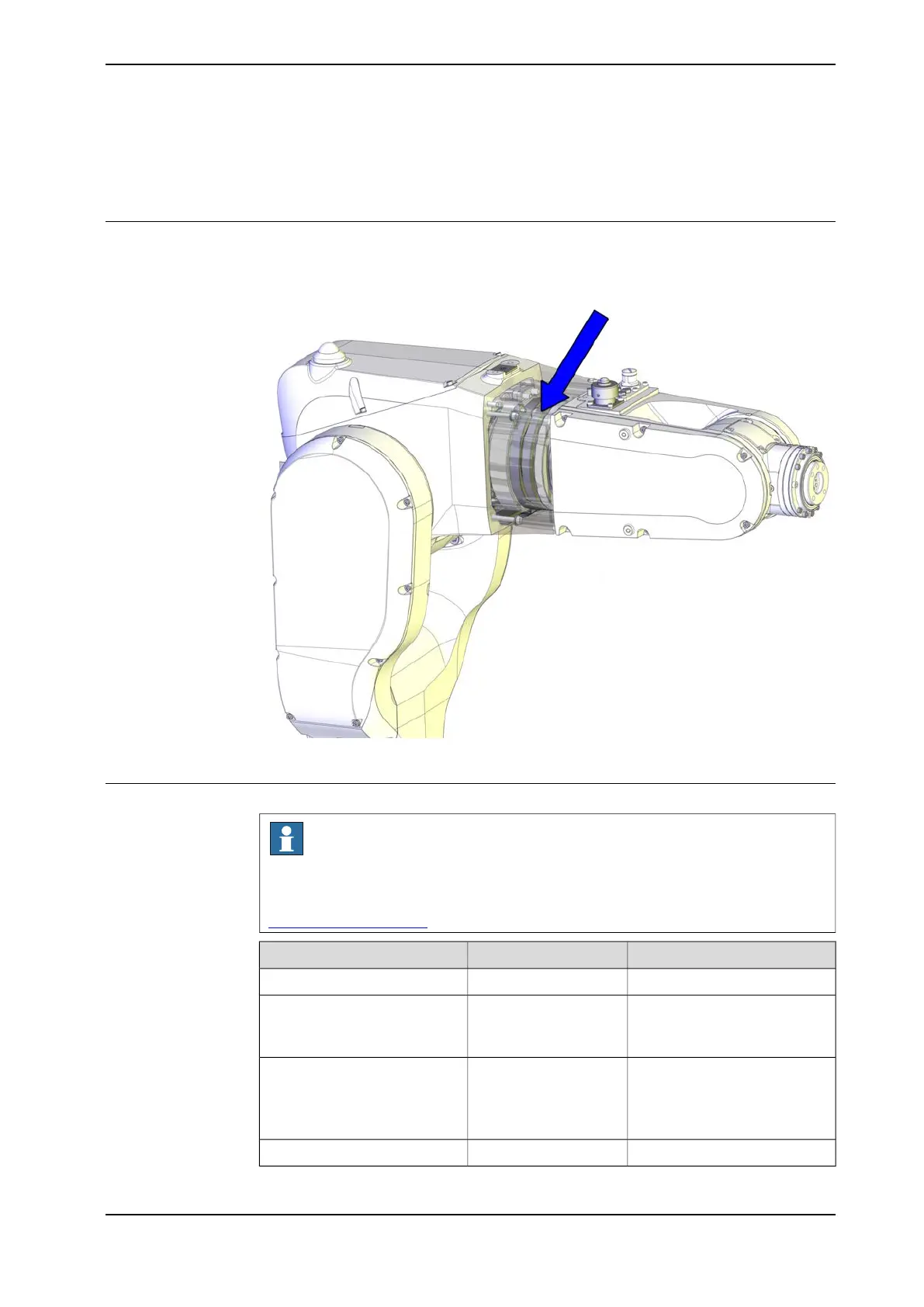

The axis-4 FPC unit and the housing extender sealings are located inside the
housing extender unit, as shown in the figure.
xx1300002419
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the IRB 1200 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
3HAC055517-001FPC unit, axis 4
Not used with protection class
IP40.
Replace if damaged.
3HAB3701-48Radial sealing with dust lip
Used with protection class IP67.
Used with protection type
Foundry Plus.
Replace if damaged.
3HAC044641-007M2 variseal sealing
Replace if damaged.3HAC059686-001Housing extender unit
Continues on next page
Product manual - IRB 1200 245
3HAC046983-001 Revision: S
© Copyright 2014 - 2021 ABB. All rights reserved.
4 Repair
4.3.2 Replacing the axis-4 FPC unit, housing extender unit and housing extender sealings
