ABB IRB 1200 - Page 66

NoteArticle numberEquipment, etc.
2 pcs. Length: 0.6 m. Lifting capacity:
60 kg.
-Roundsling, 0.6 m
2 pcs. Length: 1.5 m. Lifting capacity:
60 kg.
-Roundsling, 1.5 m
Includes lifting accessories, lifting
beam and screws.
3HAC049711-001Lifting accessory, robot

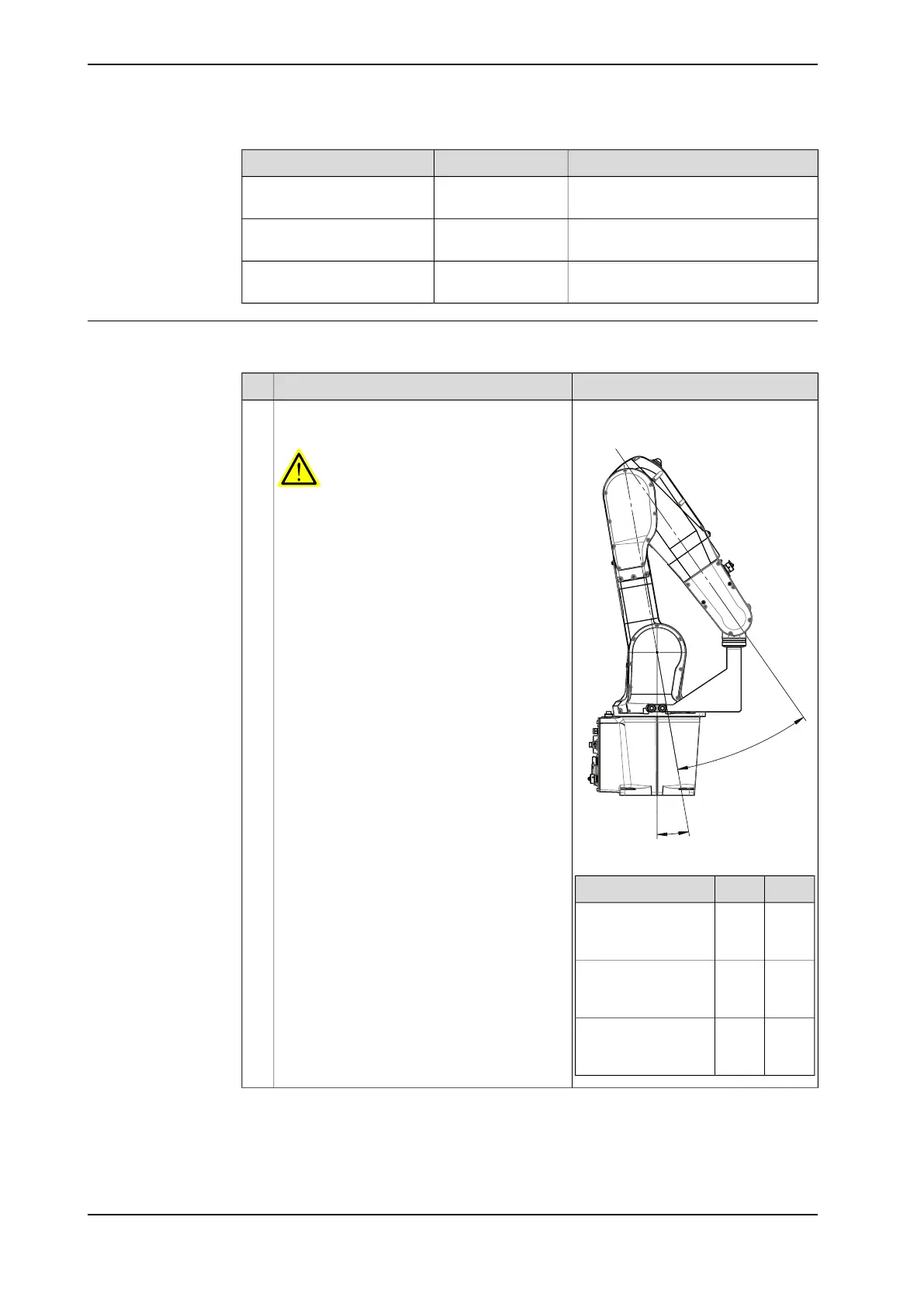

Lifting and turning the robot with roundslings
Use this procedure to lift the robot with roundslings.
NoteAction
Taking IRB 1200-5/0.9 as an example
B
A
xx1500001399
BA
25°10°IRB 1200 all variants
(not in protection
type Hygienic)
25.66°11.95°IRB 1200-7/0.7 (in
protection type Hy-
gienic)
25.48°11.77°IRB 1200-5/0.9 (in
protection type Hy-
gienic)
Move the robot to an appropriate lifting posi-
tion.
WARNING
The robot is likely to be mechanically unstable
if not secured to the foundation!
1
Continues on next page
66 Product manual - IRB 1200
3HAC046983-001 Revision: S
