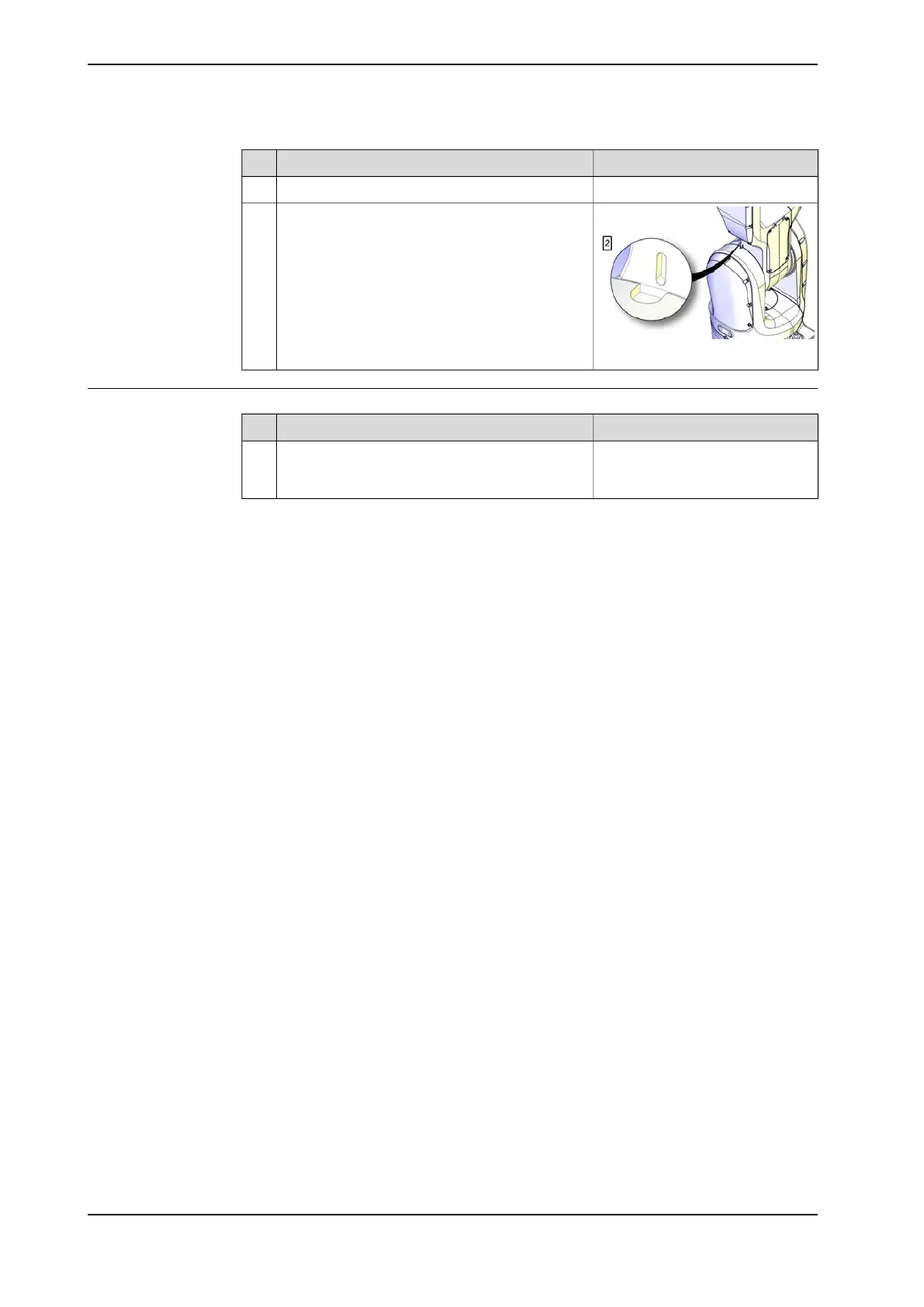

ABB IRB 1200 - Page 848

NoteAction
Jog axis 2 to zero degree using the FlexPendant.2
xx1400001093
Check that the synchronization marks on axis 2
are aligned with eachother.
Are they aligned within the tolerances?
• If yes, the calibration is verified OK.
• If no, redo the fine calibration procedure.
3
After calibration
NoteAction
Write down the new system parameters on a new
label and stick on top of the calibration label on
the robot.
1
848 Product manual - IRB 1200
3HAC046983-001 Revision: S
