ABB IRB 2600 Series - Page 236

NoteAction
A
B
C
xx0900000103

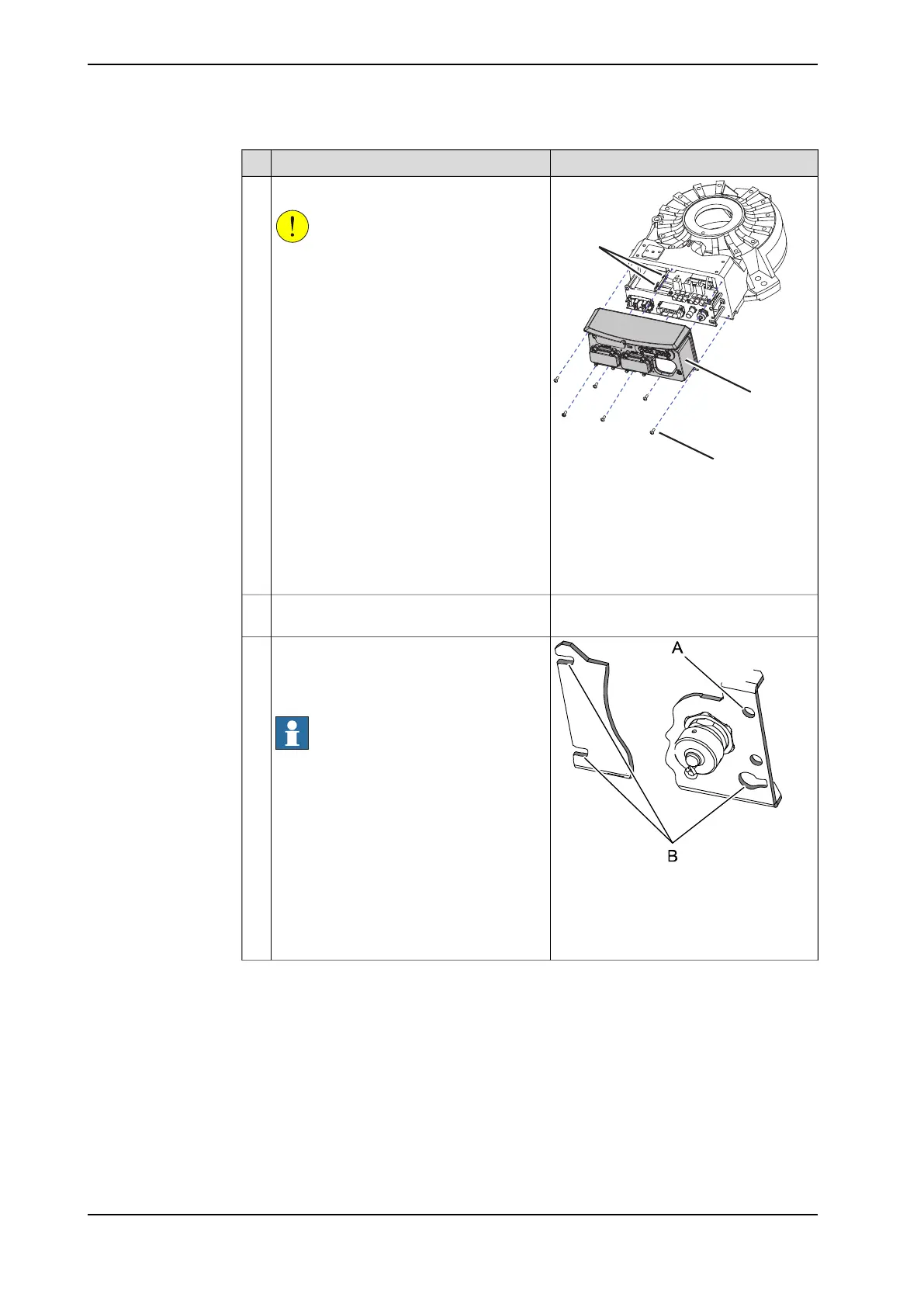

Remove the base cover.
CAUTION
Clean cover from metal residues before
opening.
Metal residues can cause shortage on the
boards which can result in hazardous fail-
ures.
3
Parts:
A Attachment screws (6 pcs)
B Base cover
C Cable straps, securing the battery
cable (2 pcs)
Cut the cable straps securing the battery
cable.
4
xx0900000100
Remove the screw that secures the bracket
and unscrew the three other screws a little
just enough to be able to slide the bracket
sideways.
Note
It is not needed to remove these three
screws.
5
Parts:
A Screw to be removed
B Screws to be unscrewed a little (3
pcs)
Continues on next page
236 Product manual - IRB 2600
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.3.4 Replacing SMB unit
Continued
