2.5.2 Installing an expansion container
Validity of this section
This section is only valid for IRB 2600-20/1.65, IRB 2600-12/1.65, IRB 2600-12/1.85,
IRB 2600ID-15/1.85, IRB 2600ID-8/2.0.
Introduction to the expansion container
The expansion container is needed on suspended robots (IRB 2600-20/1.65, IRB
2600-12/1.65, IRB 2600-12/1.85, IRB 2600ID-15/1.85, IRB 2600ID-8/2.0) to make
sure that the amount of oil in gearbox axis 1 covers all important parts. Robots
ordered as suspended robots have the expansion container installed on delivery.

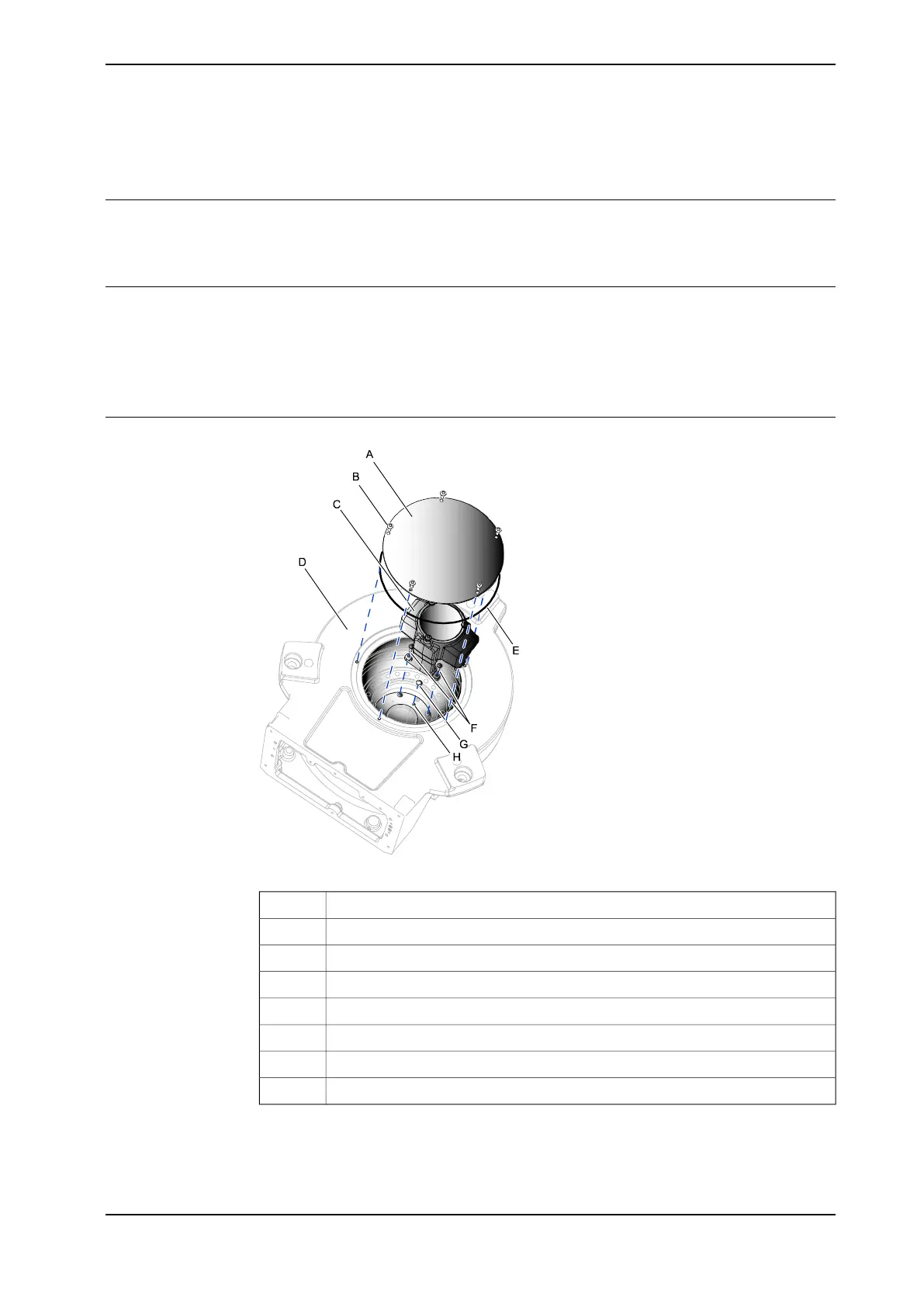

Expansion container
xx1000000318
CoverA
Attachment screw M6x16, quality 8.8-A2F (5 pcs)B
Oil expansion container with coverC
BaseD
O-ring D220x5E
Attachment screw M5x20, quality 8.8-A2F and washer (2+2 pcs)F
O-ring D1=9.5 D2=1.6G
Oil plug (to be removed)H
Continues on next page
Product manual - IRB 2600 97
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
2 Installation and commissioning
2.5.2 Installing an expansion container
