3.4.7 Changing oil, axes-5 and -6 gearboxes
Location of oil plugs

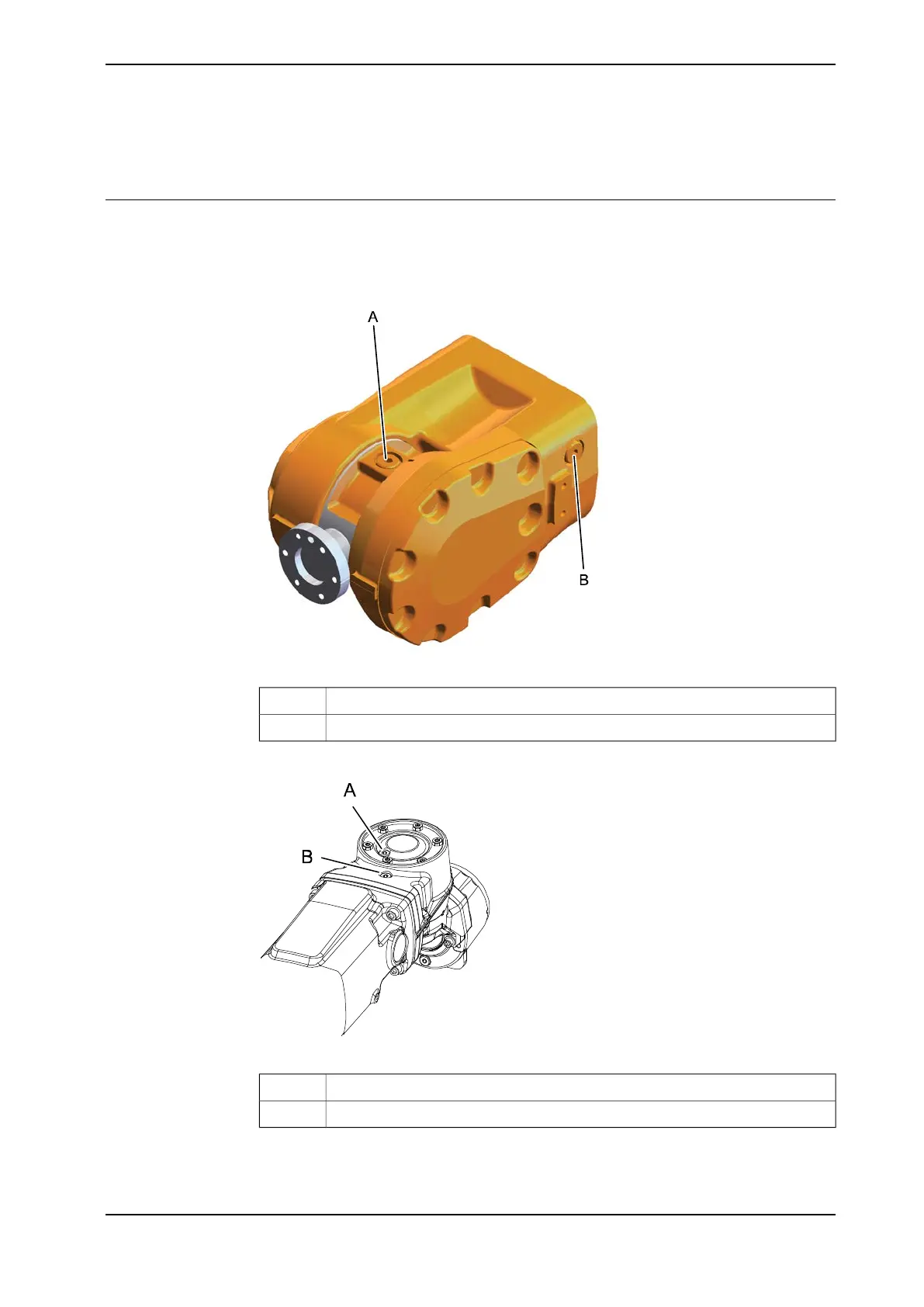

The axes-5 and -6 gearboxes are located in the wrist unit.
The oil plug is shown in the figure.
The figure shows wrist variant 12/20 kg
xx0900000139
Oil plug, tilthouseA
Oil plug, wrist (also used as air inlet when draining from oil plug A)B
Wrist IRB 2600ID shown in position for filling.
xx1000000987
Oil plug, fillingA
Oil plug, drainingB
Continues on next page
