2.5 Installing options
2.5.1 Installation of cooling fan for motors (option)
General
A cooling fan can be installed on motor axis 1 and/or axis 2!
Location of cooling fans

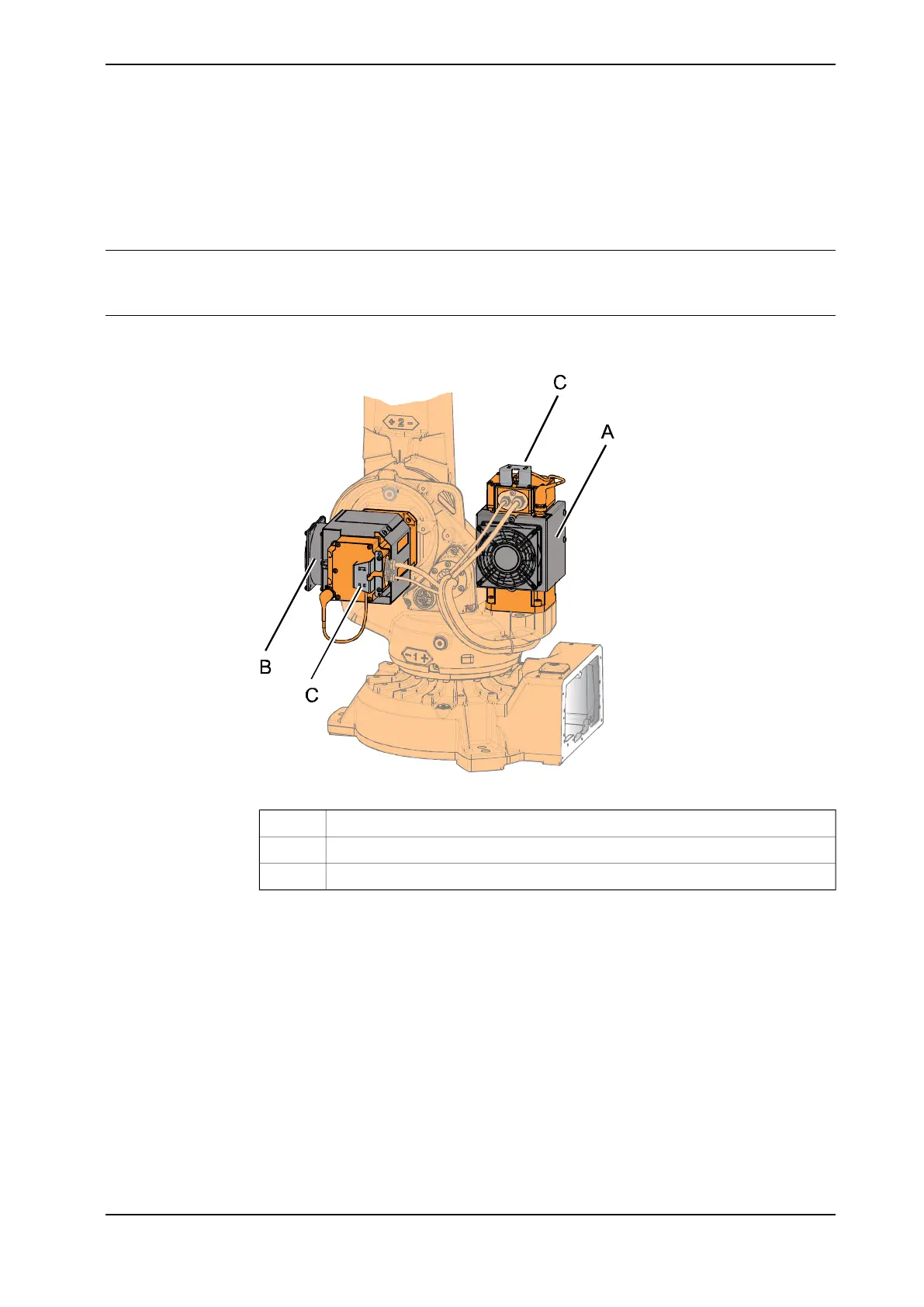

The fans are installed on the motors, axes 1 or 2, as shown in the figure below.
xx0900000232
Fan, motor axis 1A
Fan, motor axis 2B
Protection coverC
Continues on next page
Product manual - IRB 2600 93
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
2 Installation and commissioning
2.5.1 Installation of cooling fan for motors (option)

ABB IRB 2600 Series Specifications

General

Number of Axes	6
Robot Control	IRC5
Mounting	wall
Protection	IP67
Max Speed	Axis 1: 180°/s
Reach	1.65 m / 1.85 m
