NoteAction
xx0900000405

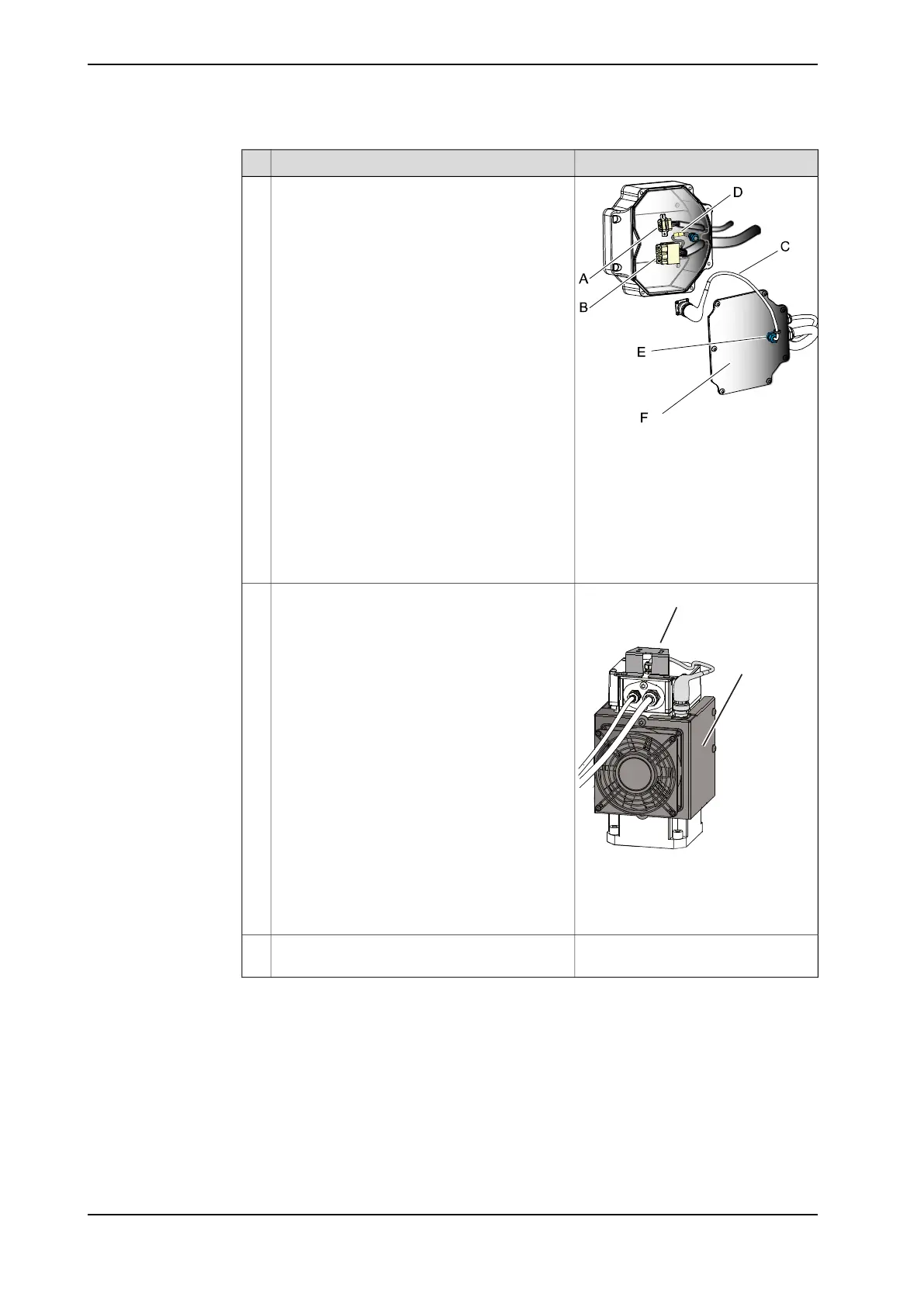

Connect the fan connector to motor and fan.8
Parts:
• A: Connector, signal
• B: Connector, power
• C: Fan cable
• D: Connector, fan
• E: Cable gland
• F: Motor cover, with fan cable
B
A
xx0900000406
After fitting the motor cover, fit the protection
cover using two attachment screws for the
motor cover.
9
Parts:
• A: Protection cover
• B: Fan
Secure the fan cable to the protection cover
with a cable strap.
10
96 Product manual - IRB 2600
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
2 Installation and commissioning
2.5.1 Installation of cooling fan for motors (option)
Continued

ABB IRB 2600 Series Specifications

General

Number of Axes	6
Robot Control	IRC5
Mounting	wall
Protection	IP67
Max Speed	Axis 1: 180°/s
Reach	1.65 m / 1.85 m
