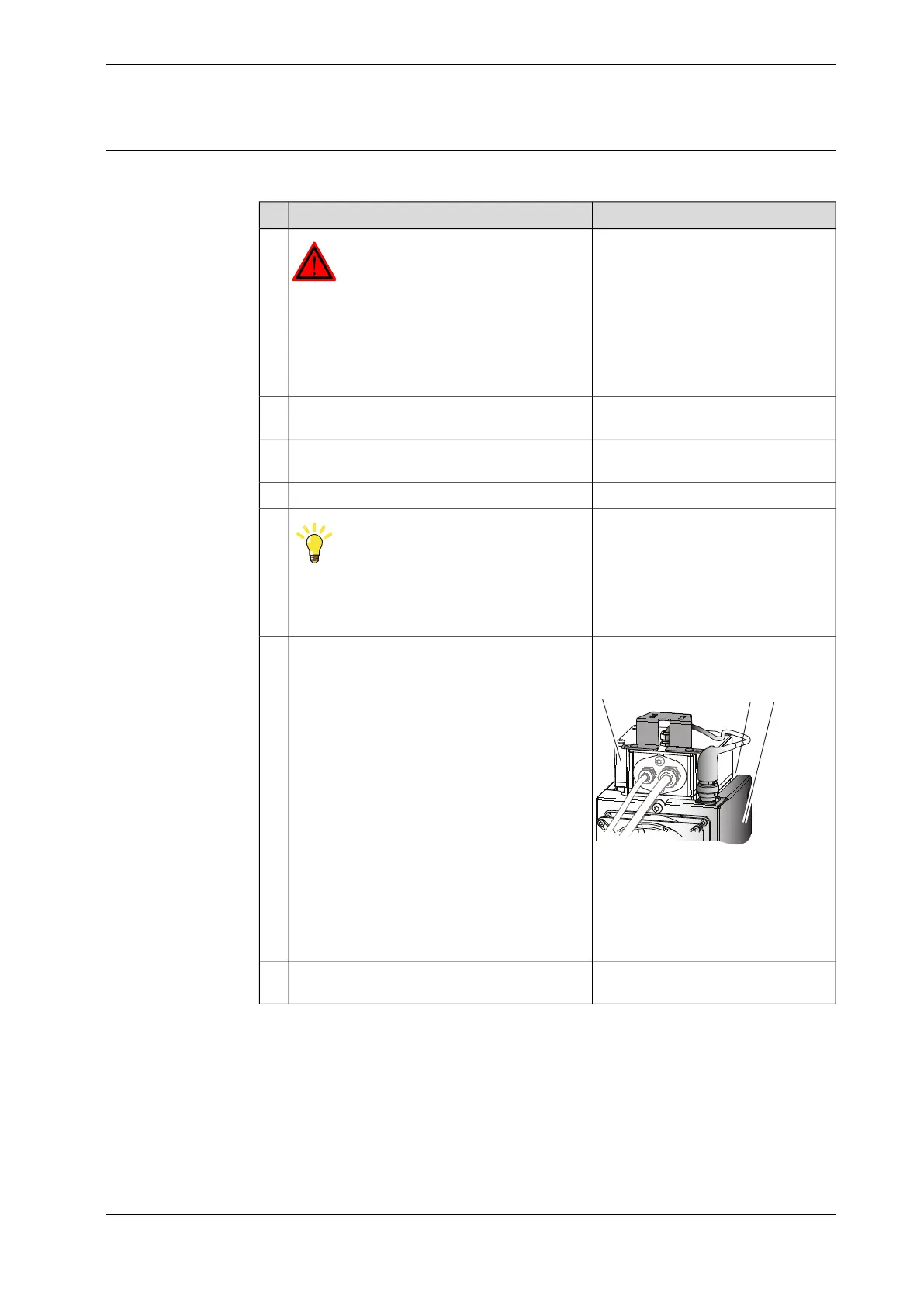

Installation, fan on motor axis 1 and 2
Use this procedure to install the cooling fan on motor axis 1 and 2.
NoteAction
DANGER
Turn off all:
• electric power supply to the robot
• hydraulic pressure supply to the robot
• air pressure supply to the robot
Before entering the robot working area.
1
See the figure in:
• Cooling fan on page 94
Remove the back plate of the fanbox.2
See the figure in:
• Cooling fan on page 94
Place the fanbox around motor axis 1 and 2.3
Refit the back plate of the fanbox.4
See the figure in:
• Cooling fan on page 94
Tip
Only applicable to fan fitted on axis 1!
If there is a lack of space between motor and
robot, it is possible to remove part of the fanbox.
5
Align the upper part of the fan with the
lower part of the connection box.
xx1000000124
Push the fanbox in line with the connection box.6
Parts:
• A: Connection box
• B: Position where the fan shall
be aligned with connection box
• C: Fan
Fit the fanbox with two attachment screws
M6x25.
7
Continues on next page
Product manual - IRB 2600 95
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
2 Installation and commissioning
2.5.1 Installation of cooling fan for motors (option)
Continued
