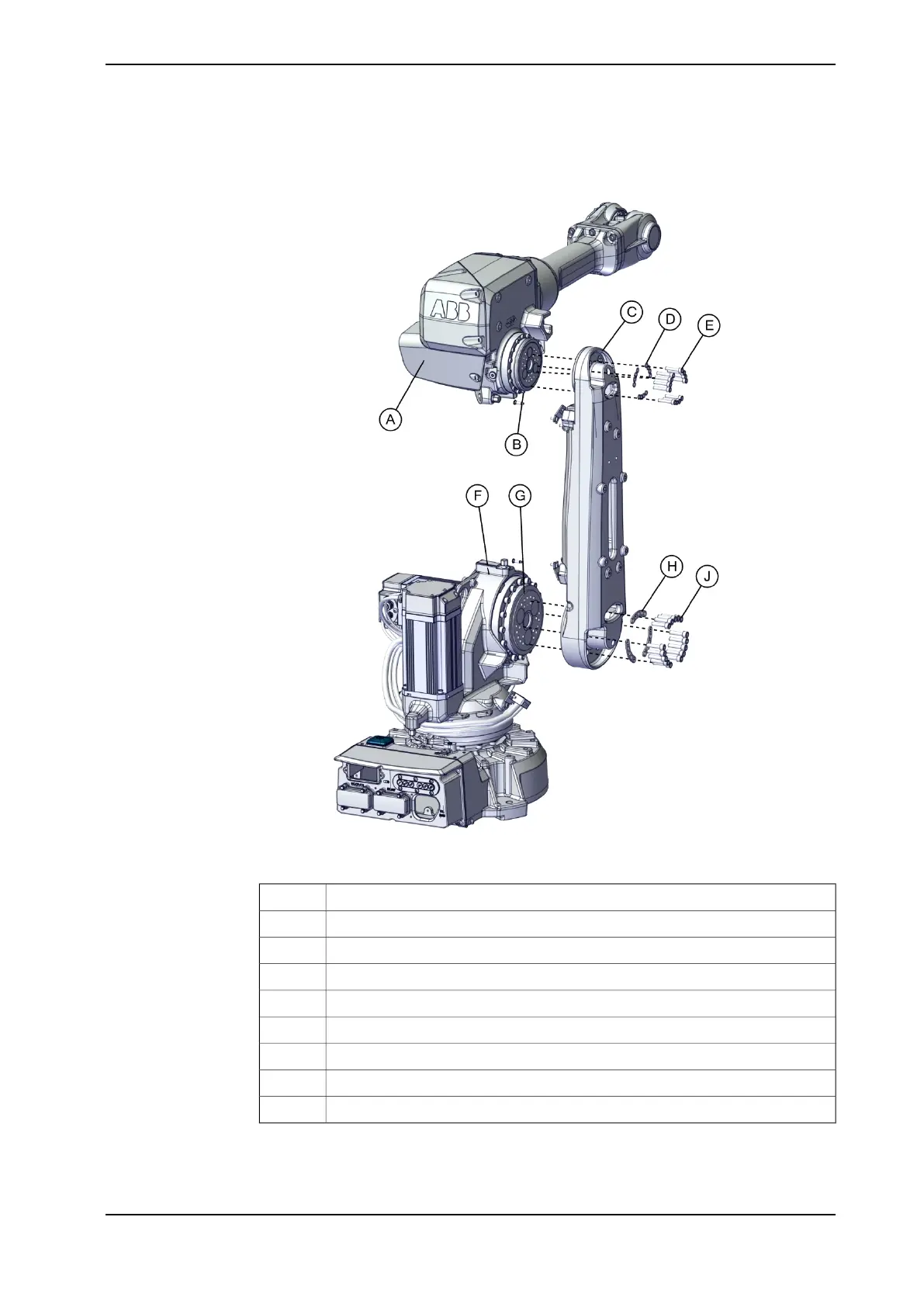

IRB 2600 Type C-20/1.65, IRB 2600 Type C-12/1.65
xx1800000933
Upper armA
Gearbox axis 3B
Lower armC
Washer (12 pcs)D
Attachment screws M8x40 quality Steel 12.9 Gleitmo (12 pcs)E
FrameF
Gearbox axis 2G
Washer (3 pcs)H
Attachment screws M10x40 12.9 Gleitmo 603+Geo500 (15 pcs)J
Continues on next page
Product manual - IRB 2600 279
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.5.1 Replacing the lower arm
Continued
