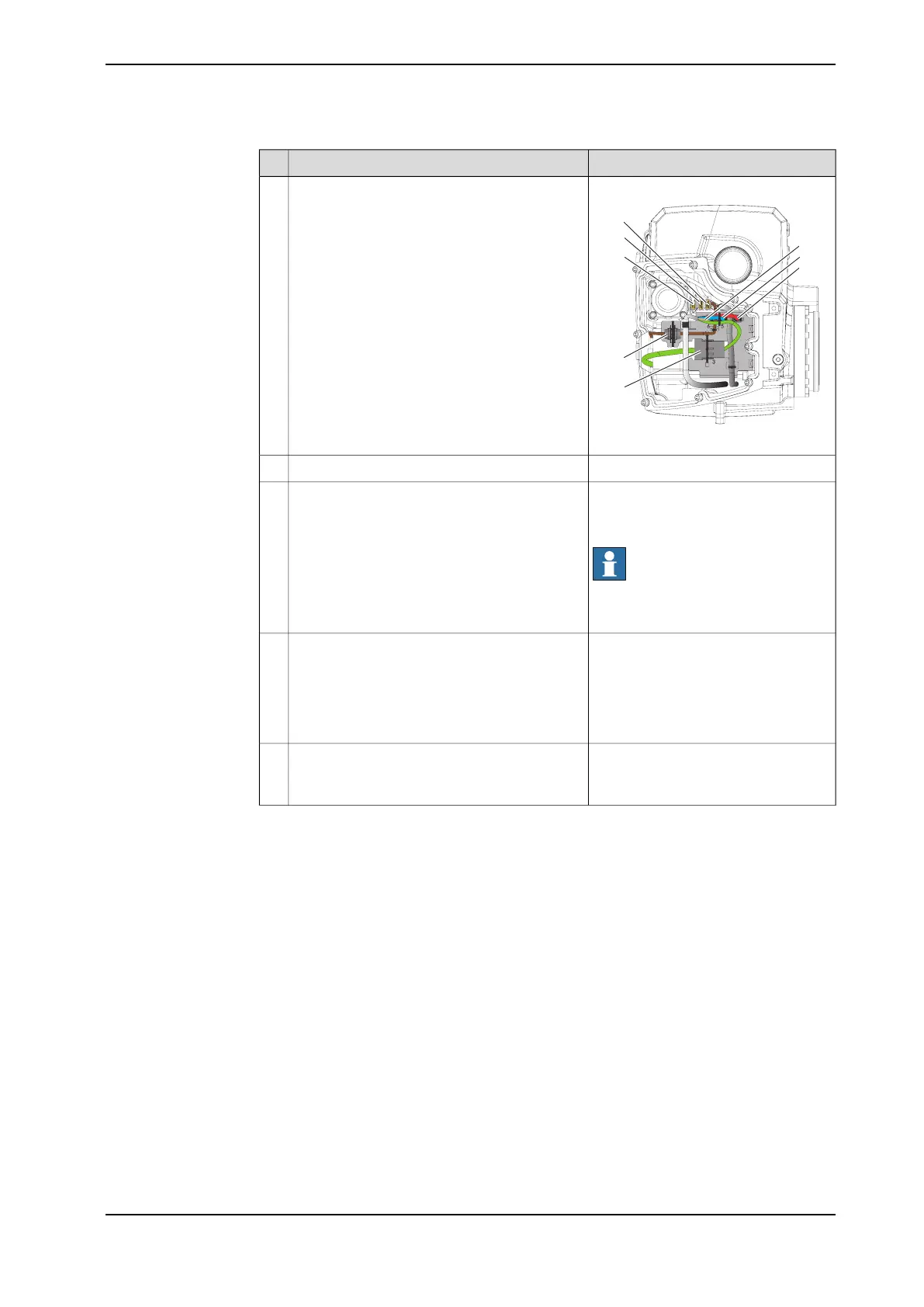

Refit the bracket in the armhouse with its attach-
ment screws.
17
Reconnect the motor cables.18
See the figure in:
• Location of axis-1 and axis-2
motors on page 313
Note
Make sure that the cover is tightly
sealed!
Applicable to motor axes 1 and 2!
Refit the cable gland and motor covers.
Make sure that the o-ring is in place!
19
How to fill oil in the gearbox is de-
scribed in sections:
• Changing the oil, axis-2 gearbox
on page 163
• Changing the oil, axis-3 gearbox
on page 167
Applicable to motors axis 2!
Refill gearbox oil.
20
If the gasket is damaged, it need to be
replaced.
Applicable to motors axes 3, 4, 5 and 6!
Make sure that the gasket on the cover on the
armhouse is intact.
21
Continues on next page
Product manual - IRB 2600 327
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.7.2 Refitting motors
