ABB IRB 2600 Series - Page 411

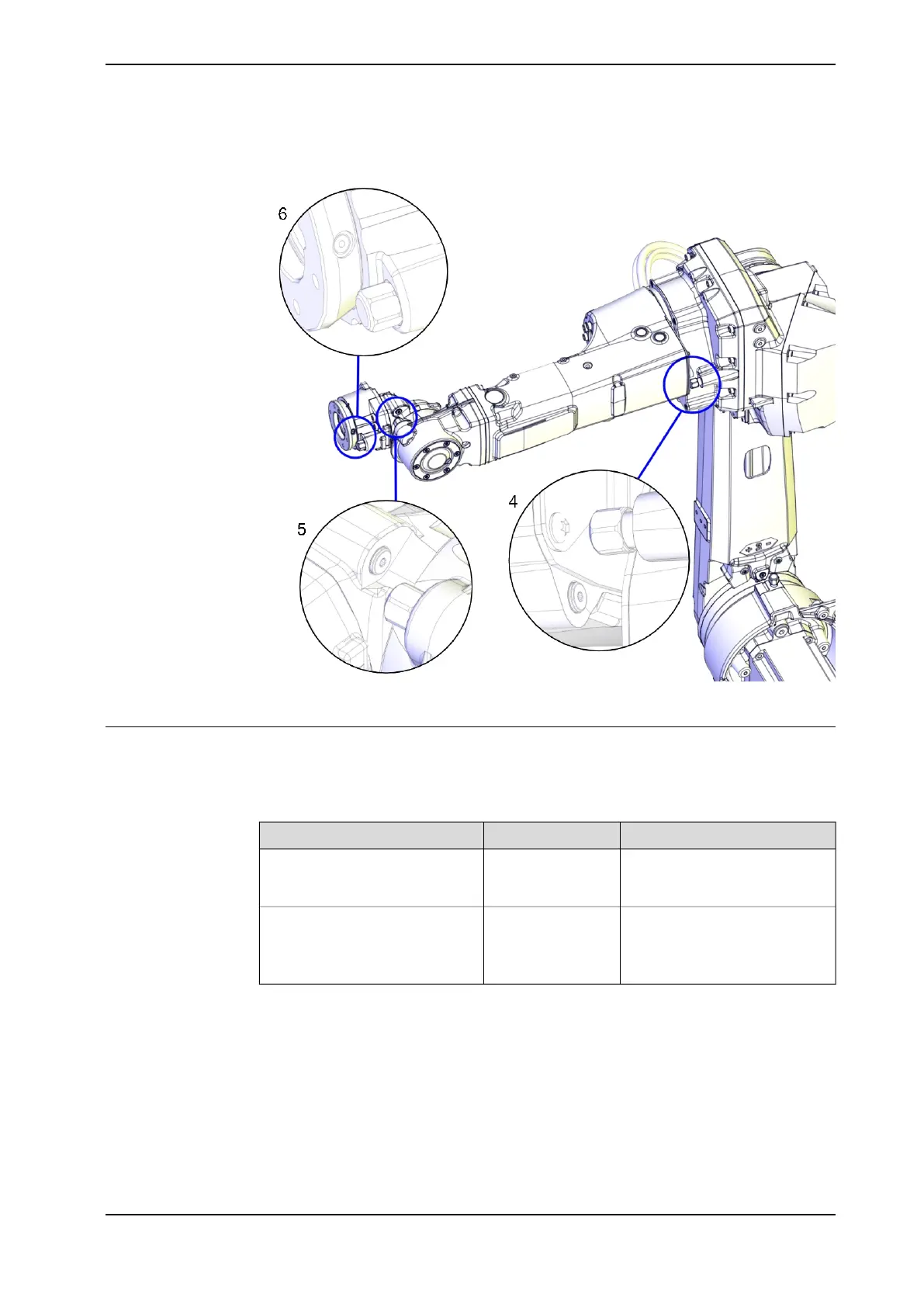

IRB 2600ID
xx1600000523
Spare parts
When calibration is not being performed, a protective cover and an o-ring should
always be installed on the fixed calibration pin as well as a protective plug, included
a sealing, in the bushing. Replace damaged parts with new, if needed.
NoteArticle numberSpare part
Contains replacement calibration
pin covers and protective plugs
for the bushing.
3HAC059487-001Protection cover and plug set
Replace if damaged or missing.3HAC057676-001
(IRB 2600ID)
Protective plug on turning disc
3HAC057511-001
(IRB 2600)
Product manual - IRB 2600 411
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
5 Calibration
5.4.3 Installation locations for the calibration tools
Continued
