Fitting equipment on base and frame

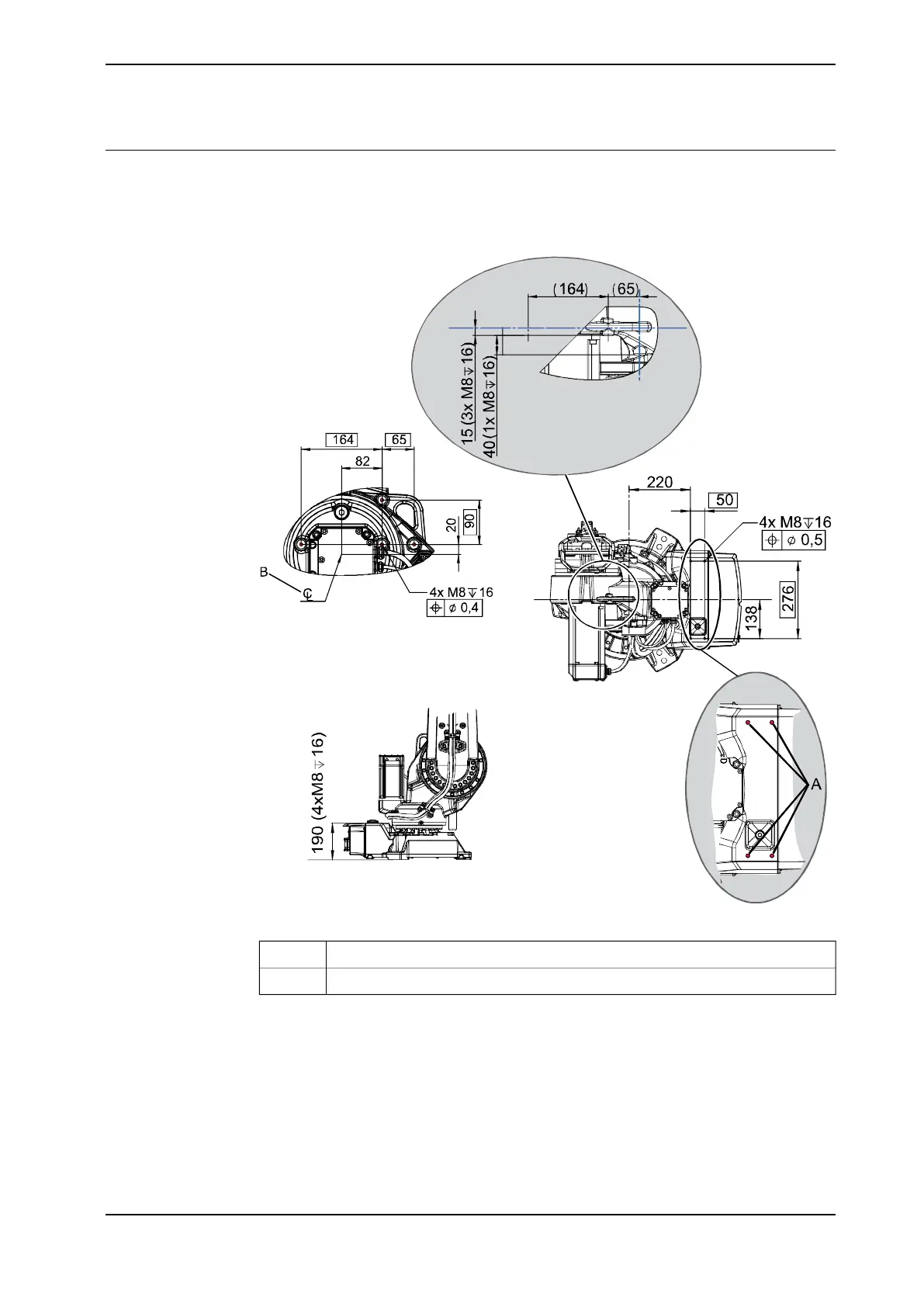

The illustrations show the fitting holes available for fitting extra equipment on the
base and frame of the robot.
IRB 2600 Standard & ID.
xx0900000227
Attachment holes on baseA
Center axis 2B
Continues on next page
Product manual - IRB 2600 81
3HAC035504-001 Revision: Q
